A tri-clamp hose barb is a specialized adapter used to securely connect soft, flexible tubing or hoses to rigid sanitary...
Inquire
1. Brief Introduction of Products:

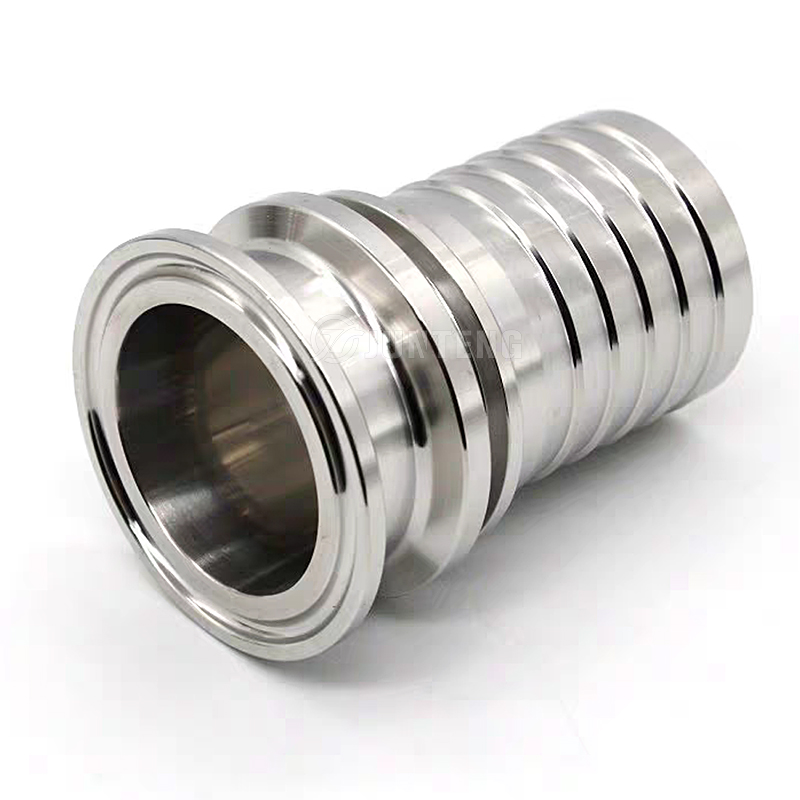

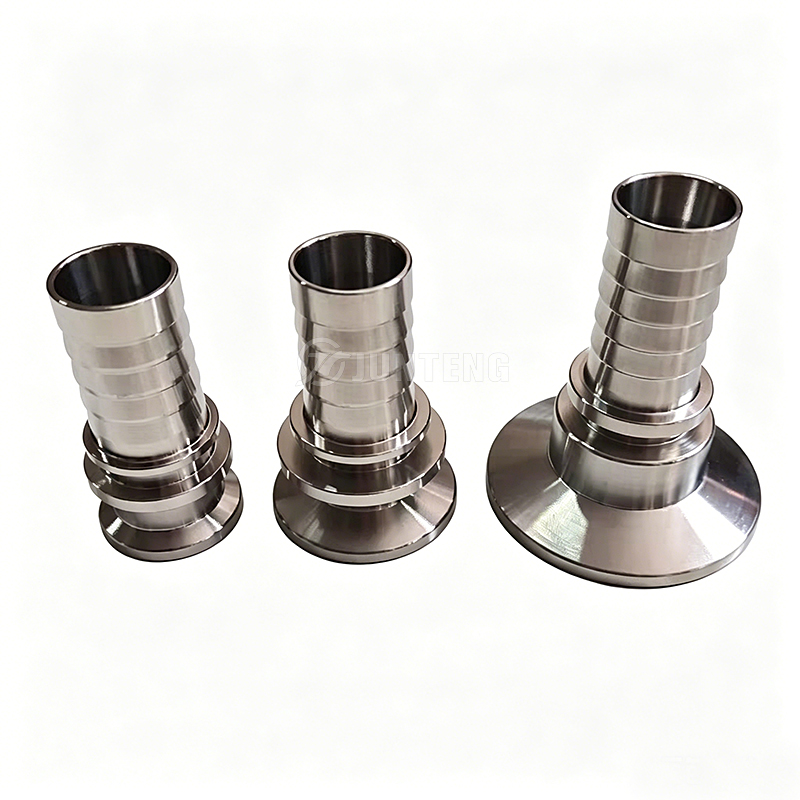

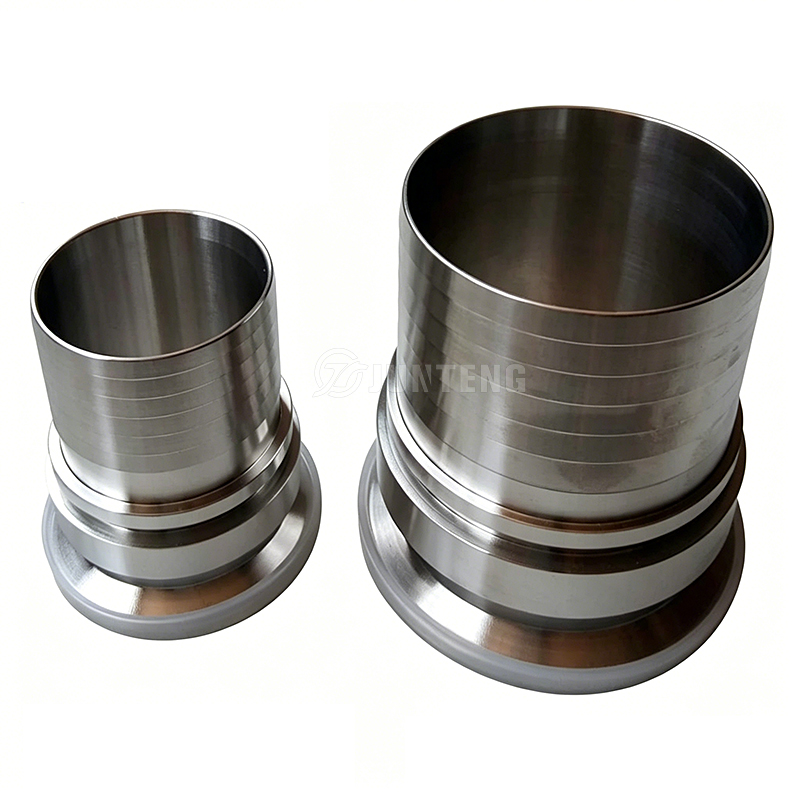

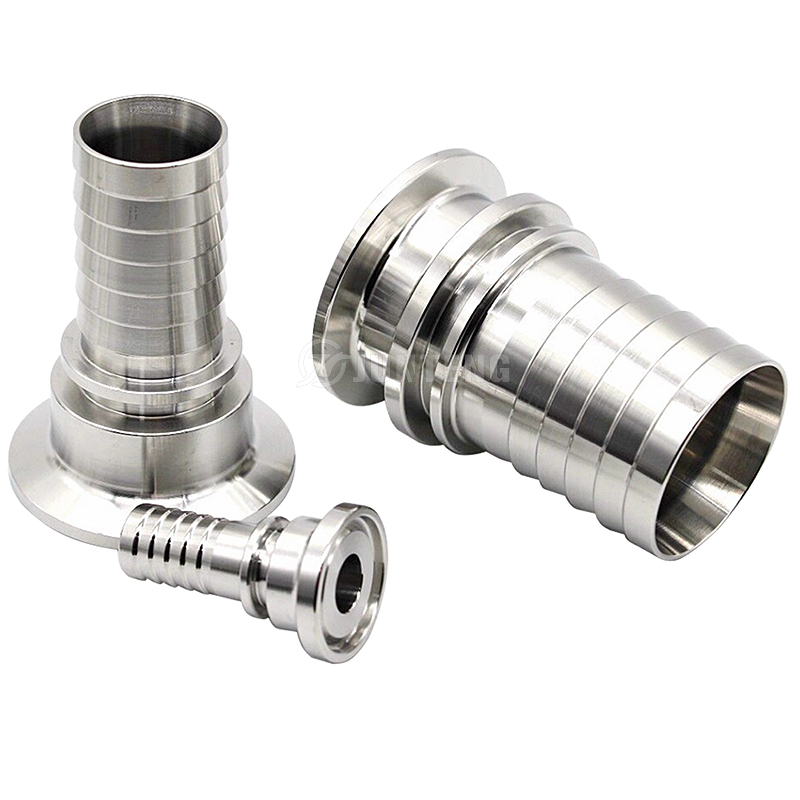

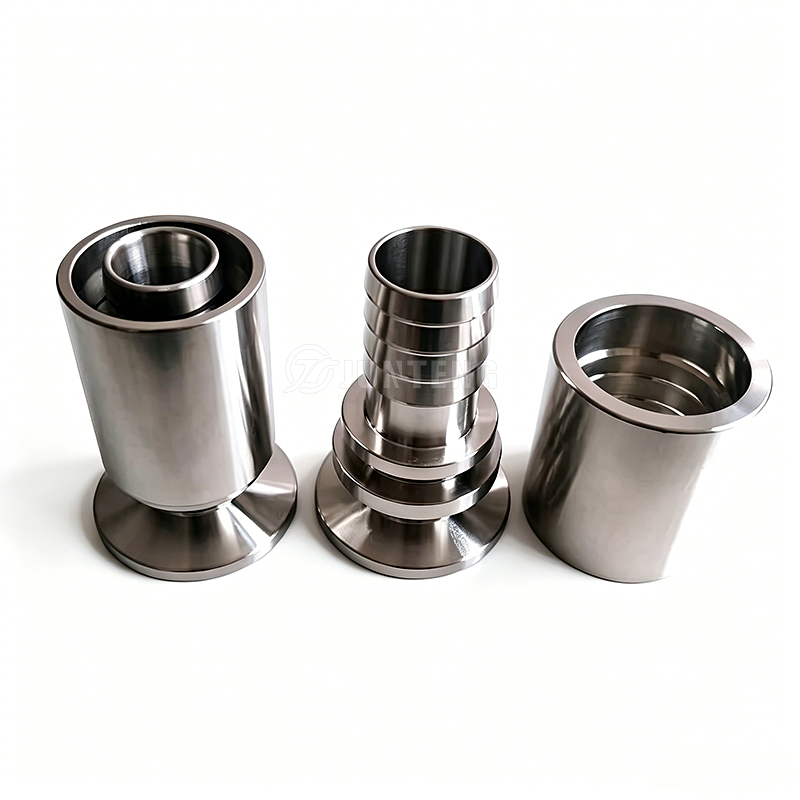

A tri-clamp and snap joint hose barb is a hybrid fitting used to transition between a sanitary system and a flexible hose. It features a barbed end for push-on tubing on one side and a quick-release or flange end on the other, making it a fast, leak-free connection for dairy, brewing, and chemical setups.
The key Components are included:
• Hose Barb: The ridged, grooved end where a flexible hose or silicone tubing is pushed on. The barbs bite into the inner wall of the tube to provide a secure grip, though external hose clamps are often applied for higher-pressure uses.
• Tri-Clamp / Snap Joint End: Instead of a traditional threaded end, this side features a flat, flanged face (a ferrule). A matching flange is pressed against it with an elastomeric or silicone gasket in between. A mechanical clamp is then snapped or tightened around the joint to pull the faces together, creating a highly sanitary, crevice-free seal.

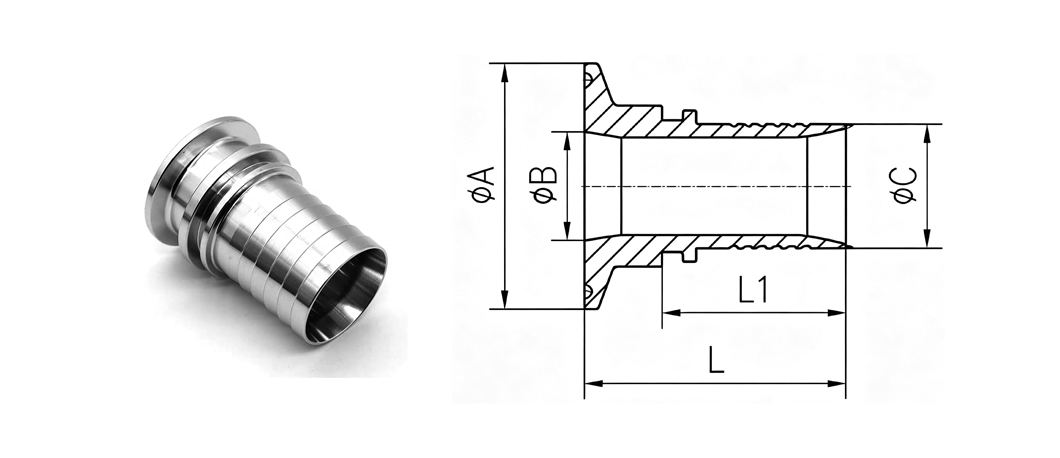

2. Technical Specification:
| Size | A | B | C | L1 | L |
| 1/4" | 25.2 | 3 | 6.35 | 24 | 35 |
| 1/4" | 34 | 3 | 6.35 | 24 | 35 |
| 1/4" | 50.5 | 3 | 6.35 | 24 | 35 |
| 3/8" | 25.2 | 5 | 9.53 | 29 | 40 |
| 3/8" | 34 | 5 | 9.53 | 29 | 40 |
| 3/8" | 50.5 | 5 | 9.53 | 29 | 40 |
| 1/2" | 25.2 | 9.4 | 12.7 | 29 | 40 |
| 1/2" | 34 | 9.4 | 12.7 | 29 | 45 |
| 1/2" | 50.5 | 9.4 | 12.7 | 29 | 45 |
| 5/8" | 25.2 | 12.58 | 15.88 | 29 | 45 |
| 5/8" | 34 | 12.58 | 15.88 | 29 | 45 |
| 5/8" | 50.5 | 12.58 | 15.88 | 29 | 45 |
| 3/4" | 25.2 | 15.75 | 19.05 | 29 | 45 |
| 3/4" | 34 | 15.75 | 19.05 | 29 | 45 |
| 3/4" | 50.5 | 15.75 | 19.05 | 29 | 45 |
| 1" | 50.5 | 22.1 | 25.4 | 49 | 67 |
| 1.25" | 50.5 | 28.45 | 31.75 | 49 | 67 |
| 1.5" | 50.5 | 34.8 | 38.1 | 49 | 69 |
| 1.75" | 64 | 41.15 | 44.45 | 49 | 69 |
| 2" | 64 | 47.5 | 50.8 | 55.5 | 77.5 |
| 2.5" | 77.5 | 60.2 | 63.5 | 69.5 | 93.5 |
| 3" | 91 | 72.9 | 76.2 | 83.5 | 107.5 |
| 3.5" | 106 | 85.6 | 88.9 | 83.5 | 107.5 |
| 4" | 119 | 97.4 | 101.6 | 88 | 112 |
This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!
3. Key Applications and Use Cases:
This type of fitting is popular in environments where equipment requires frequent cleaning, assembly, and breakdown.
• Food & Beverage: Widely used in breweries, wineries, and dairy farms for transferring liquids through flexible hoses.
• Pharmaceutical & Biotech: Preferred in clean-in-place (CIP) and steam-in-place (SIP) processes where hygiene is critical.
• Homebrewing & Distilling: Used to connect pumps, fermenters, or stills to silicone or braided vinyl hoses.
