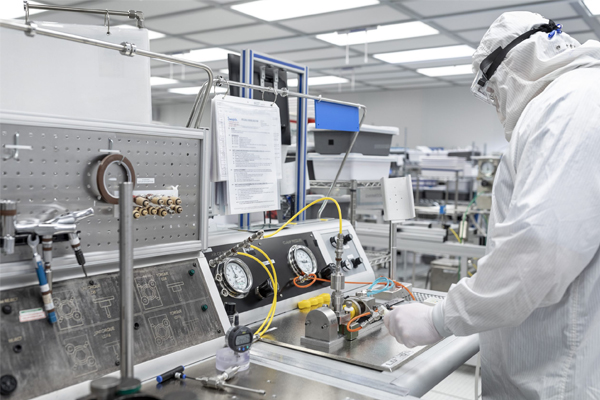

Semiconductor

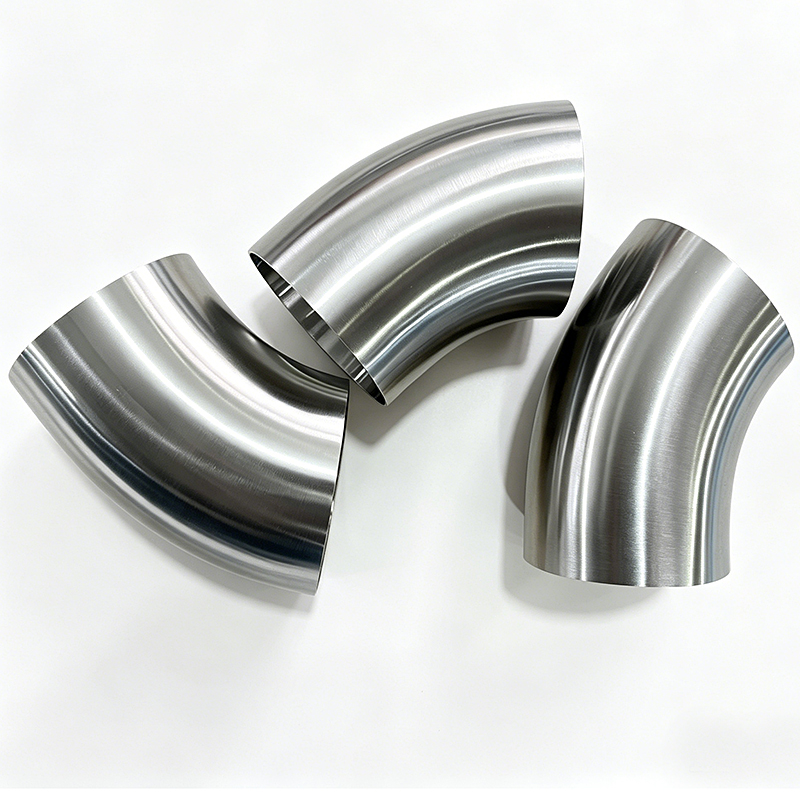

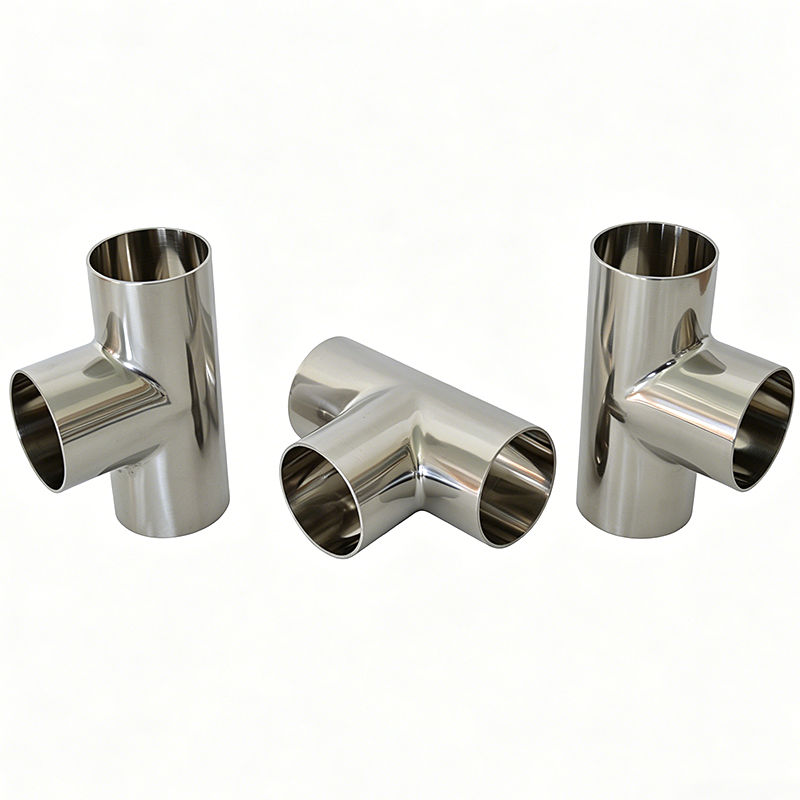

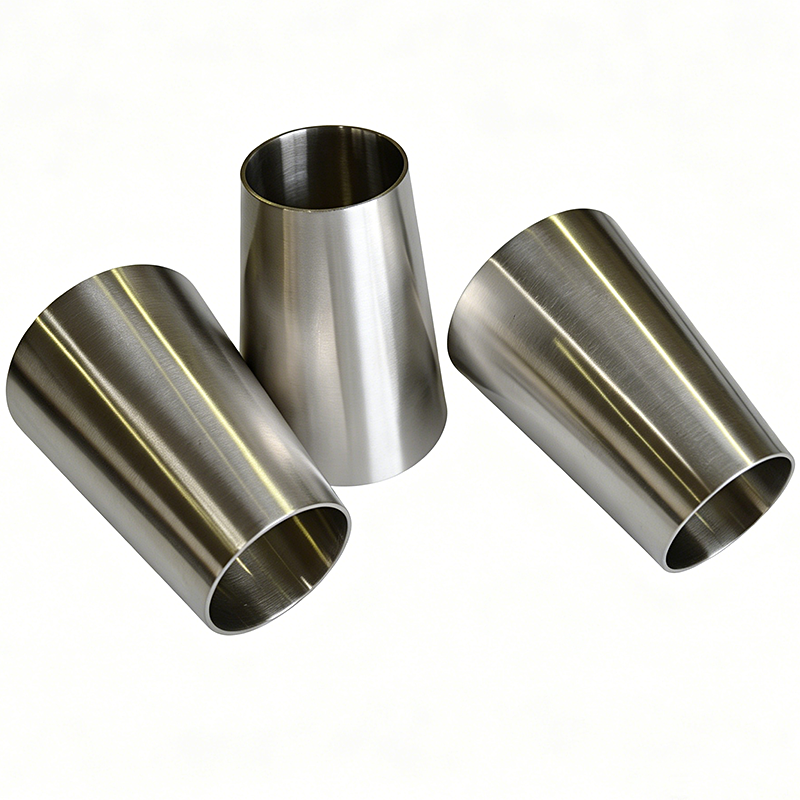

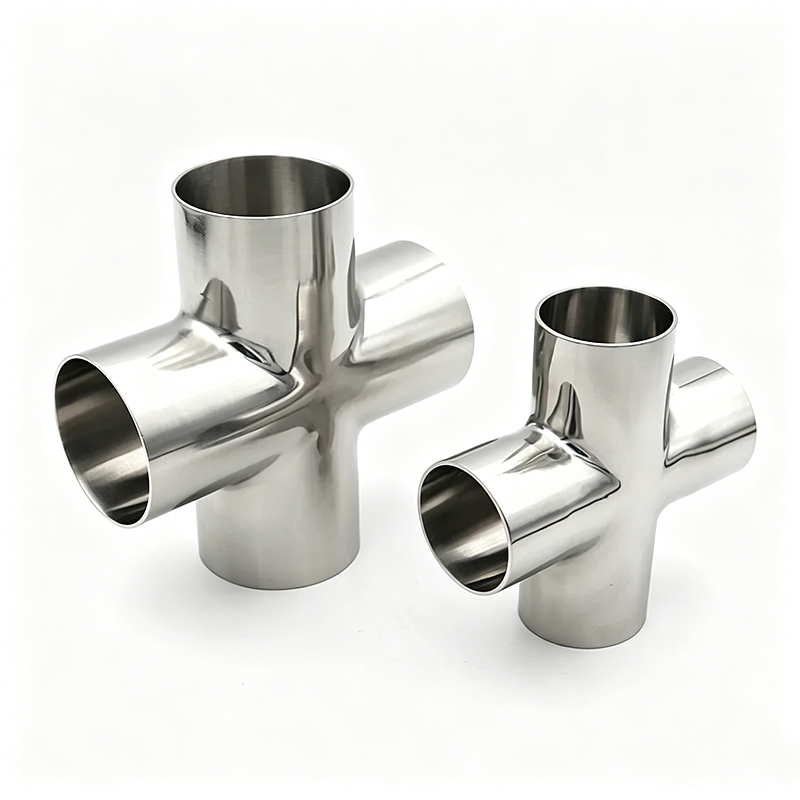

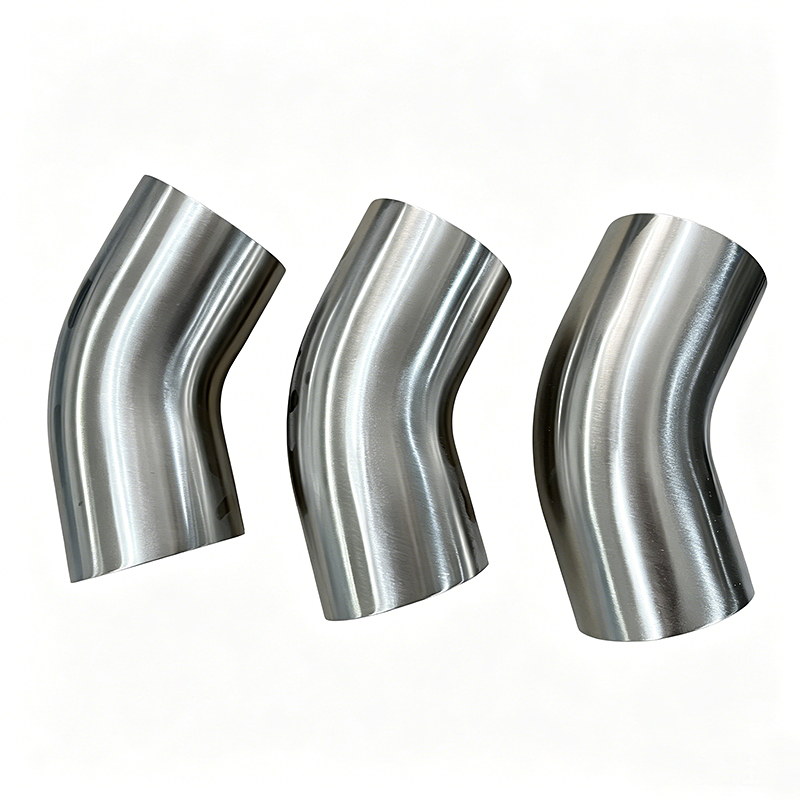

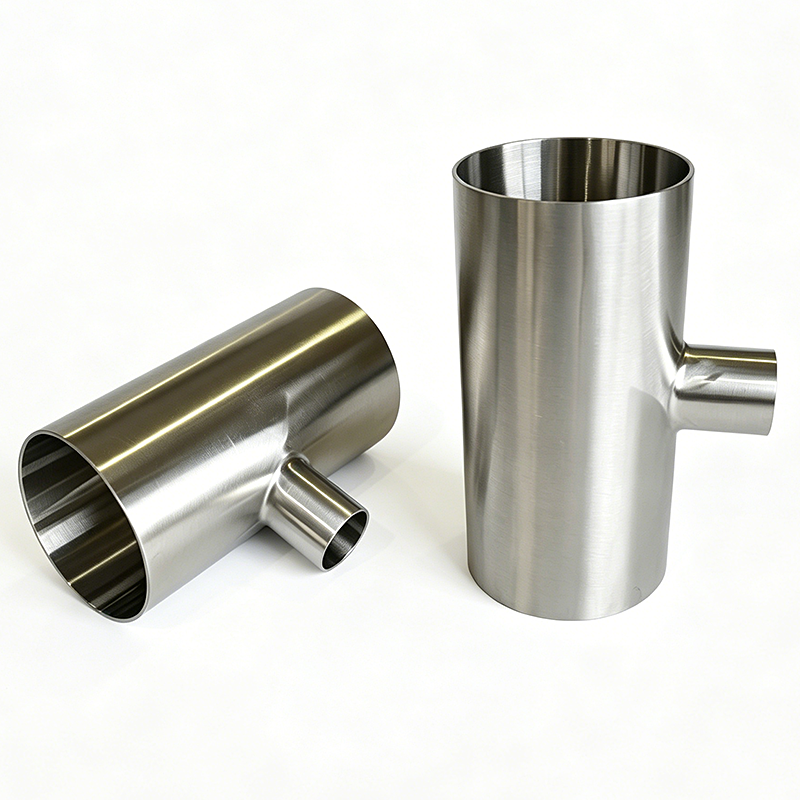

The semiconductor industry operates at the frontier of precision, where even nanoscale contaminants or trace impurities can render entire batches of advanced chips (3nm/5nm nodes) useless. From ultra-pure process gases to corrosive etchants and high-purity water, every fluid used in wafer fabrication demands contamination-free delivery—making sanitary pipe fittings critical to maintaining yield, device performance, and regulatory compliance. These specialized components are engineered to eliminate particle shedding, resist aggressive media, and uphold the ultra-high purity standards that define modern semiconductor manufacturing.

Material selection is dictated by extreme purity and corrosion resistance needs.

Electropolished (EP) AISI 316L stainless steel (carbon ≤0.03%, molybdenum ≥2.5%) is the industry benchmark, offering exceptional inertness and resistance to corrosive gases (e.g., NF₃, ClF₃) and chemicals used in etching/cleaning processes . For specialized applications:

· EP 316L Mod Alloys: Enhance resistance to pitting corrosion from chloride-based chemistries, critical for wet etch processes.

· PTFE/PFA-Lined Fittings: Ideal for transferring aggressive acids (e.g., hydrofluoric acid) or oxygen-sensitive media, preventing chemical leaching and contamination .

All materials require ultra-smooth internal finishes: EP-grade fittings meet ISO 14644-1 Class 1 cleanroom standards with Ra ≤0.2 µm (some custom grades reach Ra ≤0.13 µm), while (BA) fittings (Ra ≤0.8 µm) are used for non-critical auxiliary lines .
