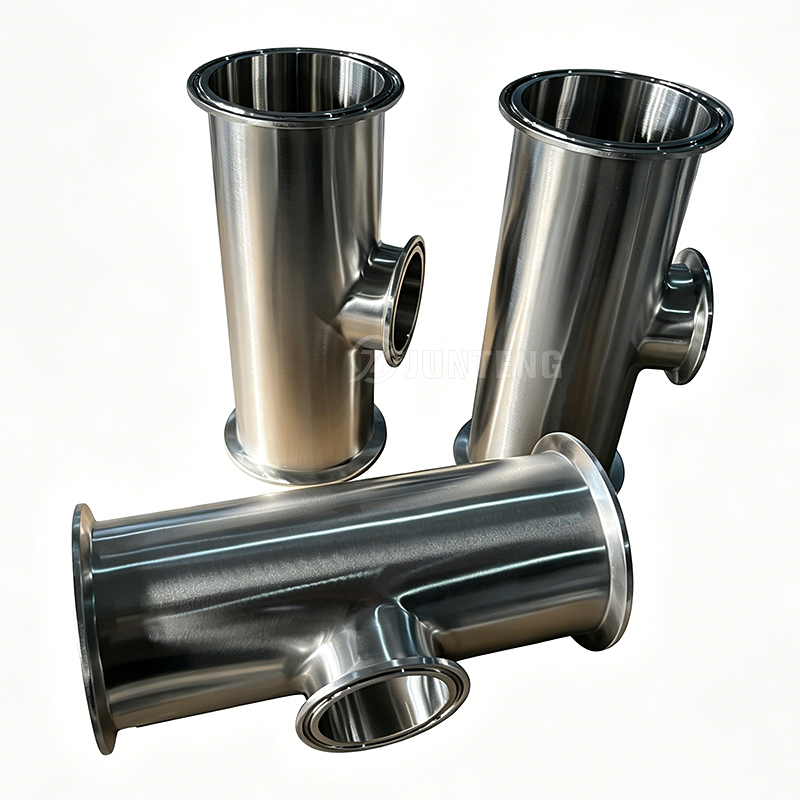

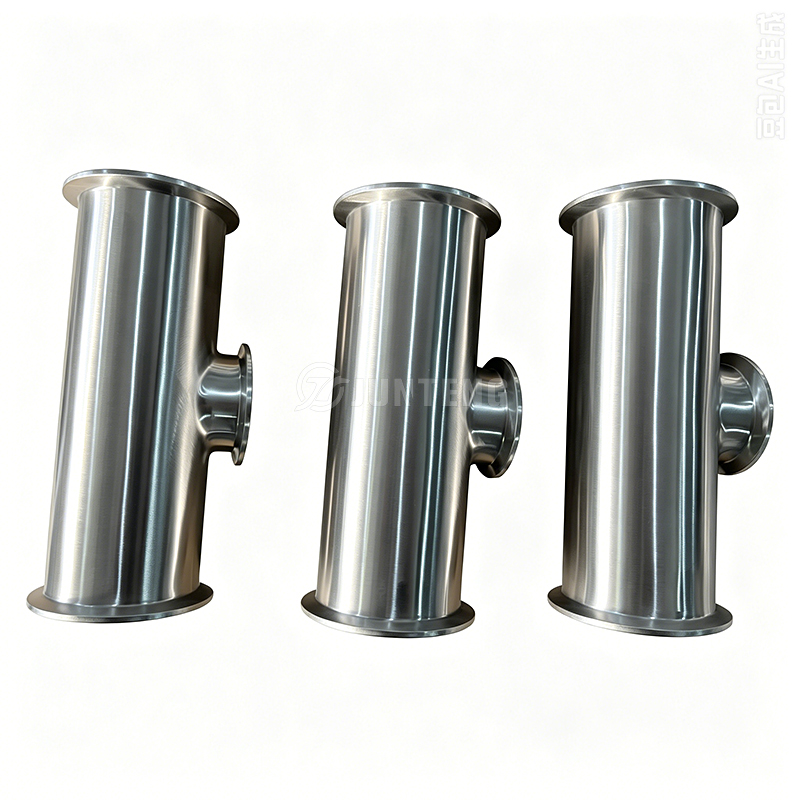

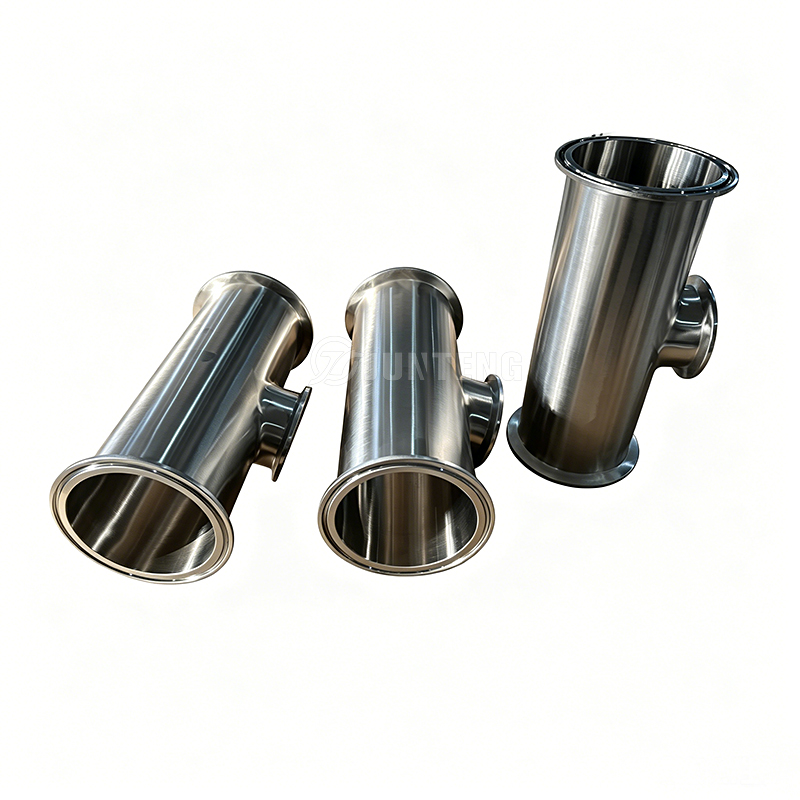

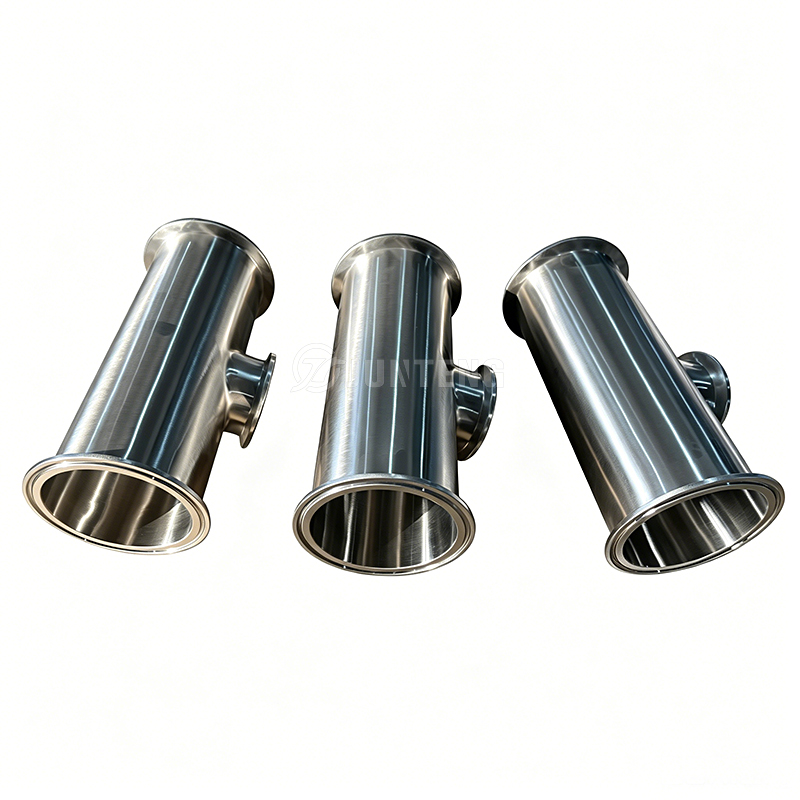

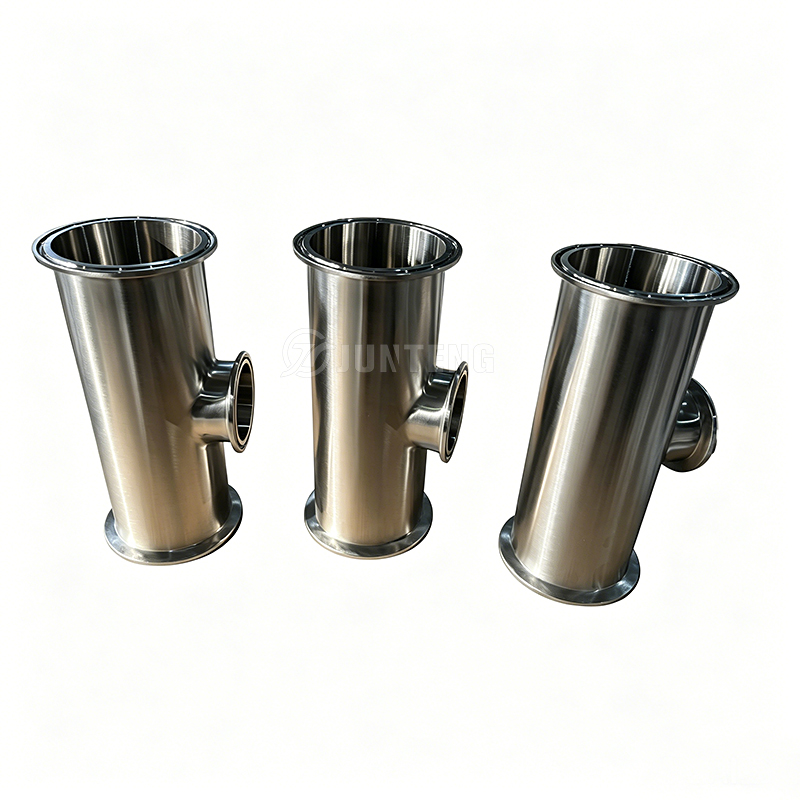

Biopharm Bpe Sanitary B7mps Series 316L Stainless Short Outlet Clamp Tees

1. Brief Introduction of Products:

A BPE short outlet tri-clamp tee (such as the S7MPS or S7RMPS) is a high-purity, stainless steel sanitary fitting used in pharmaceutical and bioprocessing systems to join lines at 90 degrees. It features a shortened branch outlet designed to minimize "dead leg" (fluid stagnation areas),, ensuring better drainage and enhanced clean-in-place (CIP/SIP) efficiency.

Key Features & Specifications:

• Design: T-shaped fitting with a reduced-length branch (short outlet) to limit dead space.

• Connections: Tri-clamp ends on all ports allow for quick assembly, disassembly, and a leak-proof seal.

• Material: Constructed from high-quality 316L stainless steel for superior corrosion resistance.

• Compliance & Finish: Meets ASME BPE standards, generally with a polished internal surface (e.g., SF1 20Ra or SF4 15Ra) to prevent bacterial growth.

• Applications: Frequently used in biopharma, cosmetic, and food processing industries where sanitation is critical.

Common variations include reducing tees (S7RMPS), where the branch outlet is smaller than the main run.

2. Technical Specification:

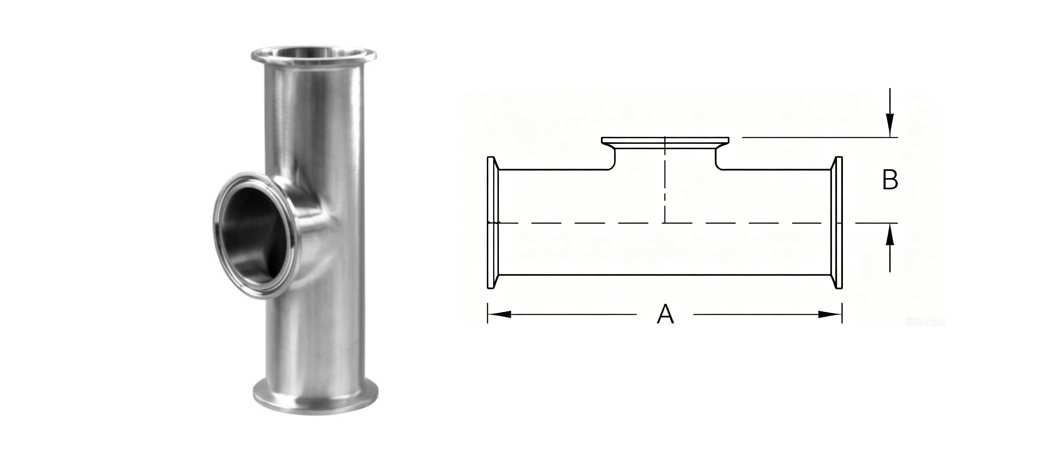

     B7MPS Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

B7MPS tri-clamp short tees (also known as instrument tees) are sanitary pipe fittings designed to integrate sensors, gauges, and valves into process lines. They are heavily used in hygienic environments where frequent cleaning and sterilization are required.

Core Industry Uses

Because they minimize dead legs (where bacteria can harbor) and feature polished, highly durable surfaces, they are standard in:

• Food & Beverage: Dairy processing, juice, and brewing lines.

• Pharmaceutical & Biotech: Ultra-pure water systems, sterile fluid transfers, and medical compound manufacturing.
