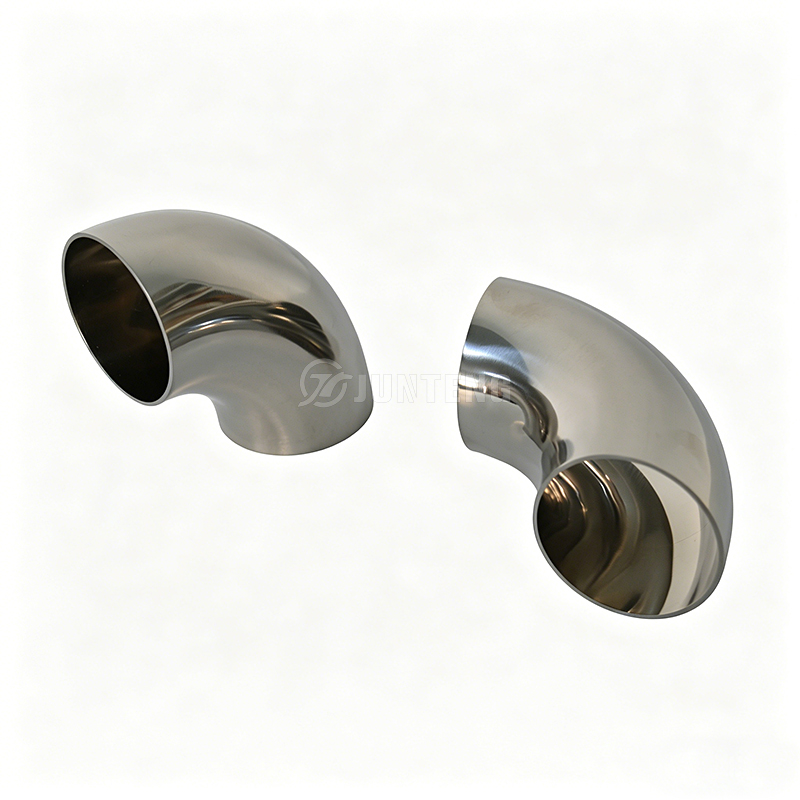

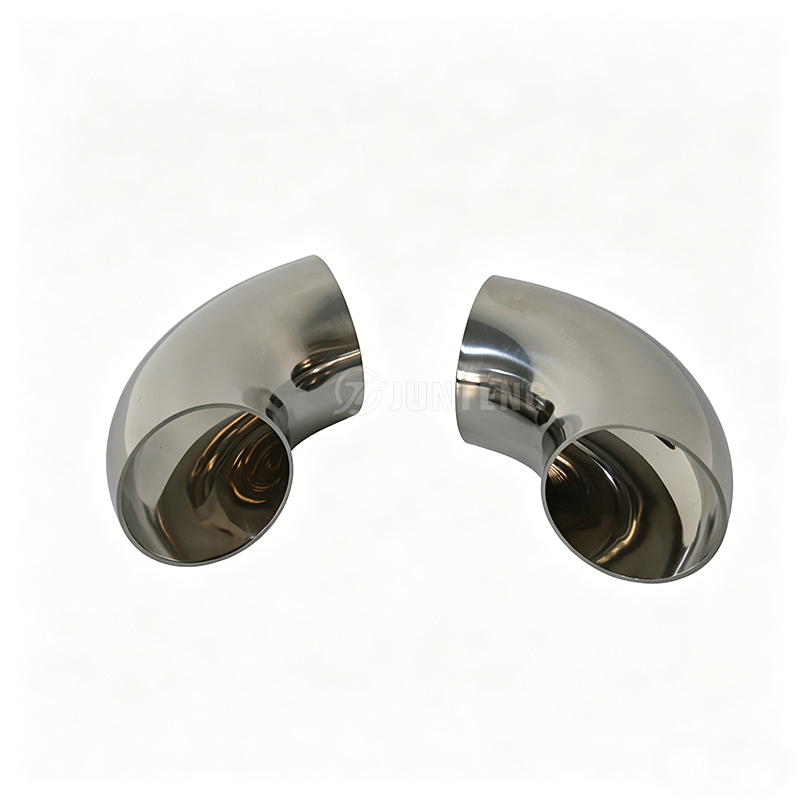

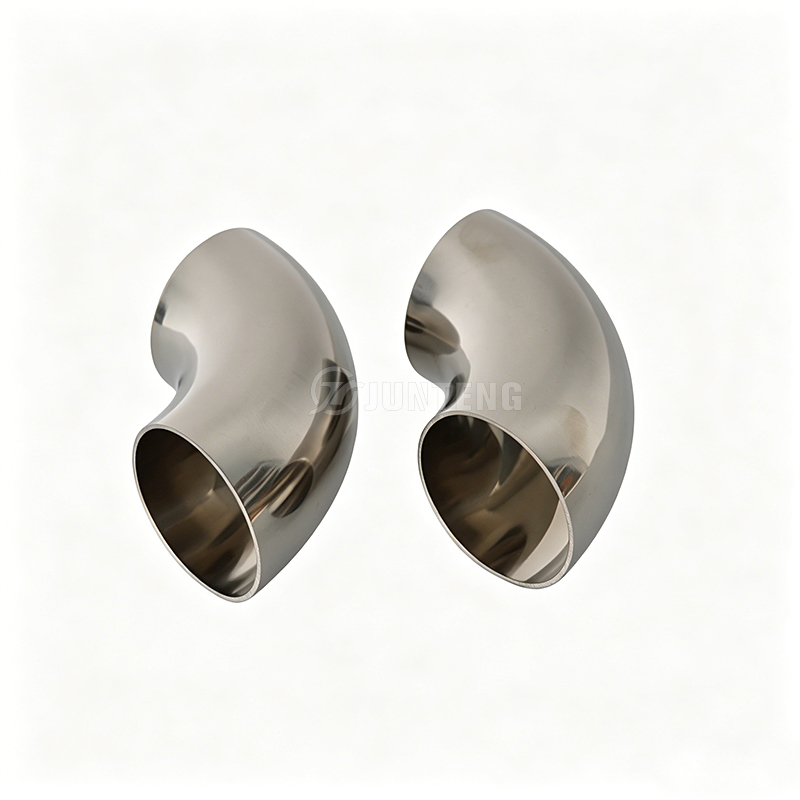

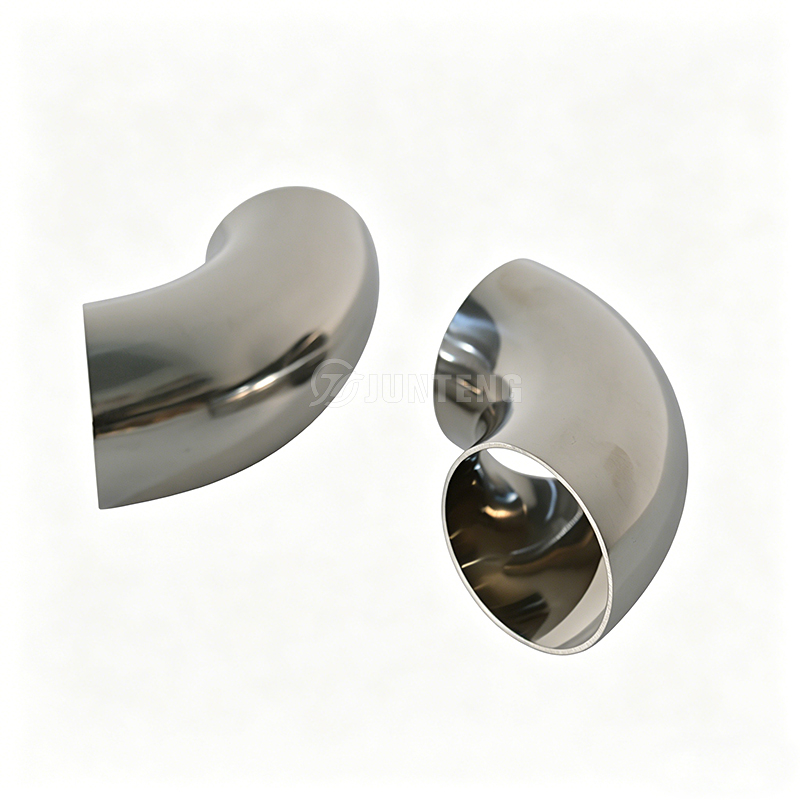

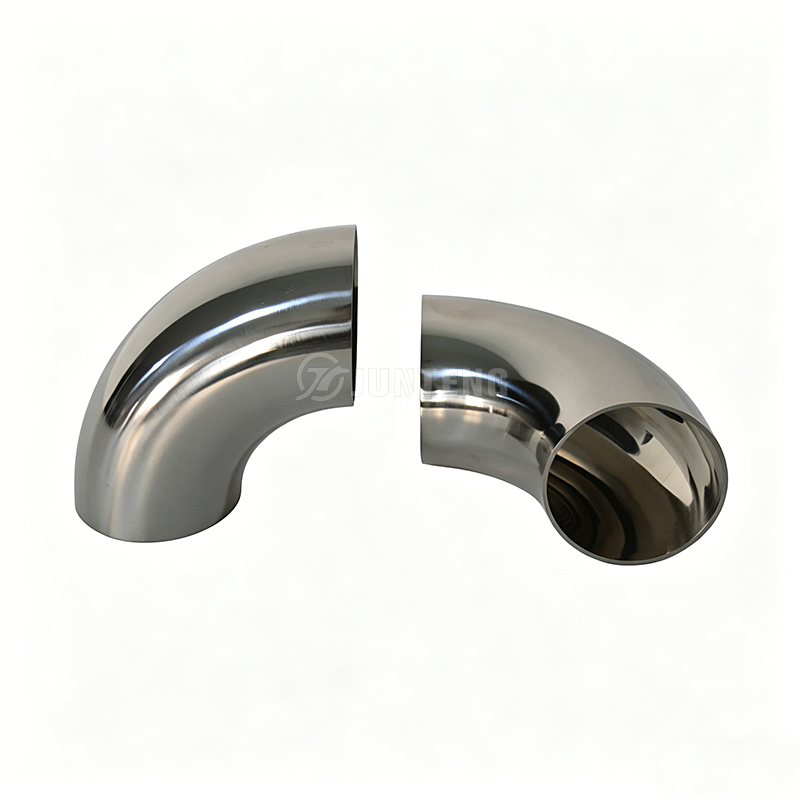

Food Grade Sanitary Butt Weld Pipe Fitting Stainless Steel 90 Degree Elbow

1. Brief Introduction of Products:

Butt weld elbows (45°, 90°, or 180°) are used to change direction in high-pressure or high-temperature piping systems, offering a strong, seamless, and permanent, leak-free joint. They are crucial in industries requiring durable, efficient fluid transport, including oil & gas, chemical processing, power generation, and wastewater treatment. Key advantages of Butt Weld Elbows:

1. High Strength and Reliability: Because they are welded directly to the pipe (full penetration), butt weld joints are incredibly robust, creating a single, continuous, and permanent structure.

2. Leak-Proof Integrity: They eliminate the need for gaskets or threads, providing a leak-resistant seal that is ideal for transporting volatile or hazardous fluids.

3. Improved Flow Characteristics: The smooth internal surface allows for a seamless flow, reducing turbulence, minimizing pressure drops, and preventing material buildup.

4. Durability in Harsh Environments: They are superior in handling extreme pressure, high temperatures, and corrosive or erosive environments compared to socket weld or threaded fittings.

5. Cost-Effectiveness over Time: While they require skilled labor for installation, their long-lasting performance and lack of need for regular maintenance or tightening make them highly cost-effective.

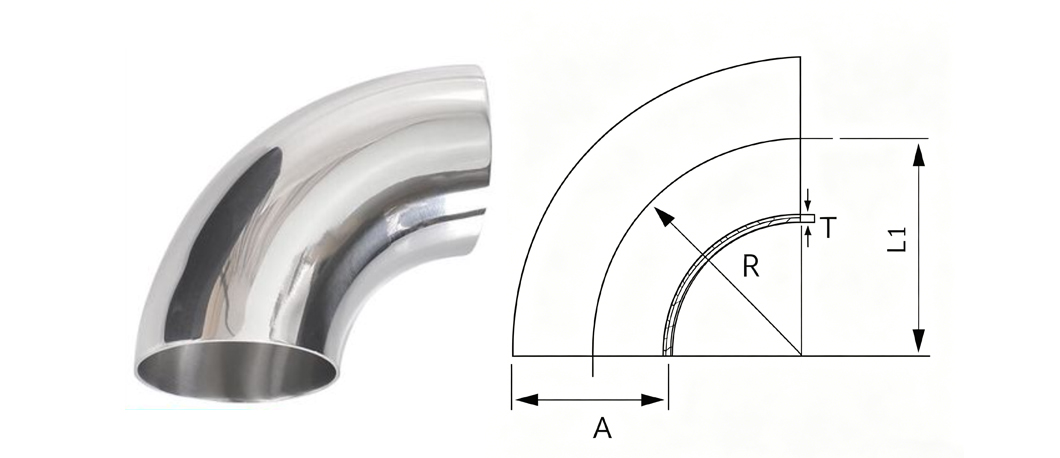

2. Technical Specification:

     3A Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

1. Direction Changes: They allow pipelines to change direction by 45, 90, or 180 degrees with minimal turbulence or pressure drop, supporting high-velocity flows.

2. High-Pressure Piping: Due to their butt-welded nature (bevelled edges fused together), they provide superior strength in critical, high-pressure, and high-temperature systems.

3. Industrial Infrastructure: Essential in petroleum refineries, chemical plants, and natural gas systems to ensure safe transport of volatile materials.

4. System Integrity: Used in Power Generation (steam pipelines) and water treatment facilities to prevent leaks and ensure long-term durability.

5. Fluid Handling: Common in sanitary applications within food and beverage industries to maintain sanitary, contamination-free flow.
