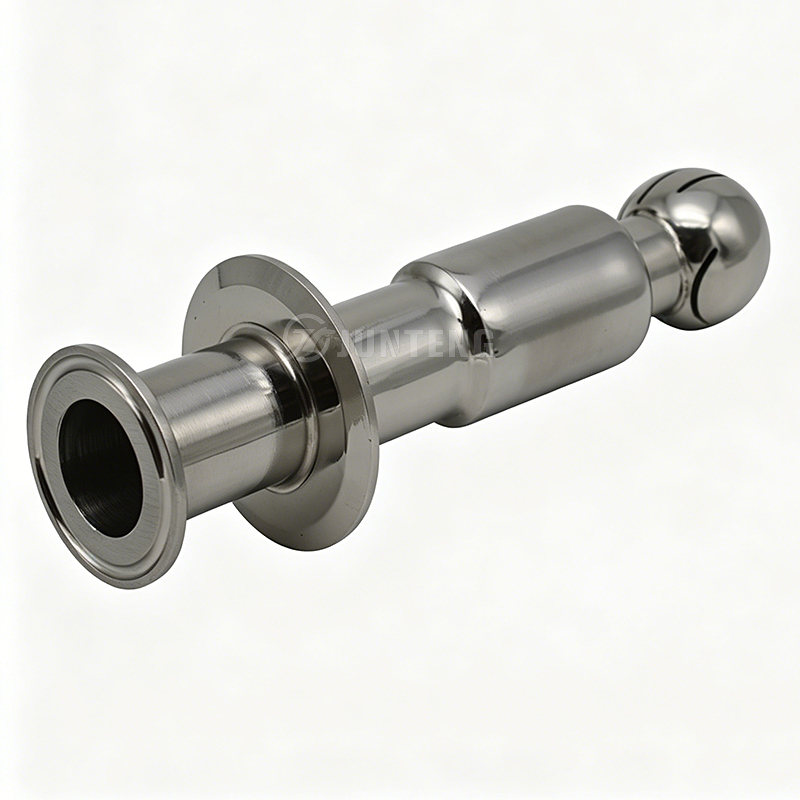

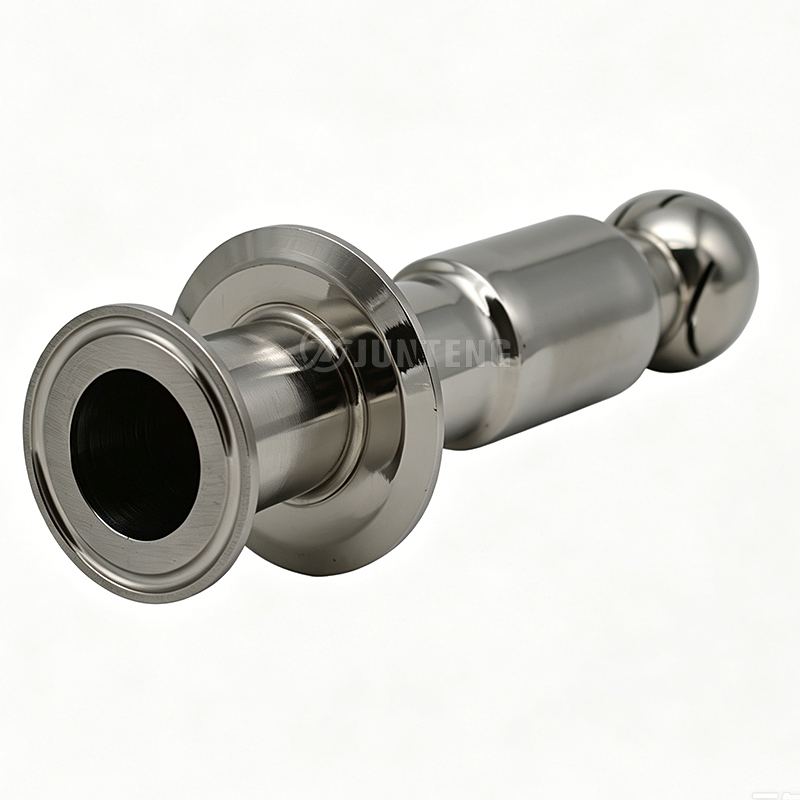

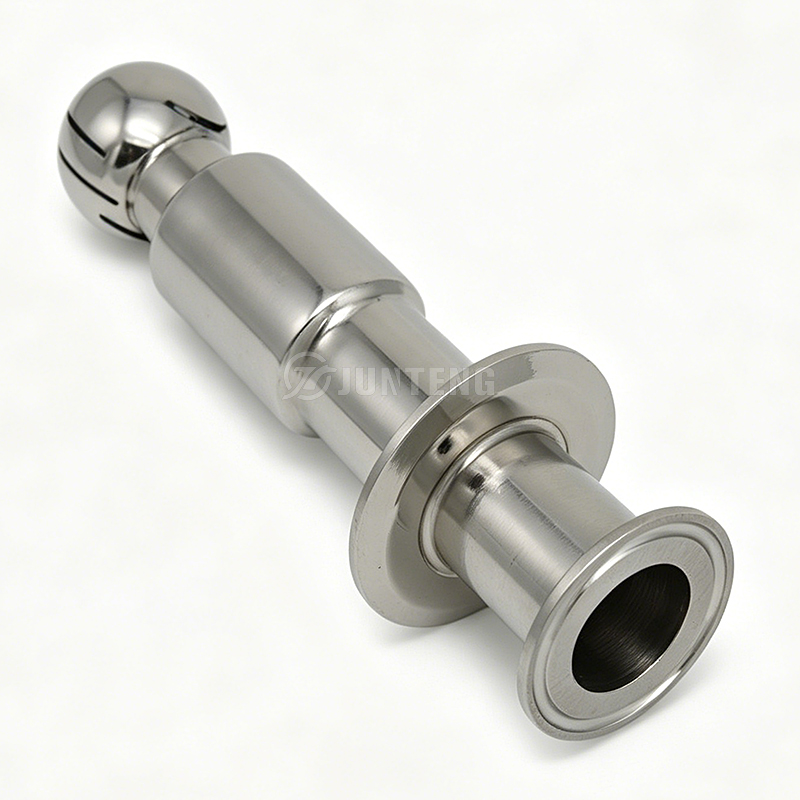

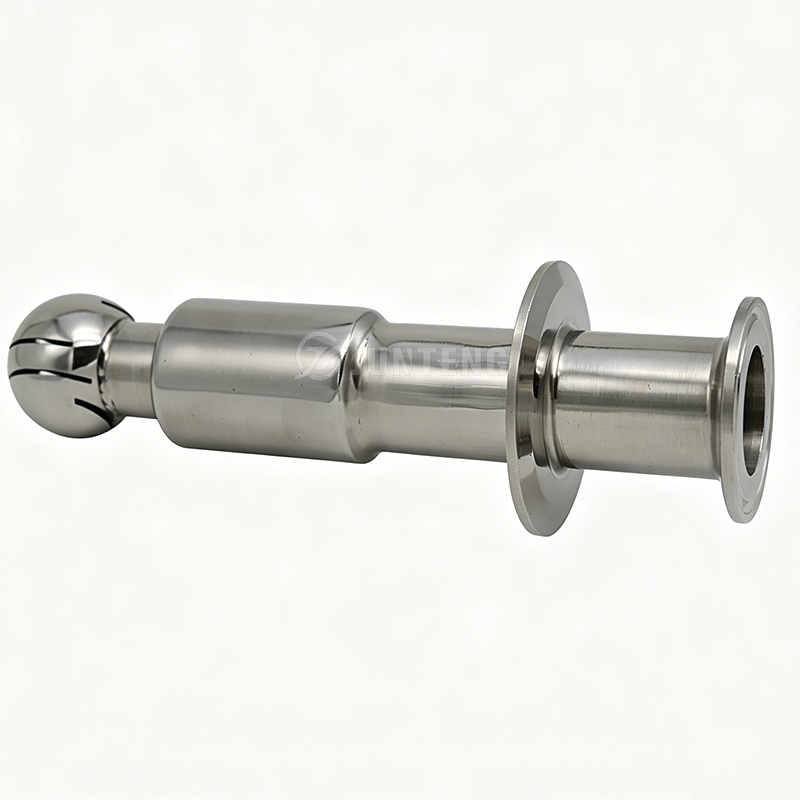

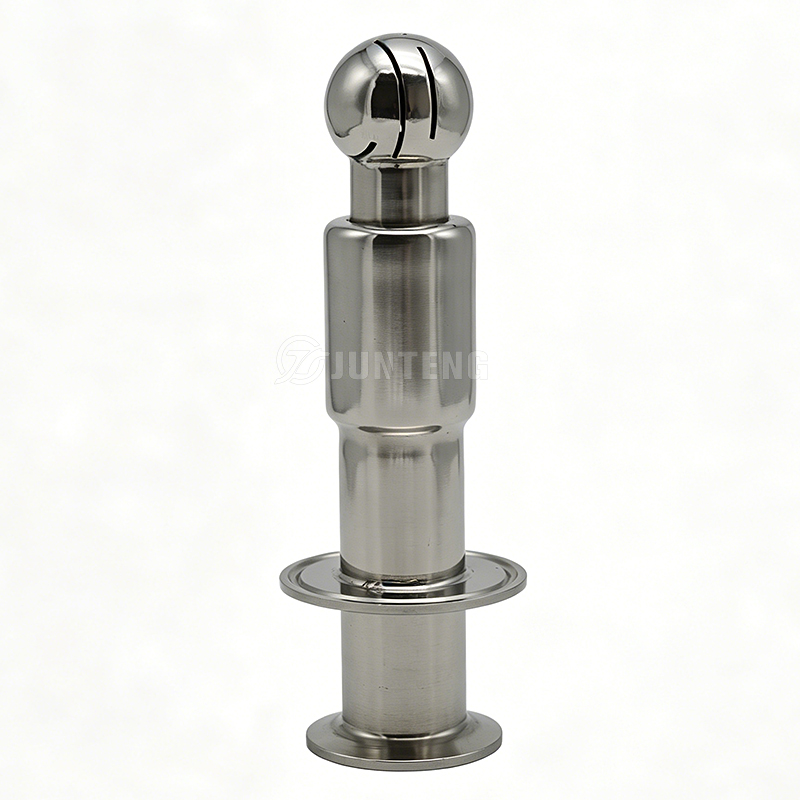

China 304 316L Stainless Steel Pharmacy Clamp Bolted Threaded Rotary Cleaning Ball

1. Brief Introduction of Products:

A CIP (Clean-In-Place) spray cleaning ball is a stationary or rotating device used in food, beverage, and pharmaceutical manufacturing to automatically clean the interior surfaces of tanks, vessels, and pipes without taking the equipment apart.

Common Types of Spray Balls

• Static Spray Balls: Fixed in place and rely on high flow rates and low pressure to continuously flush the walls.

• Rotating Spray Balls: Spin much like a dishwasher arm, using the pressure of the cleaning fluid to create a moving scrubbing effect that provides better overall coverage and uses less water.

How It Works?

• Design: It is a hollow, polished metal (typically stainless steel) ball or sphere with precisely drilled holes or slots.

• Mechanism: It is installed at the top of a processing tank. High-pressure water or chemical cleaning solutions (like caustic soda) are pumped through it, generating a 360° high-velocity spray or sheeting action that cascades down the vessel walls.

• Benefits: It automates the removal of residue and bacteria, significantly improving worker safety (by eliminating the need to manually enter tanks and scrub) and reducing facility downtime.

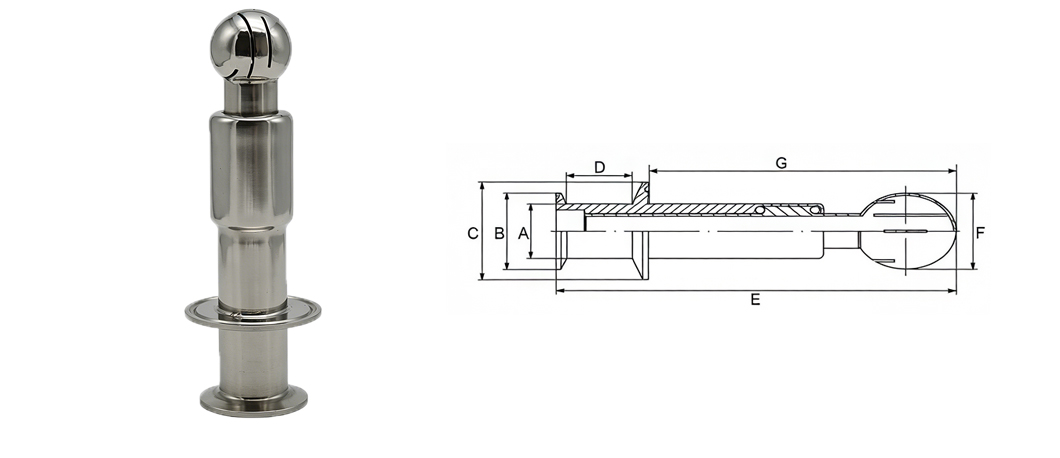

2. Technical Specification:

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

• Food and Beverage: Sterilizing milk silos, wine barrels, brewery fermentation tanks, and soup or batch processing kettles.

• Pharmaceuticals & Biotech: Controlling bioburden, eliminating endotoxins, and removing previous batch components from processing vessels.

• Industrial Manufacturing: Rinsing residue from commercial ovens, spray dryers, fluid bed dryers, and paint or ink mixing vats.
