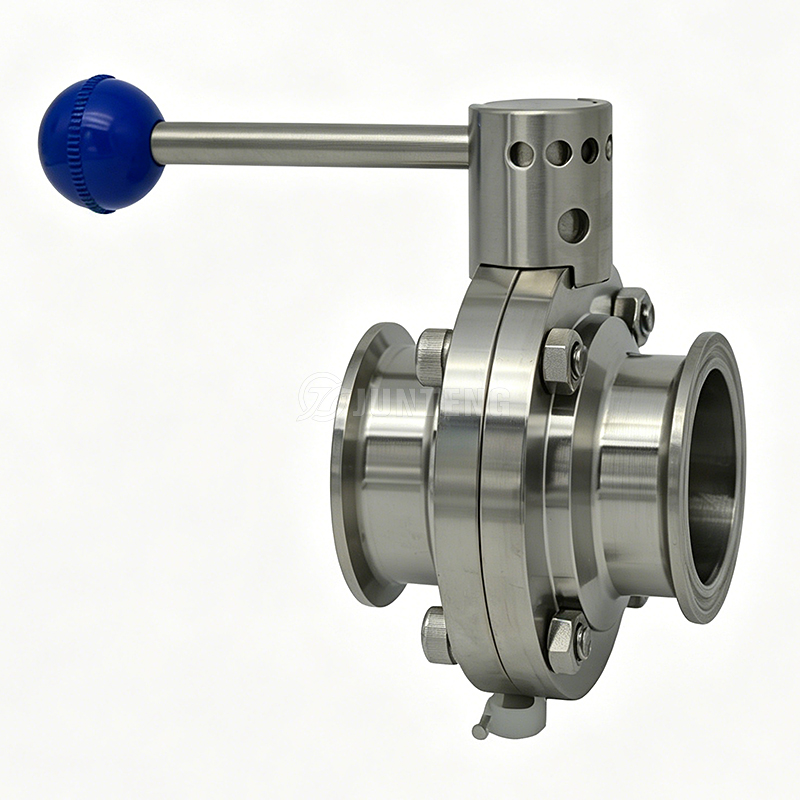

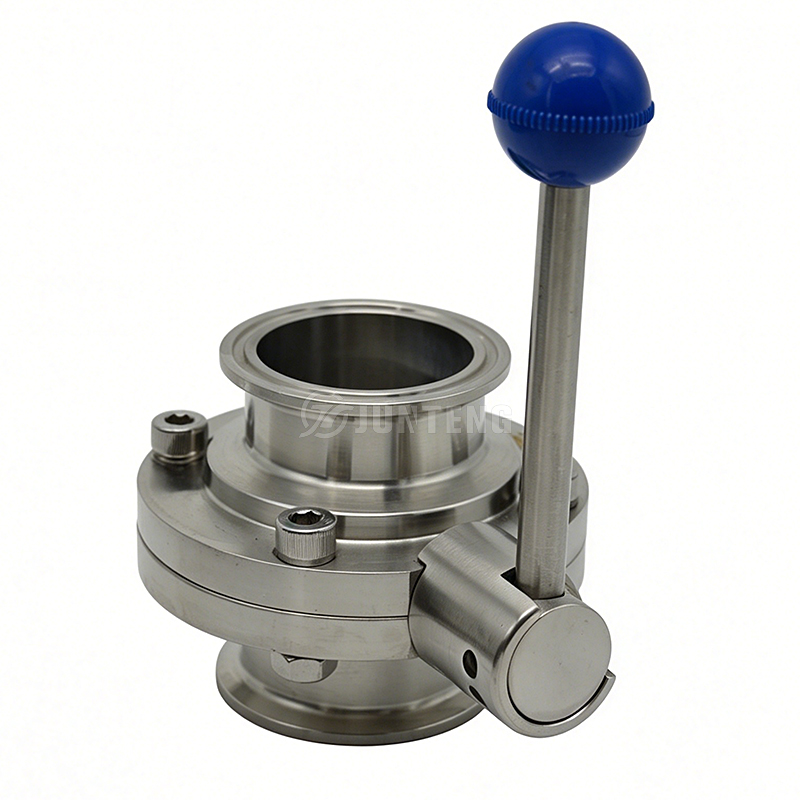

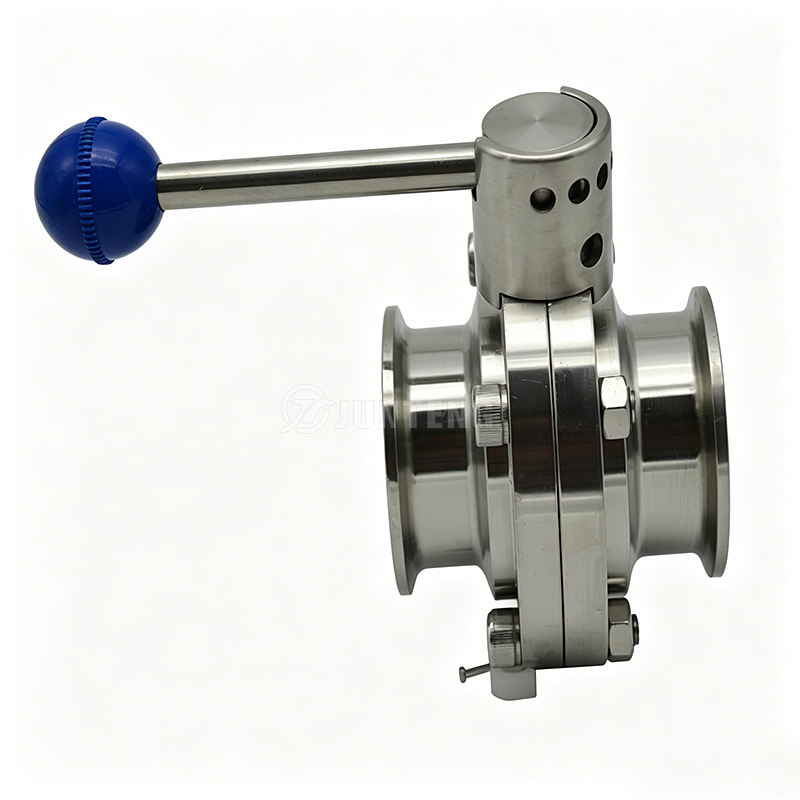

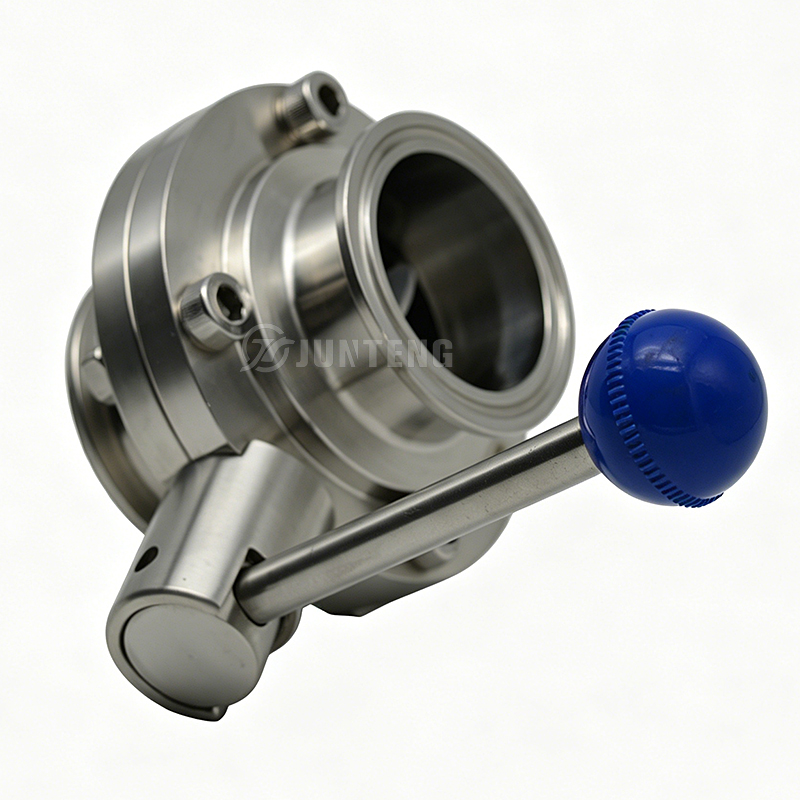

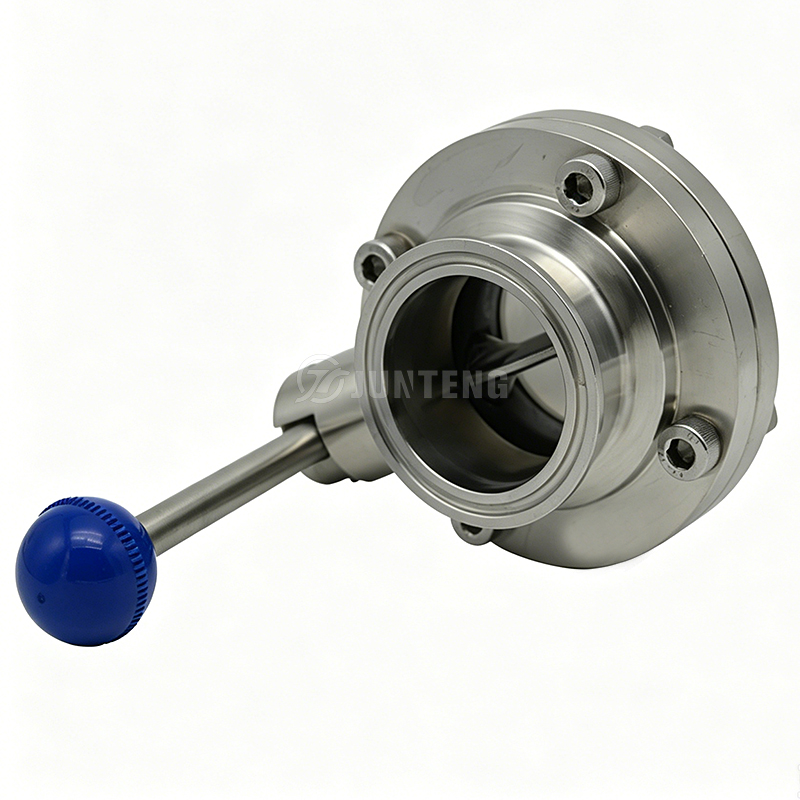

High-Purity SanitaTri-Clamp - 304/316 Stainless Steel Manual Butterfly Valve

1. Brief Introduction of Products:

 A tri clamp butterfly valve is a sanitary flow-control device that uses a rotating disc to start, stop, or regulate fluid flow. It connects to process piping via tri-clamp (or Tri-Clover) fittings, allowing for fast, tool-free assembly and disassembly for rigorous cleaning.

Inside the valve body is a flat, circular disc mounted on a central stem. When the valve is fully open, the disc aligns with the flow path, offering very low flow resistance. When the valve is closed, the disc rotates exactly 90 degree to completely block the pipe.

Control and Operation

• Manual Control: Most manual models feature a trigger handle (with 12 or 13 locking positions) or a pull handle, allowing operators to make precise, incremental flow adjustments.

• Automated Control: These valves can also be equipped with pneumatic or electric actuators to allow for remote or automated opening and closing.

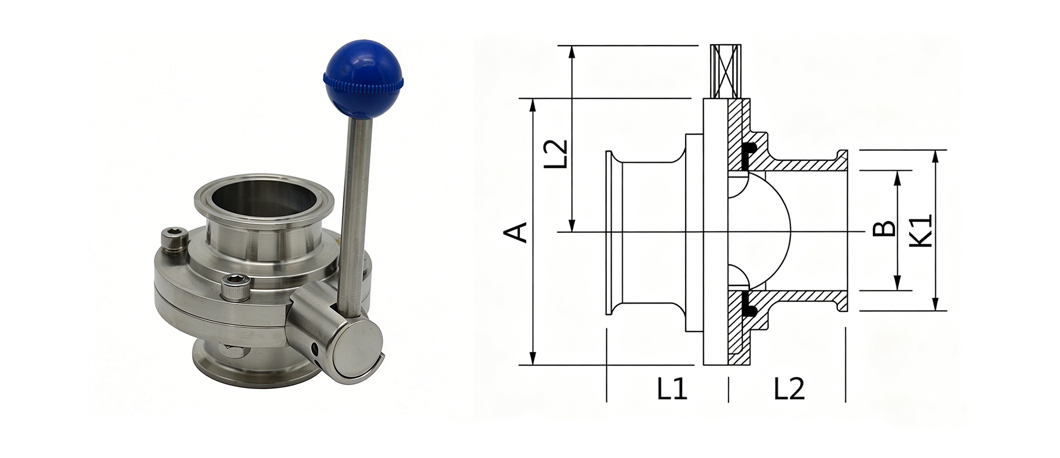

2. Technical Specification:

      3A Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

Because of their high sanitary standards, they are industry-standard components in environments where cleanliness is crucial, such as:

• Craft brewing and distilling (for managing flow through racking arms and fermenters)

• Commercial dairy and food processing

• Pharmaceutical and biotech manufacturing
