cow milk pump,centrifugal milk pump,beer pump,alcohol pump,Pump with Take Cart
Inquire
1. Brief Introduction of Products:

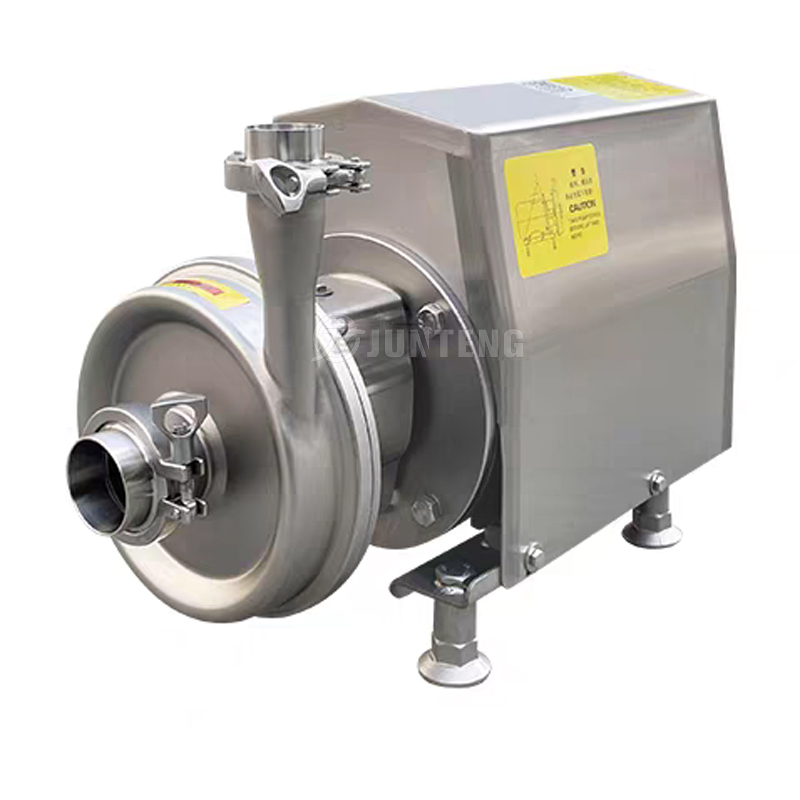

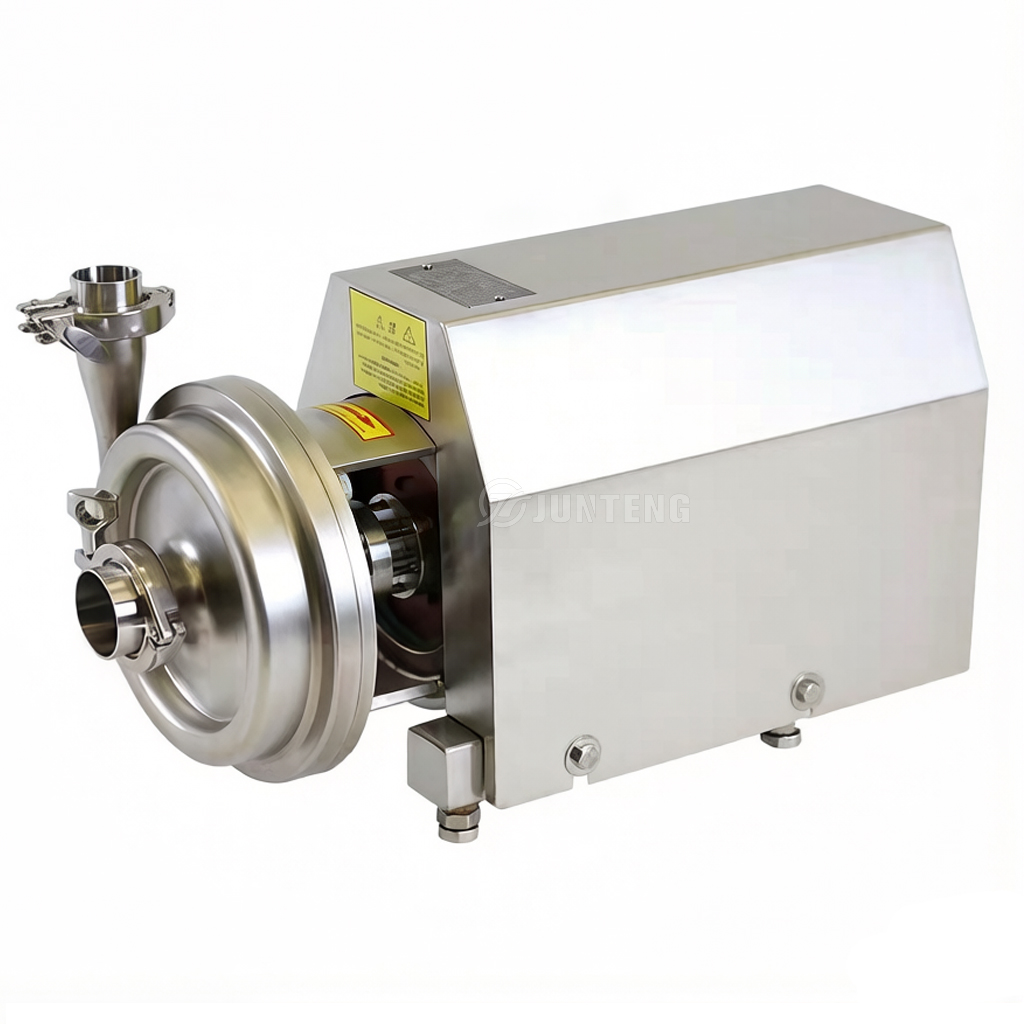

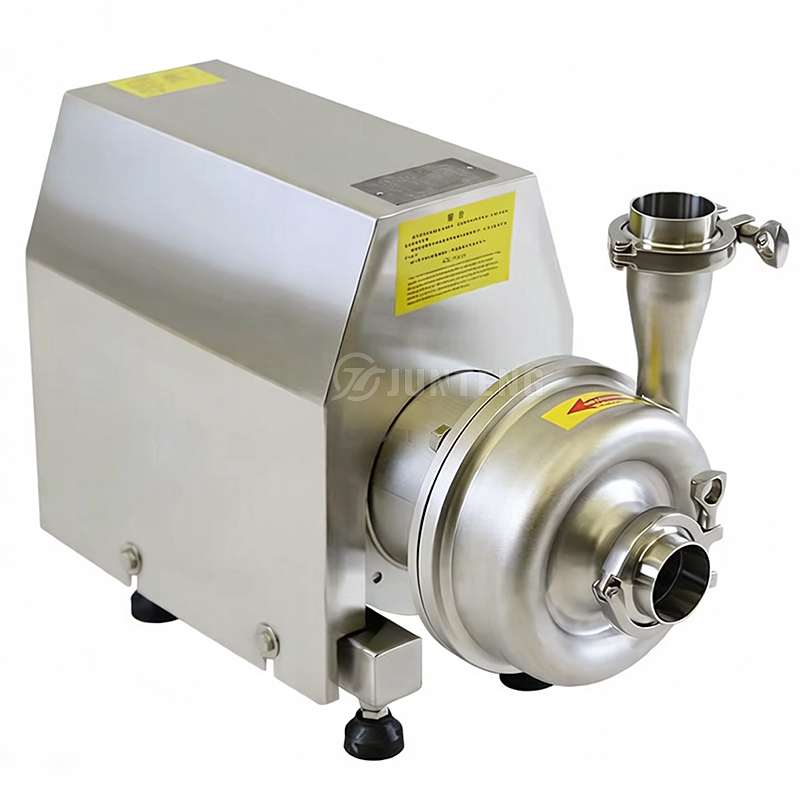

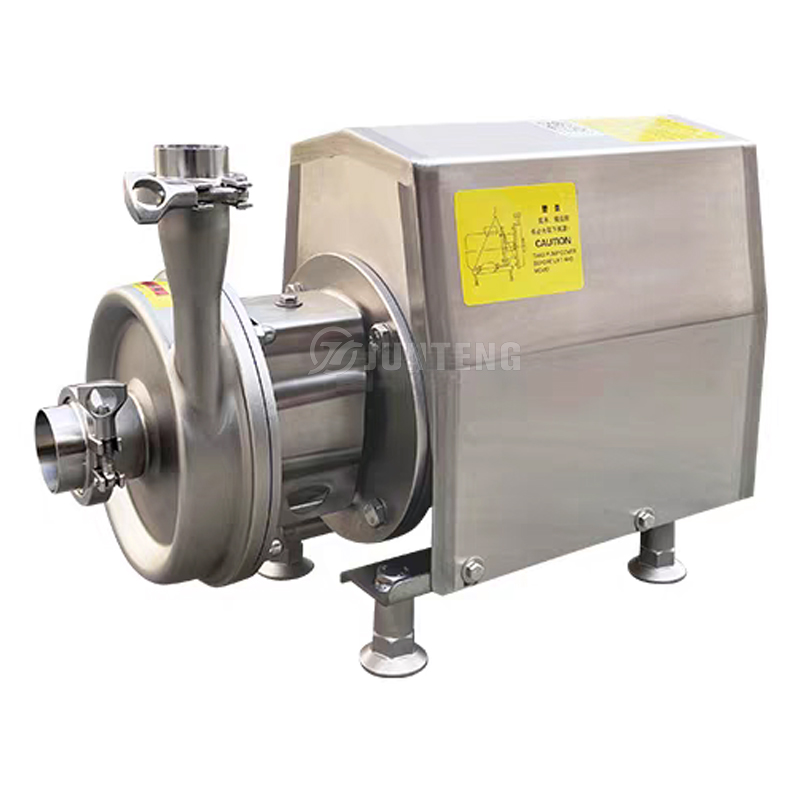

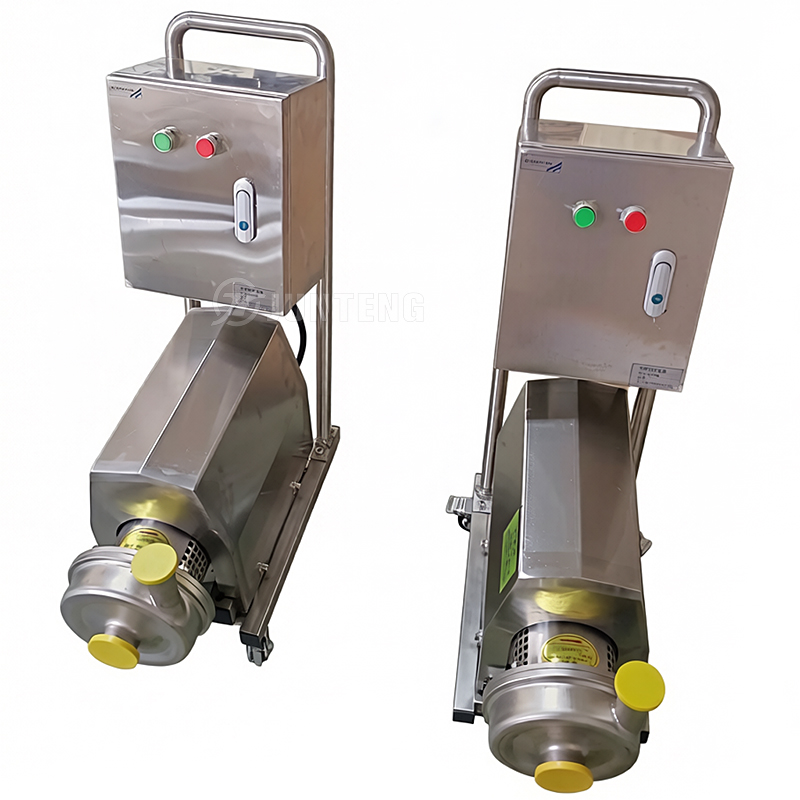

A sanitary centrifugal pump with a cart is a mobile fluid transfer system designed to safely move liquids in hygienic environments. By mounting a washdown-rated centrifugal pump on a stainless steel rolling cart, operators can easily wheel the unit around a facility to perform multiple tasks, such as loading and unloading tanks or circulating cleaning solutions.
2. Key Features and Design:
• Mobility: Built with ergonomic stainless steel frames, washdown-duty motors, and heavy-duty, corrosion-resistant wheels.
• Sanitary Construction: The wetted components (like the impeller and casing) are constructed from polished food-grade steel (e.g., 316L) to prevent bacterial growth and meet strict 3-A or FDA standards.
• Electronics: Often equipped with a NEMA 4X Variable Frequency Drive (VFD) for adjustable flow rates, and a long power cord for easy plug-and-play operation.
3. Technical Specification:
| Model | Flow (ton/h) | Lift(M) | Power (KW) | Inlet/Outlet (mm) |
| JT1.5-14 | 1.5 | 14 | 0.5 | 40/25 |
| JT3-14 | 3 | 14 | 1.1 | 40/32 |
| JT5-24 | 5 | 24 | 1.5 | 50/40 |
| JT5-32 | 5 | 32 | 2.2 | 50/40 |
| JT10-24 | 10 | 24 | 2.2 | 50/40 |
| JT10-36 | 10 | 36 | 3 | 50/40 |
| JT15-24 | 15 | 24 | 3 | 50 |
| JT20-24 | 20 | 24 | 4 | 50 |
| JT20-36 | 20 | 36 | 5.5 | 50 |
| JT25-24 | 25 | 24 | 4 | 50/50 |
| JT30-24 | 30 | 24 | 5.5 | 65/50 |
| JT30-36 | 30 | 36 | 7.5 | 65/50 |
| JT30-60 | 30 | 60 | 11 | 65/50 |
| JT35-36 | 35 | 36 | 11 | 65/50 |
| JT40-36 | 40 | 36 | 11 | 80/65 |
| JT40-45 | 40 | 45 | 11 | 80/65 |
| JT50-36 | 50 | 36 | 11 | 80/65 |
4. General Diagram:
5. Mechanical Seals:
6. Key Applications and Use Cases:
Because centrifugal pumps are ideal for moving low-viscosity liquids (like water, beer, milk, wine, and juice) at high volumes, these mobile carts are indispensable workhorses in several industries:
• Breweries & Wineries: Transferring beer between fermenters, knocking out wort, and moving liquids through filters.
• Dairy & Beverage: Moving milk, syrups, and other delicate, free-flowing liquids.
• Pharmaceuticals & Biotech: Facilitating Clean-In-Place (CIP) systems, pumping buffer solutions, and flushing process lines.
