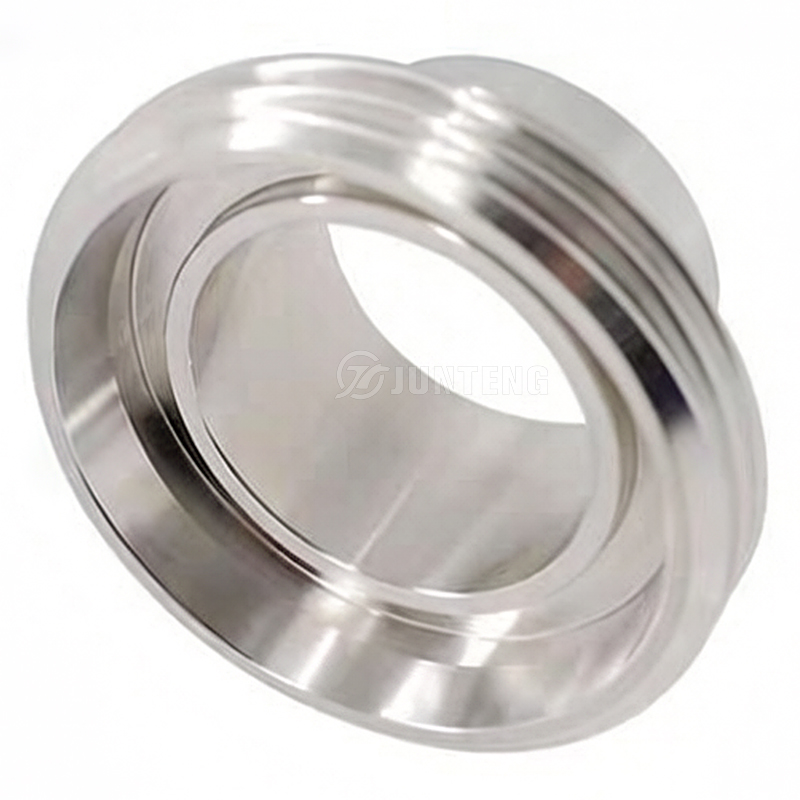

3A/SMS/DIN Sanitary Stainless Steel 304/316L Union Thread Male Union

1. Brief Introduction of Products:

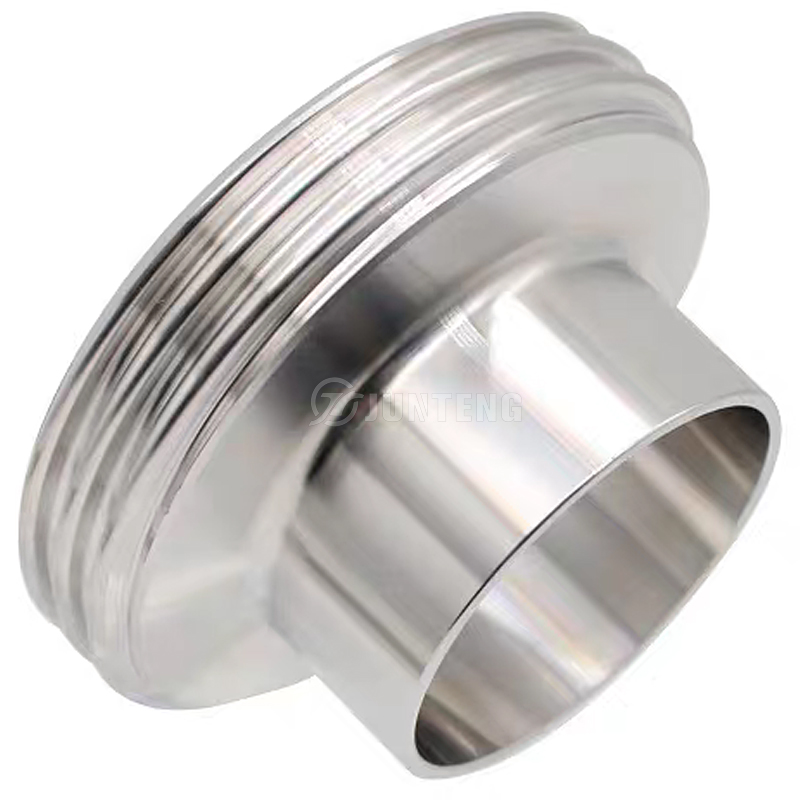

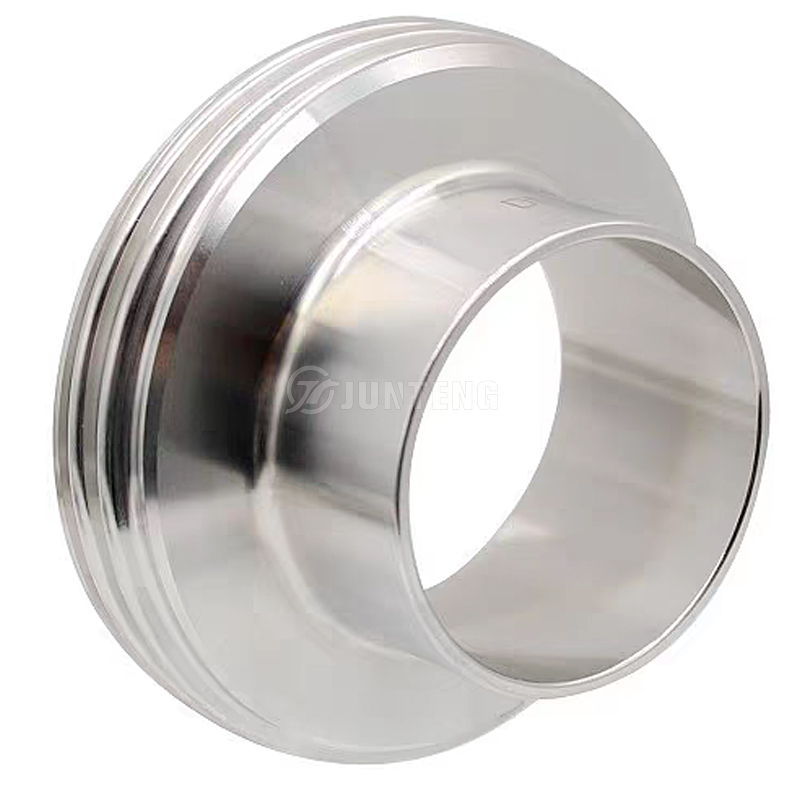

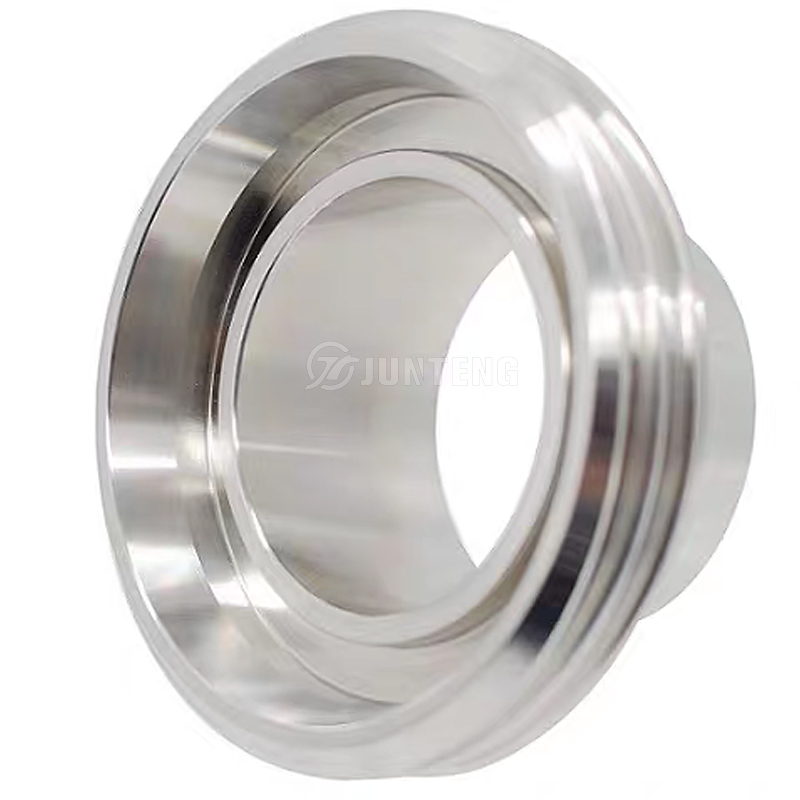

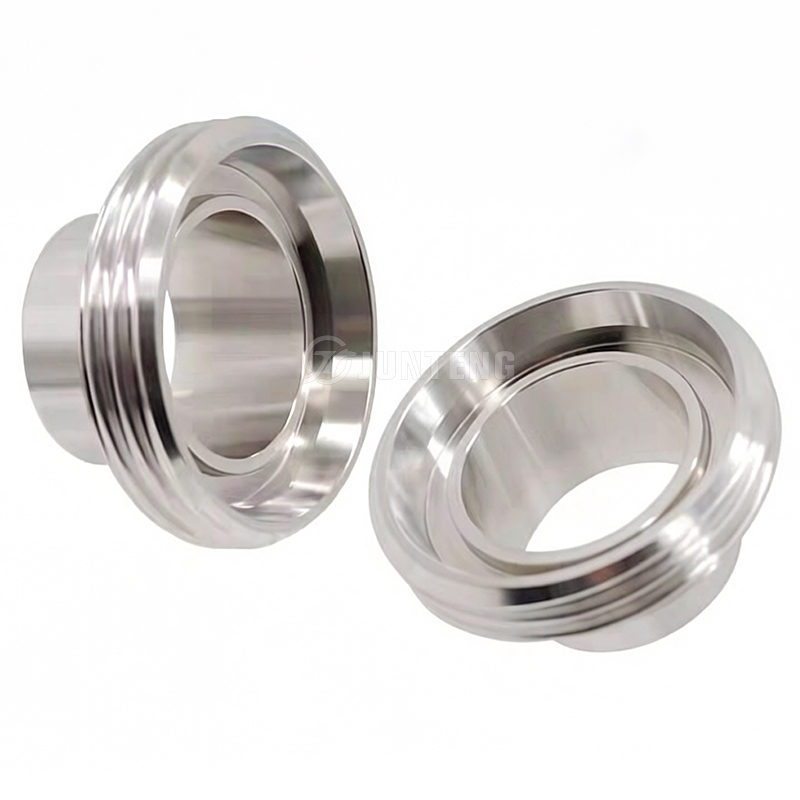

A welding male is a key, threaded component of a sanitary screwed union fitting used in hygienic piping systems. Designed to be permanently welded onto a stainless steel tube, it works together with a welding liner, a gasket, and a round nut to form a clean, leak-proof seal.

2. Key Components of a Sanitary Union:

A complete union assembly relies on four primary parts:

(1). Welding Male: The threaded half of the coupling that is butt-welded to the process piping. It features external threads.

(2). Welding Liner (or Female Part): A flared or flanged piece that slips into the welding male, acting as a seat for the gasket.

(3). Gasket: Sits between the liner and the male face to ensure a sterile, crevice-free seal that prevents product buildup.

(4). Round Nut (Slotted or Hexagon): Slides over the welding liner and screws onto the welding male, pulling all the pieces together to compress the gasket.

3. Common Sanitary Union Standards:

Welding males (and their corresponding union sets) are manufactured to meet strict hygienic regulations (Ra ≤ 0.8μm interior polish) for the food, dairy, beverage, and pharmaceutical industries:

• DIN 11851: A widely used European standard, especially common in the UK and US. The males feature metric-sized threads.

• SMS 1145: Swedish Manufacturing Standard, very common in food and dairy applications.

• 3A Standard: Designed in accordance with US 3A sanitary standards, typically without an O-ring (metal-to-metal seal).

• RJT & IDF / ISO Unions: Commonly used in specific regional processing plants, ensuring clean, crevice-free fluid transfer.

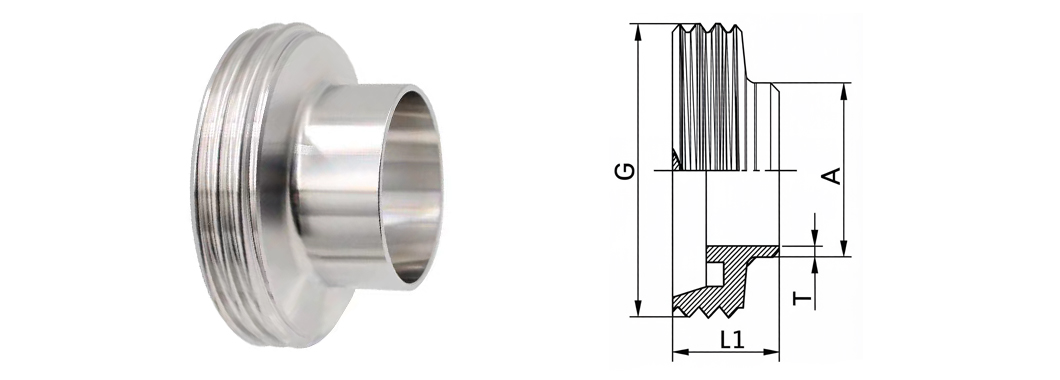

Technical Specification:

    DIN Standards Long Type

     DIN Standards Short Type

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

4. Key Applications and Use Cases:

• Food and Beverage: Utilized in dairy processing, breweries, and bottling plants to prevent bacterial growth and safely manage consumable fluids.

• Pharmaceuticals & Biotech: Deployed in bioprocessing lines, simplifying the maintenance of strict sterility and preventing product contamination.

• Cosmetics & Personal Care: Connects mixing, heating, and transfer equipment to ensure batch purity.
