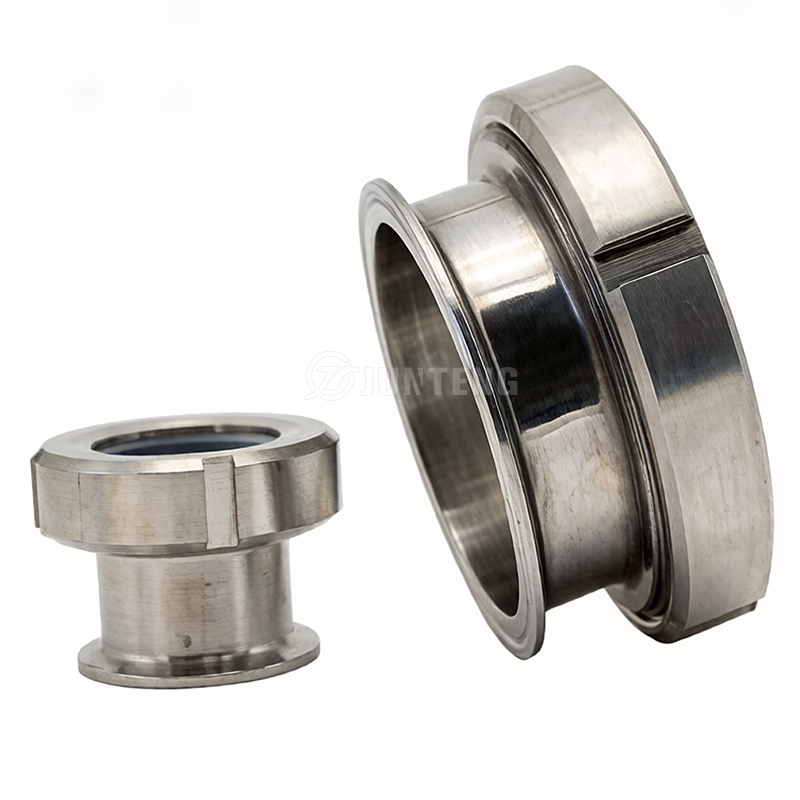

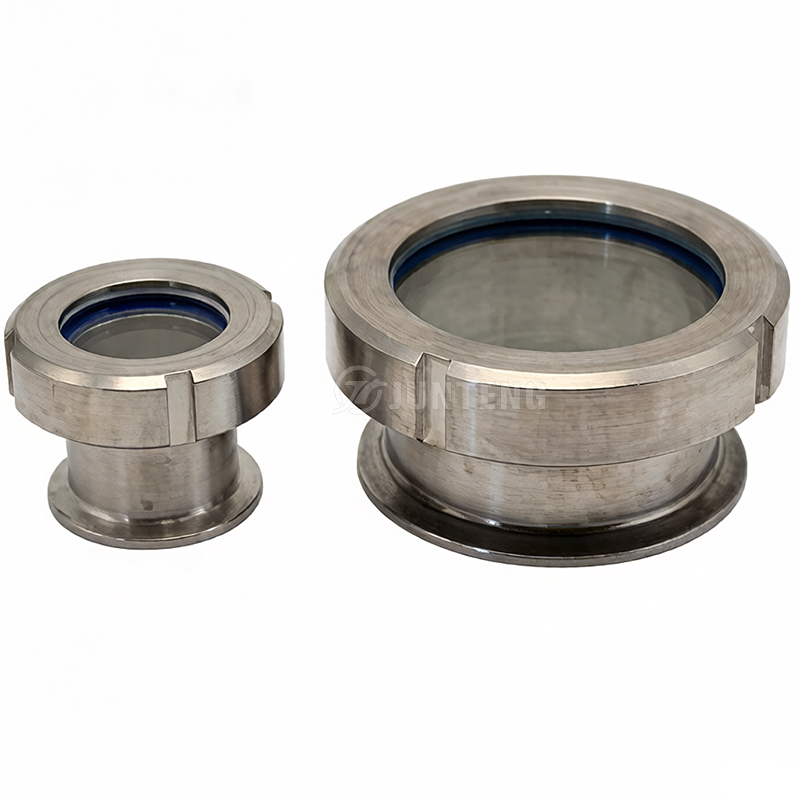

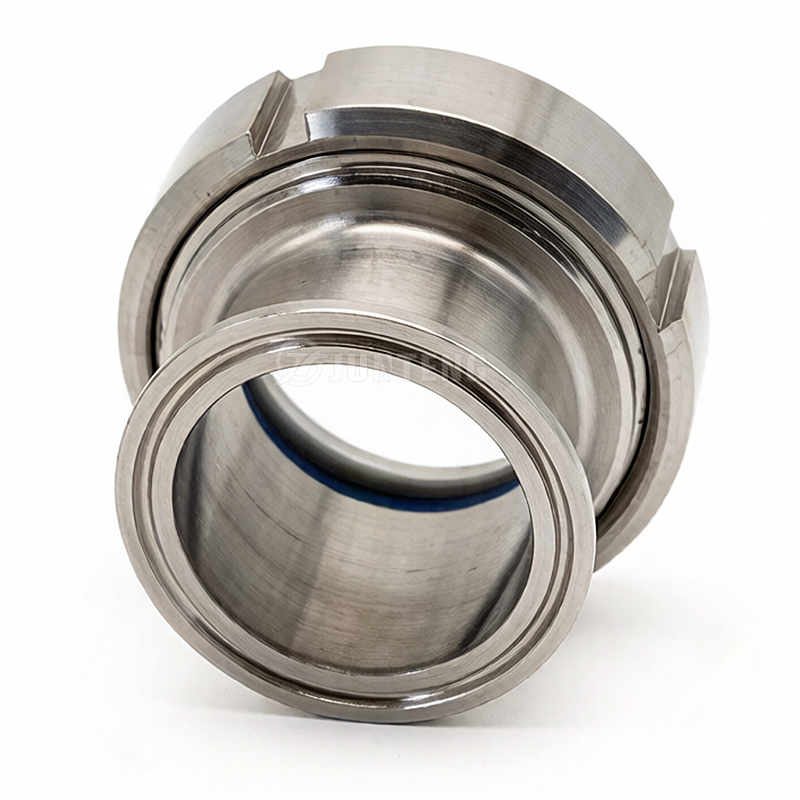

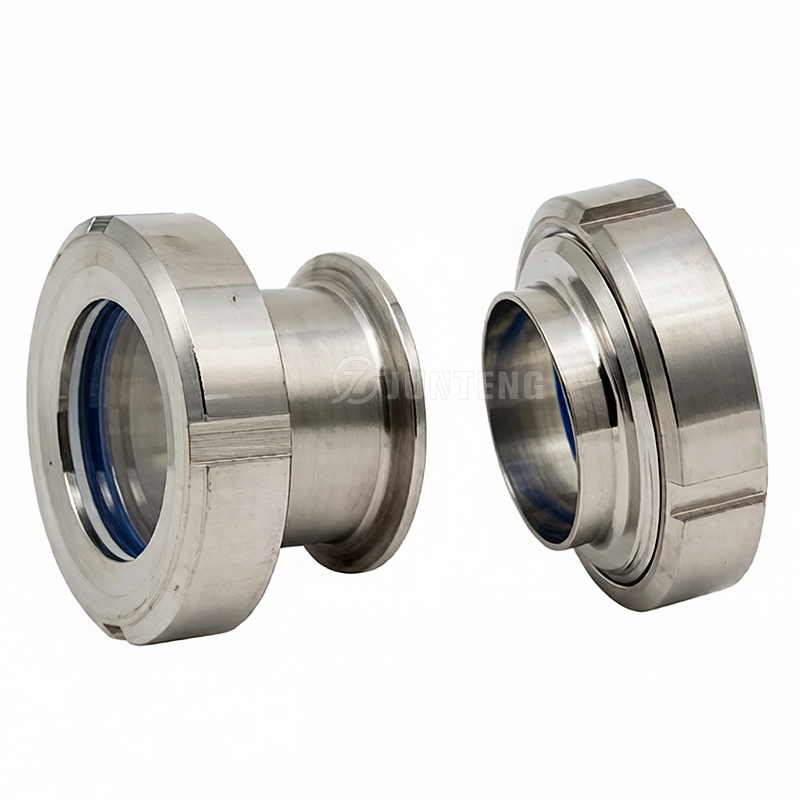

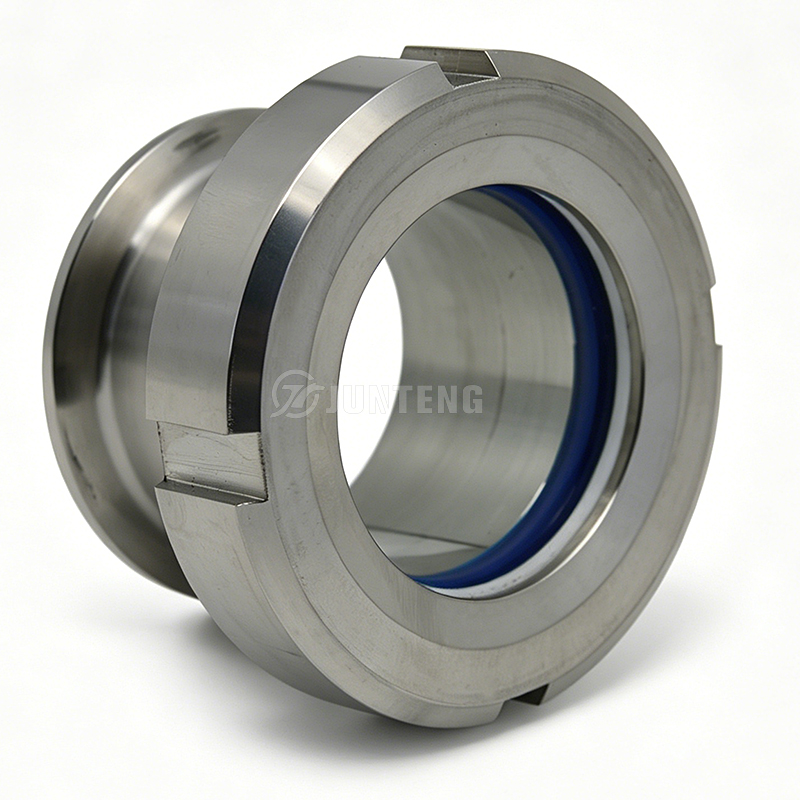

1" 2" 3" 4" Sanitary sight glass tri clamp end union W/ Ferrule stainless Steel

1. Brief Introduction of Products:

A Tri-Clamp sight glass union is a viewing window integrated into sanitary piping, allowing you to visually inspect fluid flow, clarity, color, or internal conditions. It connects to the pipe using a quick-release Tri-Clamp mechanism instead of welded or threaded joints.

Key Features

• Material: Typically constructed from 304 or 316L stainless steel fitted with a tempered borosilicate or quartz glass window.

• Seal: It uses a gasket (like silicone, PTFE, or FKM) and a hinged clamp to create a secure, sterile seal.

• Connection: The term "union" means it is designed to be easily disassembled from the line for cleaning, maintenance, or replacing the glass.

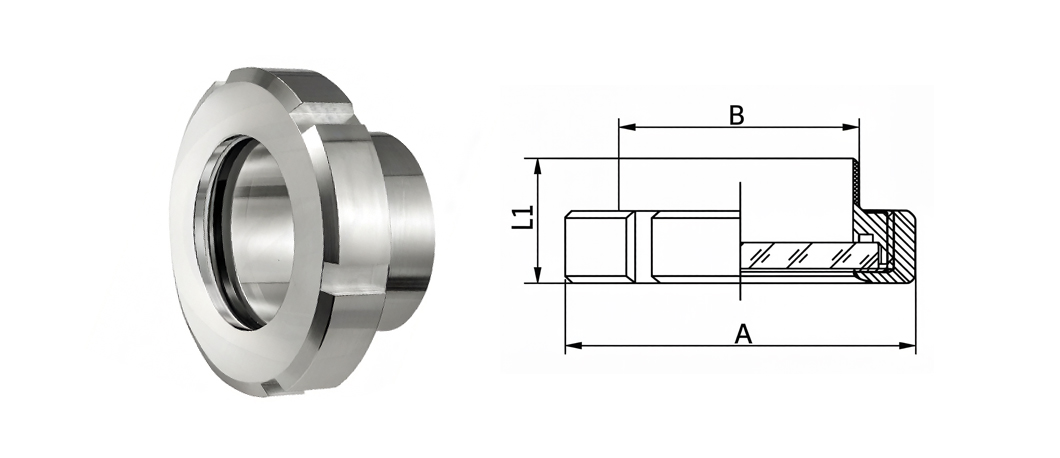

2. Technical Specification:

      SMS

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

• Brewing & Distilling: Monitoring fermentation, verifying wort clarity, or watching for liquid levels and foaming in a column.

• Industrial Processing: Inspecting product flow in the pharmaceutical, food and beverage, and chemical industries without exposing the fluid to outside elements.
