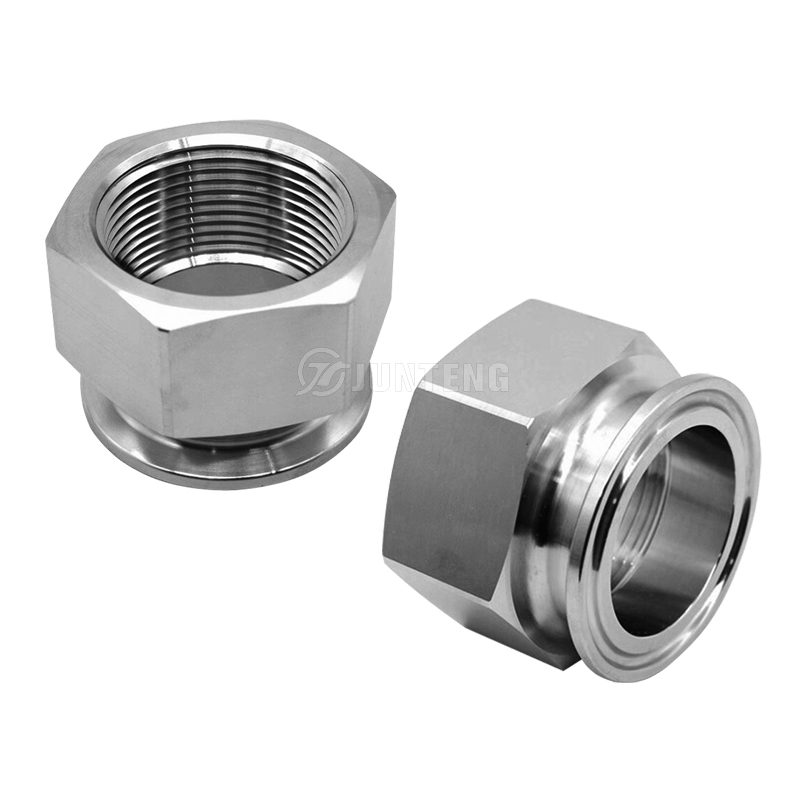

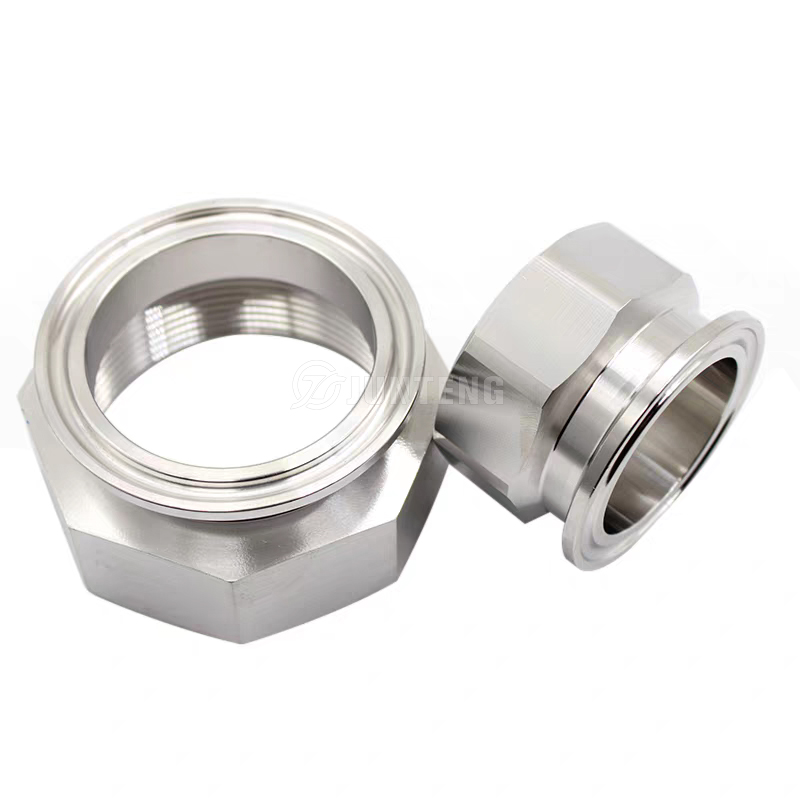

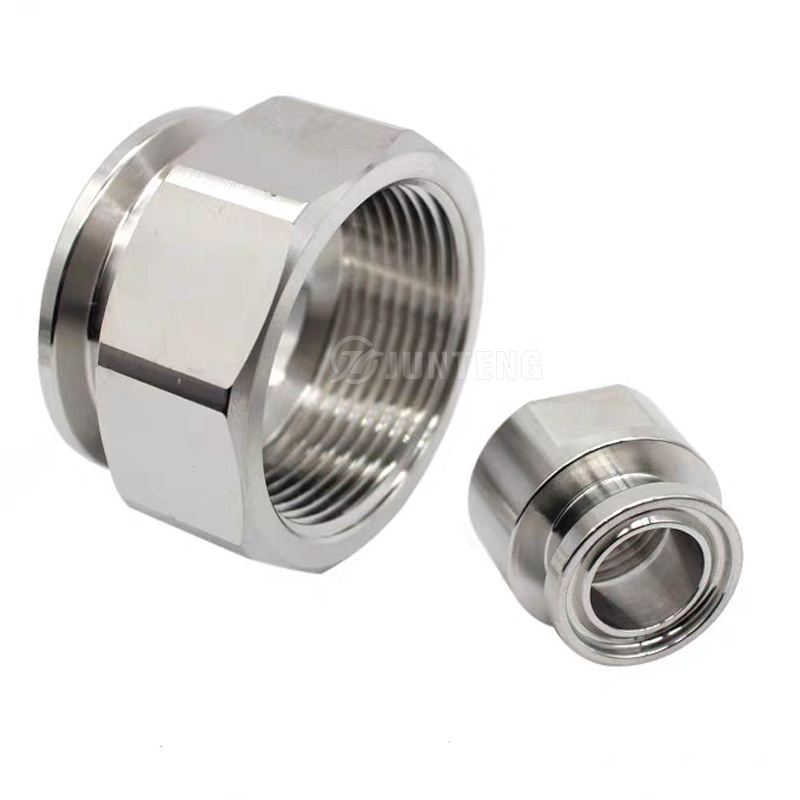

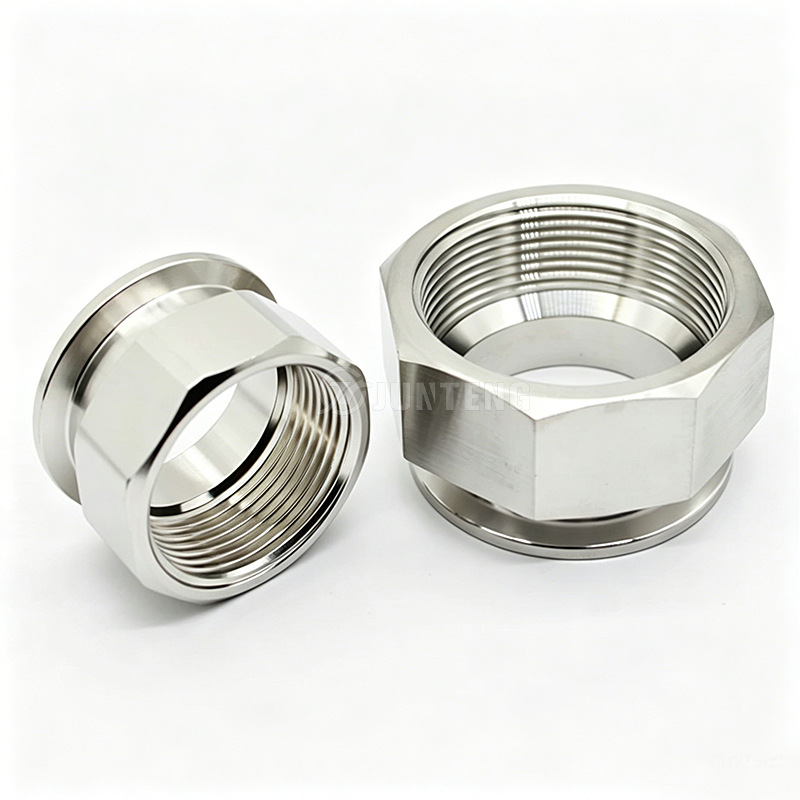

Stainless Steel 304 Sanitary Tri Clamp Male NPT Thread Adapter Pipe Fitting

1. Brief Introduction of Products:

A tri-clamp female thread adapter is a sanitary fitting used to seamlessly connect a standard Tri-Clamp connection (found in brewing, distilling, and dairy equipment) to a pipe, valve, or sensor with standard female pipe threads (NPT or BSP).

Types of Thread Adapters

• NPT (National Pipe Taper): The standard thread type used in the United States.

• BSP (British Standard Pipe): More common in Europe, Asia, and international markets.

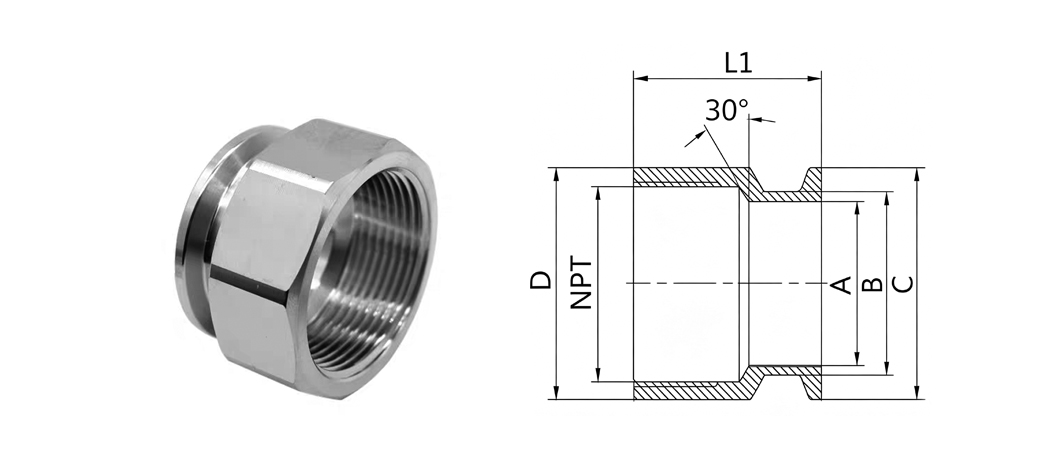

2. Technical Specification:

     3A Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

• Hygienic Transition: It bridges the gap between hygienic, tool-less Tri-Clamp systems and traditional threaded equipment.

• Equipment Integration: It is commonly used to attach auxiliary hardware—such as temperature probes, pressure gauges, compression fittings, or spray balls—to a Tri-Clover system.

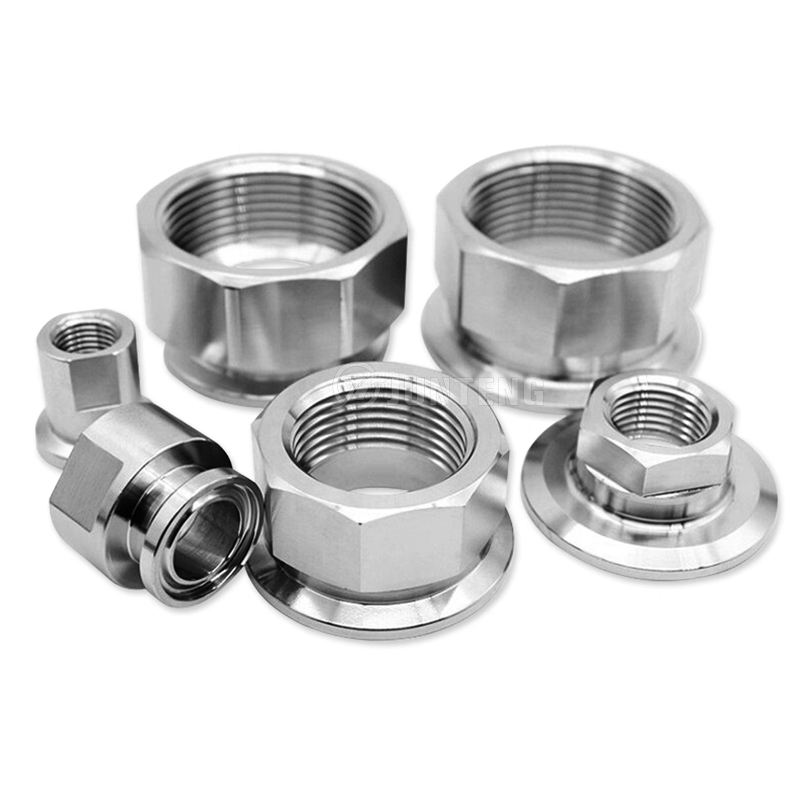

• Sizes: Adapters are widely available in various combinations, with the most common being 1.5" or 2" Tri-Clamp flanges paired with female threads ranging from 1/4" to 2".

• Materials: They are almost universally made from food-grade 304 or 316 stainless steel for maximum durability and corrosion resistance.
