1. Brief Introduction of Products

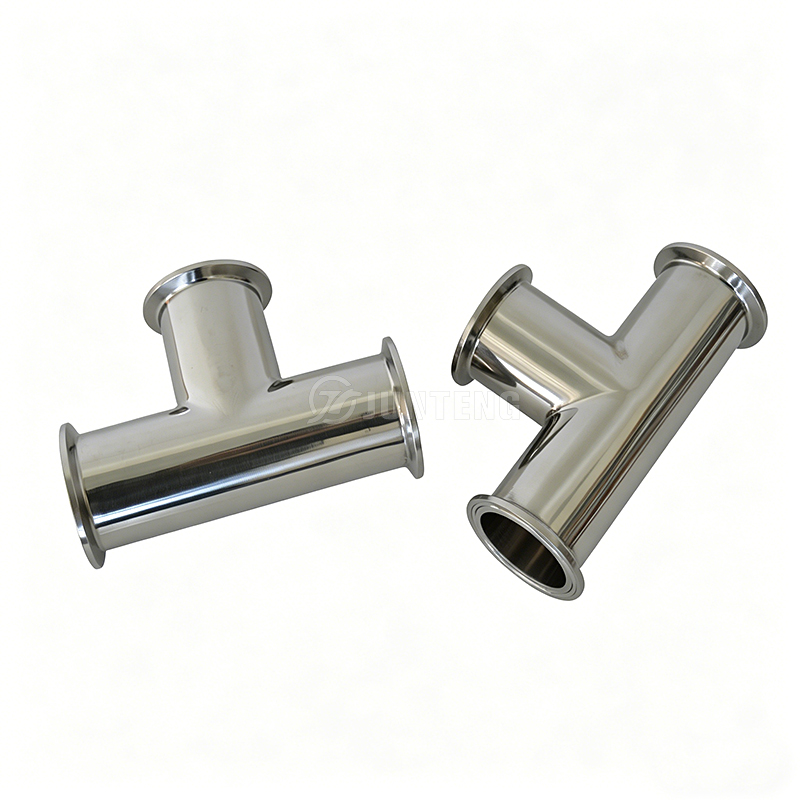

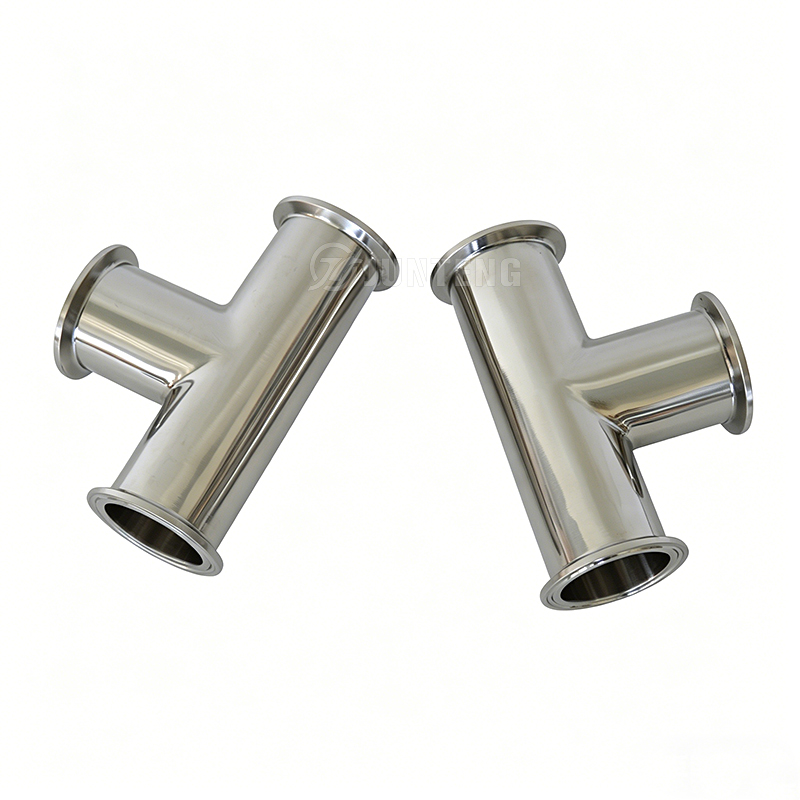

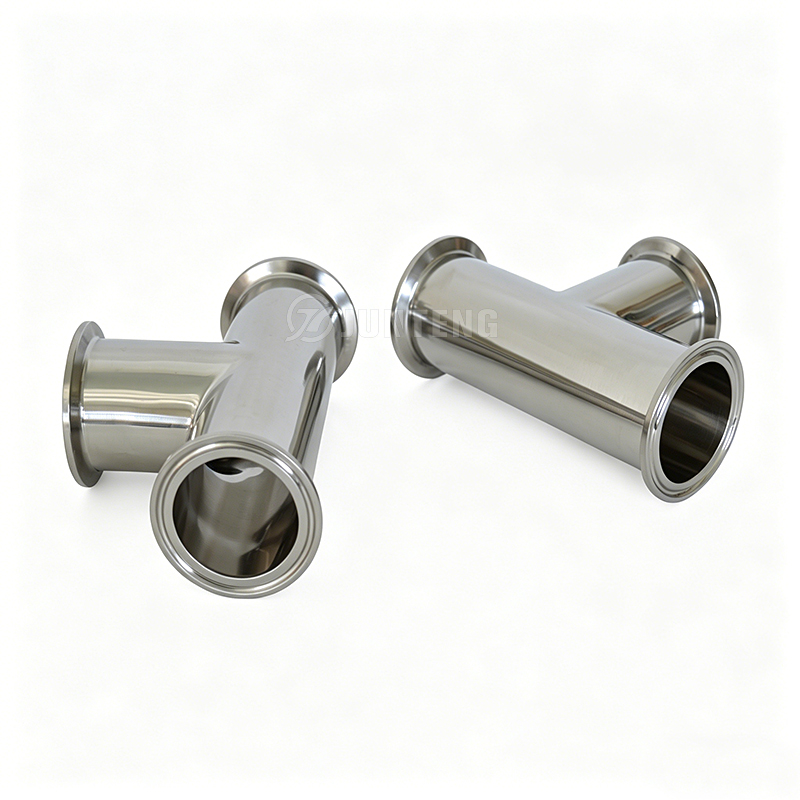

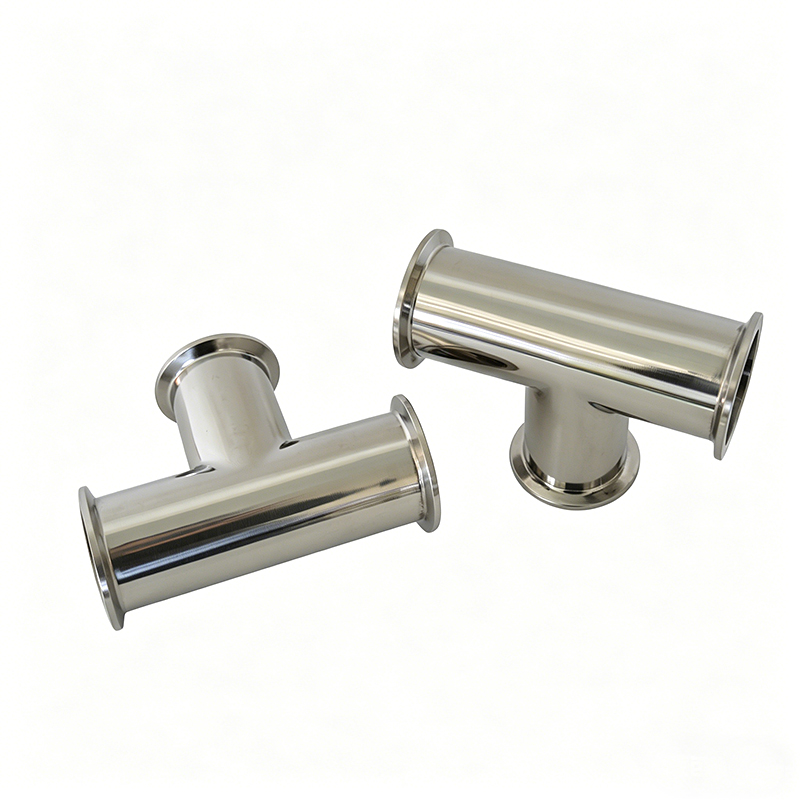

A Tri-Clamp equal tee isa 3-way, T-shaped sanitary stainless steel pipe fitting used to split or combine flows in process lines. Featuring identical-sized Tri-Clamp ends, it allows for fast, tool-free assembly/disassembly crucial for hygienic applications in food, beverage, and pharma industries. It is also known as a Tri-Clover tee.
2. Technical Specification
3A Standard

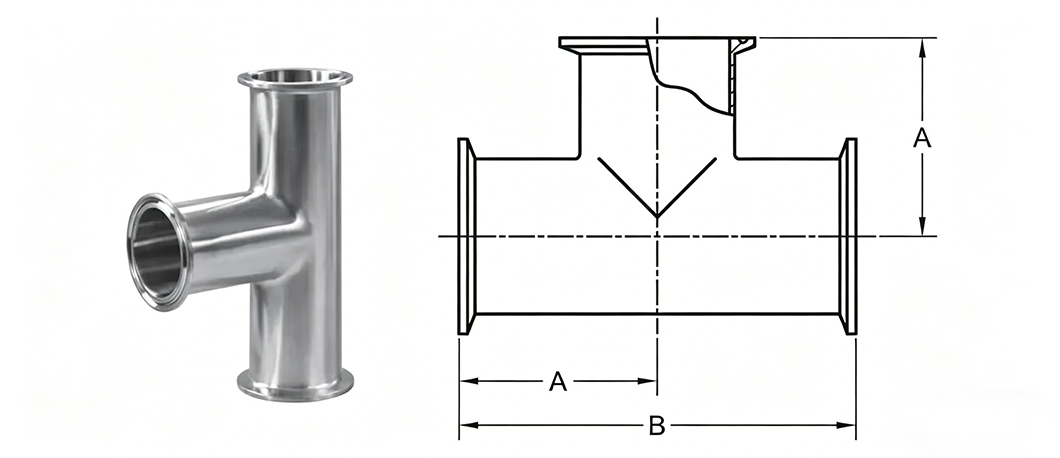

| PART NUMBER | SIZE | A | B |
| 7MP-.50 | 1/2" | 1.25 | 2.5 |
| 7MP-.75 | 3/4" | 2.375 | 4.75 |
| 7MP-1 | 1" | 2.375 | 4.75 |
| 7MP-1.5 | 1 1/2" | 2.75 | 5.5 |
| 7MP-2 | 2" | 3.5 | 7 |
| 7MP-2.5 | 2 1/2" | 3.5 | 7 |
| 7MP-3 | 3" | 3.75 | 7.5 |
| 7MP-4 | 4" | 4.5 | 9 |
| 7MP-6 | 6" | 6.375 | 12.75 |
| 7MP-8 | 8" | 7.875 | 15.75 |
This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!
3. Key Features and Usage Examples:
Usage: Used to connect three pipes of the same diameter, often seen in brewing, dairy, and biotechnology, offering a secure, leak-proof, and easy-to-clean connection.
Sizes & Material: Available in 304 or 316L stainless steel, with sizes typically ranging from 1/2" to 12" (commonly 1" to 4").
Design: The fitting consists of three sanitary flange ends that connect using clamps and gaskets.
Synonyms: Tri-Clover equal tee, sanitary T-fitting, 3-way sanitary clamp tee.
Operating Parameters: These fittings are generally rated for high temperatures and pressures, with some rated up to -58°F to 392°F.
