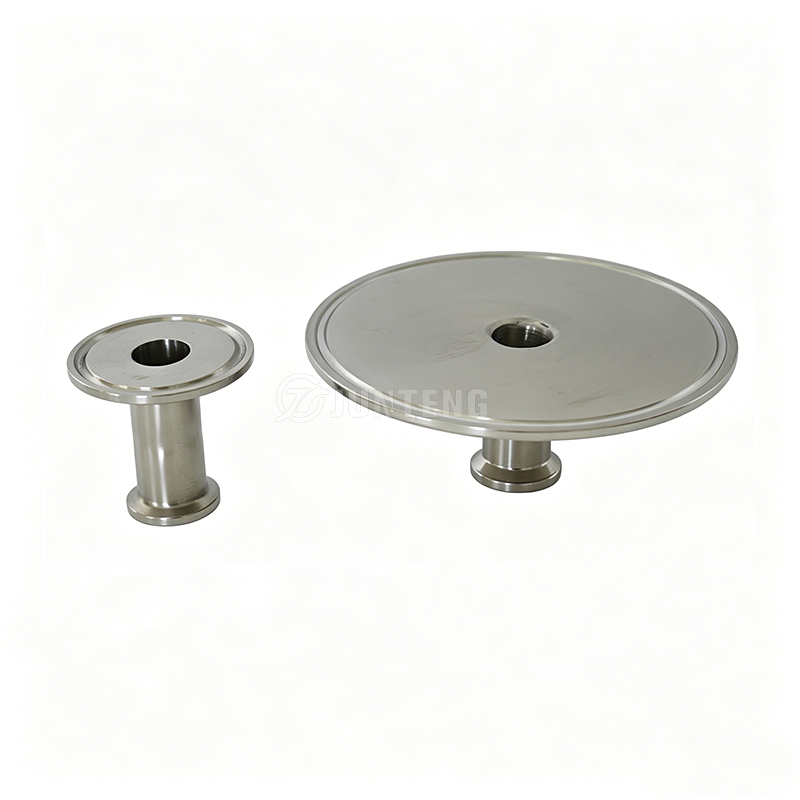

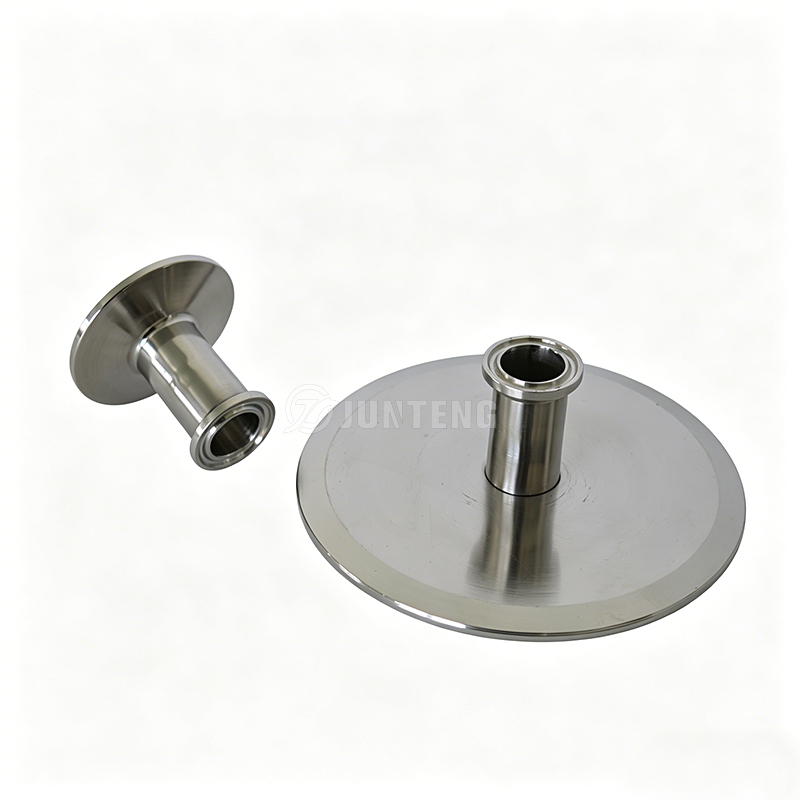

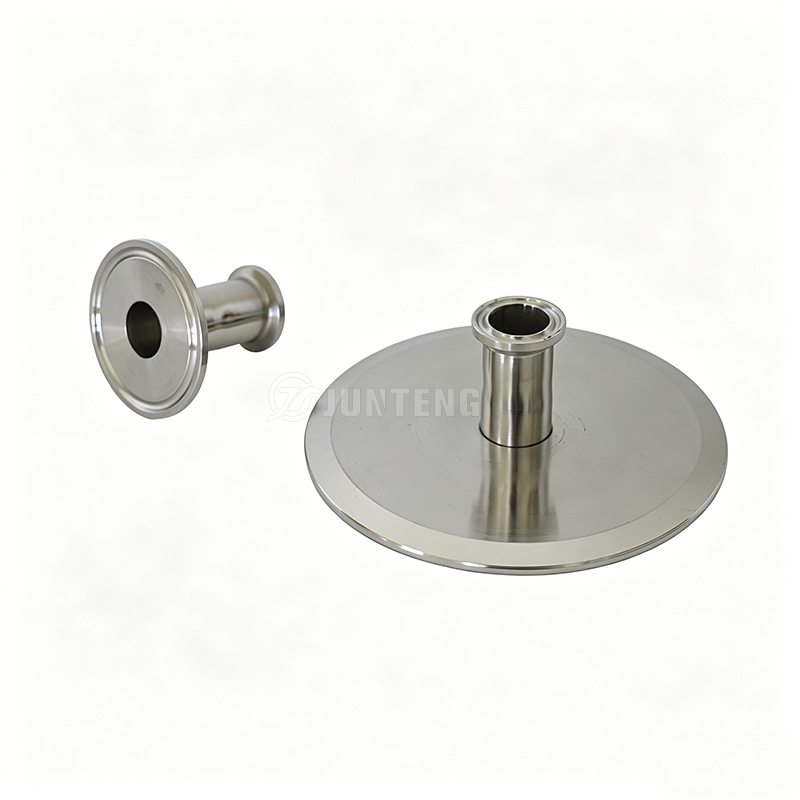

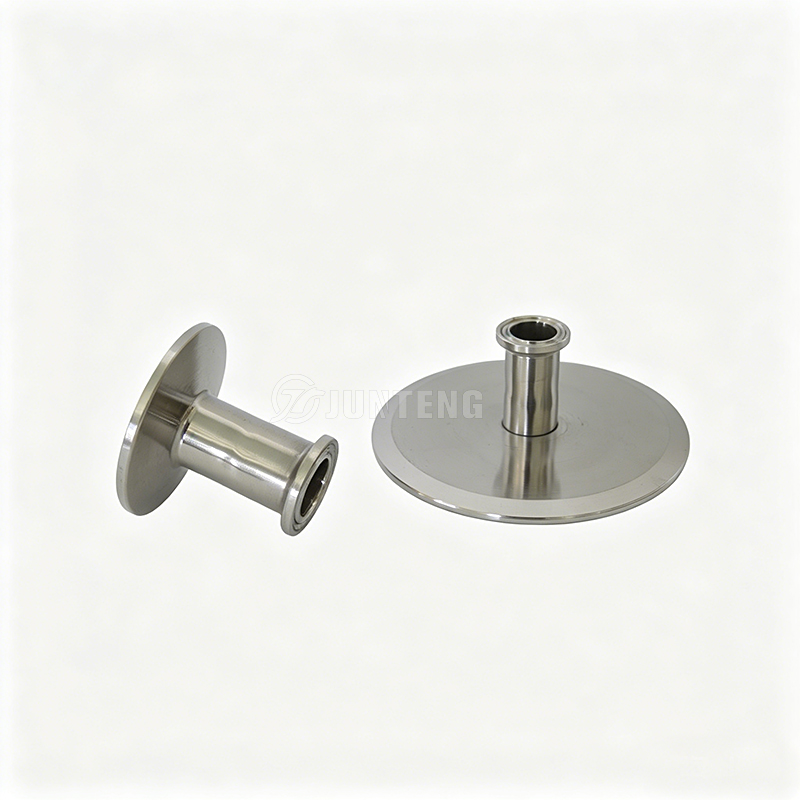

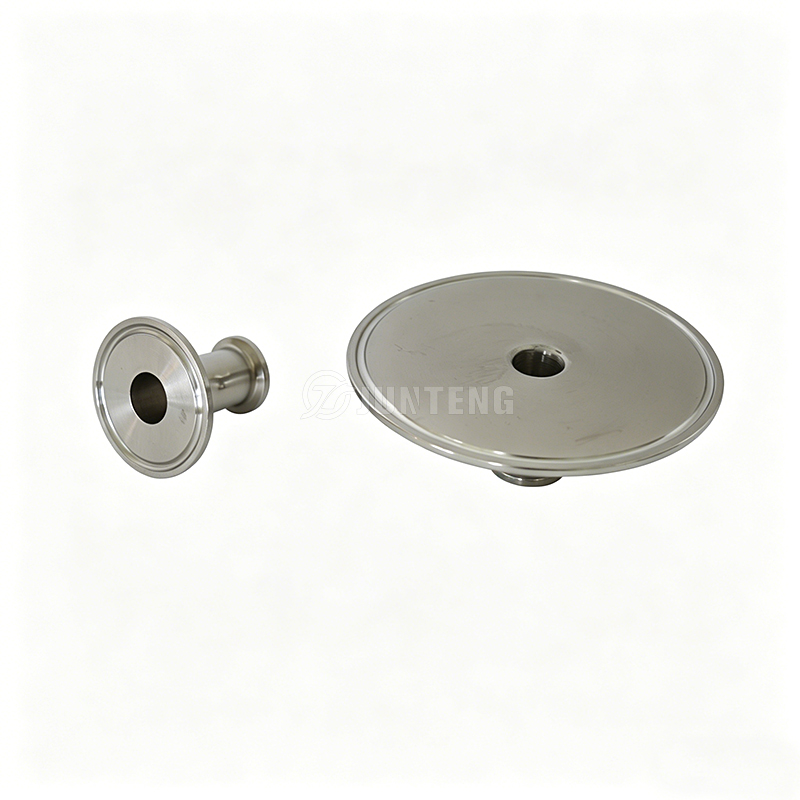

SS304 SS316 3A Tc Tri Clover Triclamp Hygienic End Cap Reducer

1. Brief Introduction of Products:

Tri-Clamp End Cap Reducers (or Cap Reducers) are compact, sanitary stainless steel fittings used to connect pipes of different diameters, acting as either a reducer or an increaser in sanitary applications. They are ideal for space-constrained, horizontal flow systems—such as in breweries, food processing, or pharmaceuticals—to manage pipe size changes while preventing pooling and acting as cleaning ports. Key Advantages:

1. Space-Saving Design: Ideal for cramped, high-density areas (e.g., breweries, breweries, and pharmaceutical plants) because they take up significantly less length than traditional reducers.

2. Versatile Flow Management: Often used as "increasers" to increase line size efficiently.

3. Ideal for Vertical Applications: Act as convenient sanitation or clean-out ports when placed on top of a vertical Tri-Clamp stack.

4. Prevent Pooling (Horizontal Use): While standard concentric reducers might cause pooling in horizontal lines, the design of these caps can help manage flow in certain setups.

5. Quick and Easy Assembly: Simple, fast installation and removal for cleaning (CIP) compared to threaded or welded alternatives.

6. Cost-Effective: Often a less expensive alternative to standard sanitary

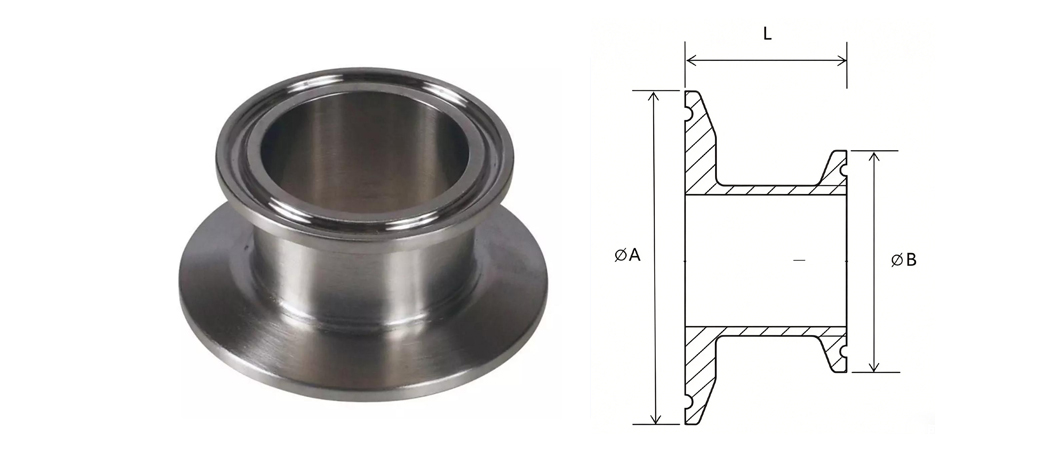

2. Technical Specification:

      3A Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

Key Applications of Tri-Clamp End Cap Reducers:

1. Size Transitioning: Efficiently connects a larger diameter piping component to a smaller one (or vice-versa) in confined areas where standard long reducers won't fit.

2. Horizontal Flow Systems: Often used for increasing line size, they are advantageous in horizontal, sanitary applications as they minimize the risk of liquid pooling.

3. Sanitation/Clean Out Ports: Installed vertically on top of a tri-clamp stack, they serve as a convenient CIP (Clean-in-Place) port.

4. Sanitary Process Industries: Heavily used in breweries, wineries, dairy processing, and pharmaceutical lines where high hygienic standards (304 or 316L stainless steel) are required.

5. Alternative to Concentric Reducers: Preferred in space-limited environments, though their sharp 90-degree angles may cause agitation compared to smoother reducers.

6. Welding/Modification: Some versions feature a smaller center hole, allowing for welding smaller sanitary fittings directly onto a larger cap.
