1. Brief Introduction of Products

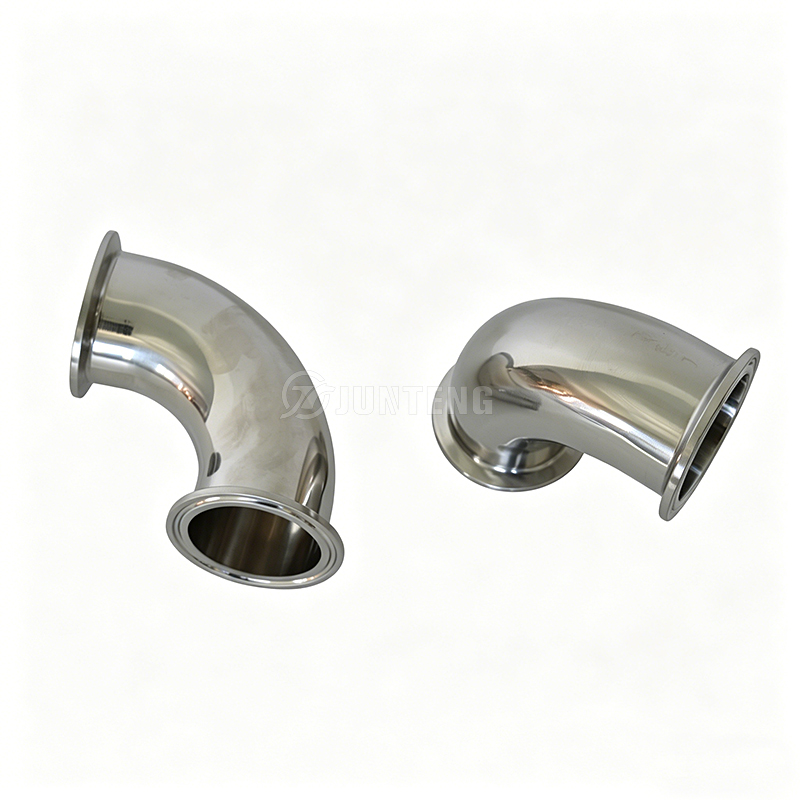

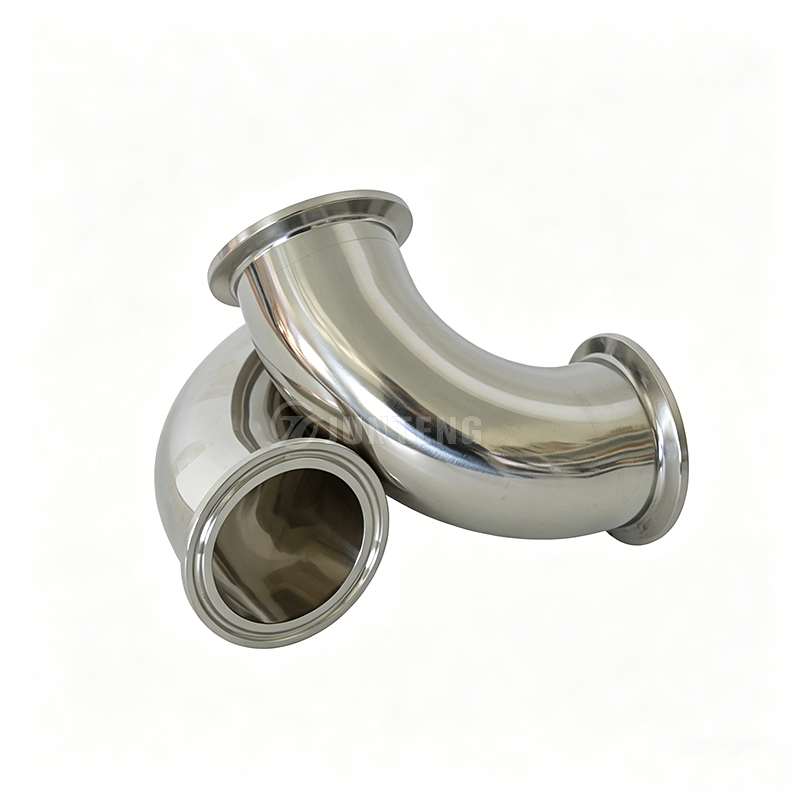

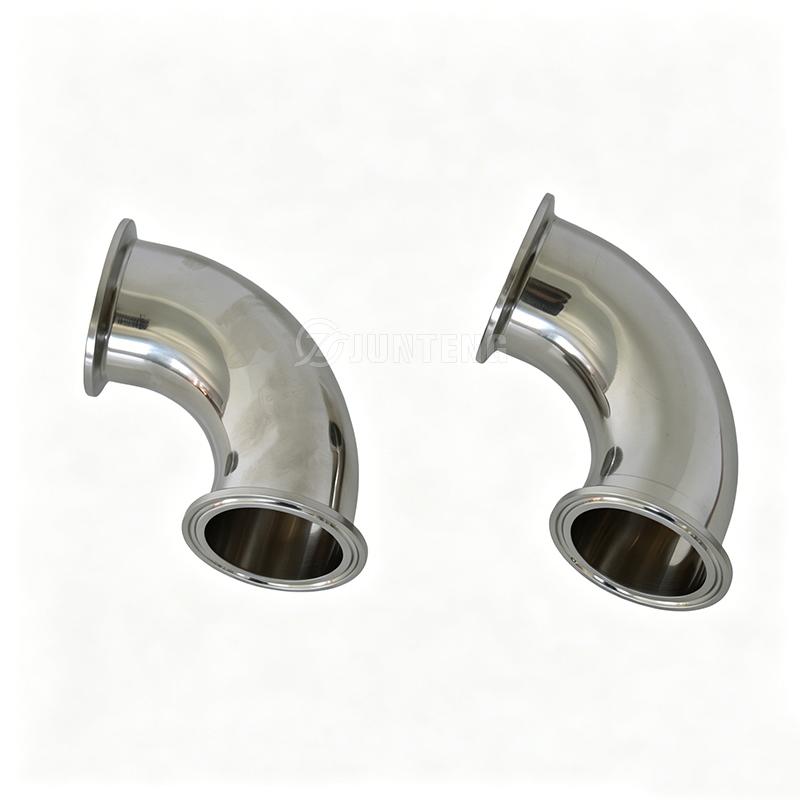

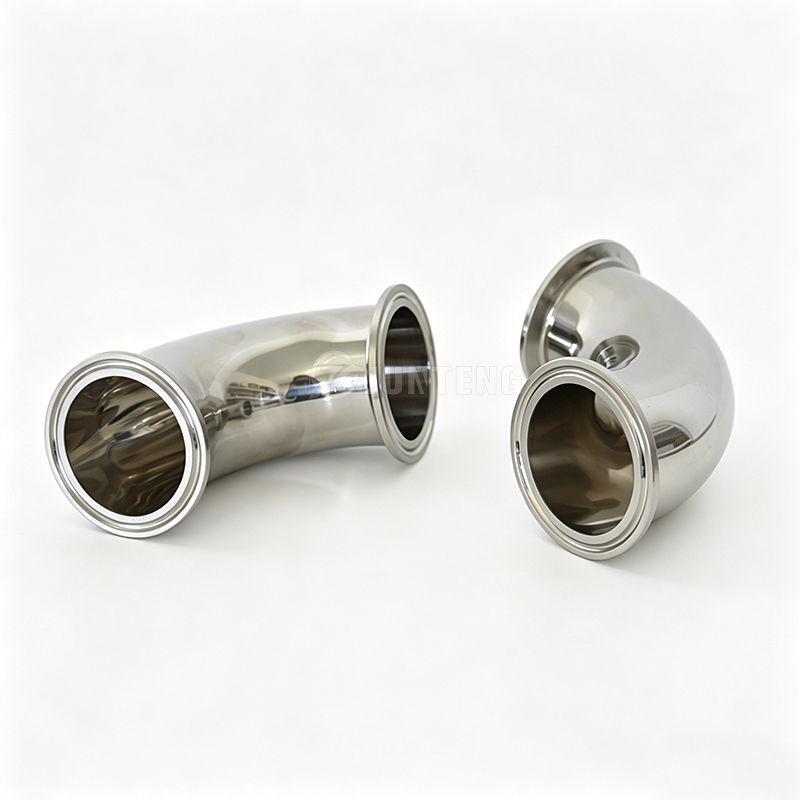

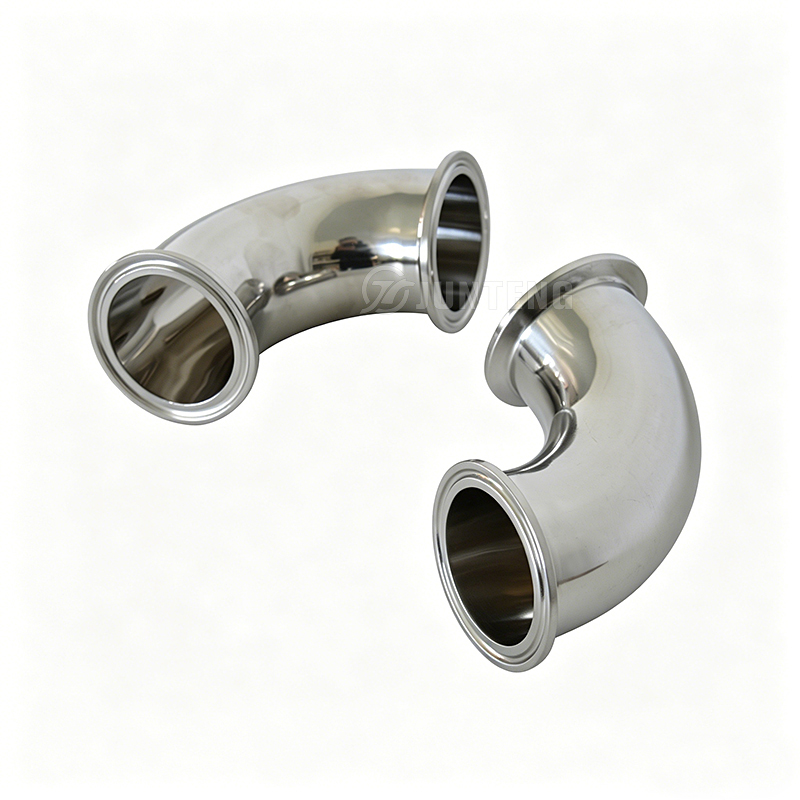

A tri-clamp elbow is a sanitary stainless steel pipe fitting used to create 45-degree or 90-degree turns in processing lines while maintaining a secure, leak-proof seal. These fittings are essential for connecting pipework in hygienic industries, such as food, beverage, biotech, and pharmaceutical manufacturing.
2. Technical Specification

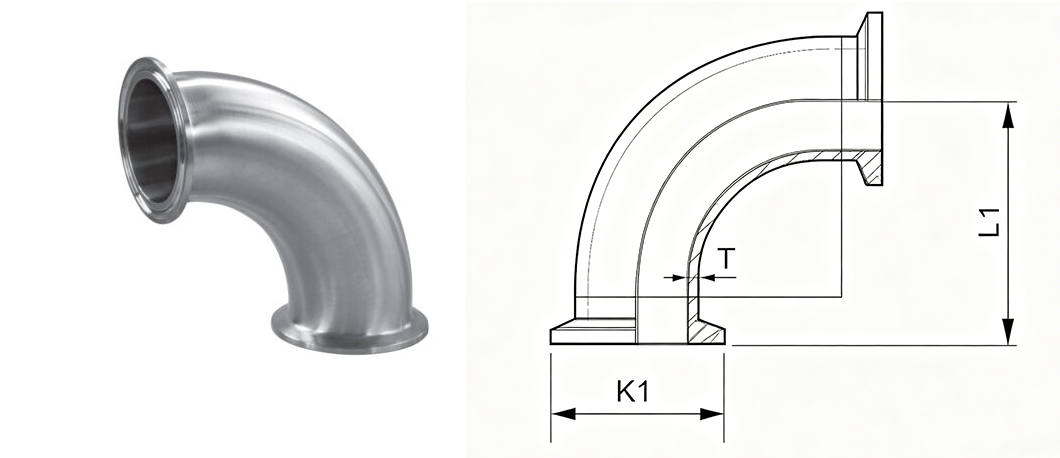

3A Standard
Size | L1 | K1 | T |
1" | 50.8 | 50.5 | 1.65 |
1 1/2" | 69.9 | 50.5 | 1.65 |
2" | 88.9 | 64 | 1.65 |
2 1/2" | 108 | 77 | 1.65 |
3" | 127 | 91 | 1.65 |
4" | 168.2 | 119 | 2.1 |
This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!
3. Key Applications of Tri Clamp Elbows:
Brewing and Beverage: Used for wort plumbing, directing flow in beer transfer lines, and mounting valves on fermenters.
Food and Dairy Processing: Used for transferring fluids, ensuring a hygienic seal that complies with 3A standards.
Pharmaceutical and Biotech: Employed in production lines where high-purity, corrosion-resistant, and easily cleaned connections are critical.
System Configuration: Used to create versatile, flexible pipe configurations, allowing for efficient, leak-tight 90° or 45° bends.
