1. Brief Introduction of Products

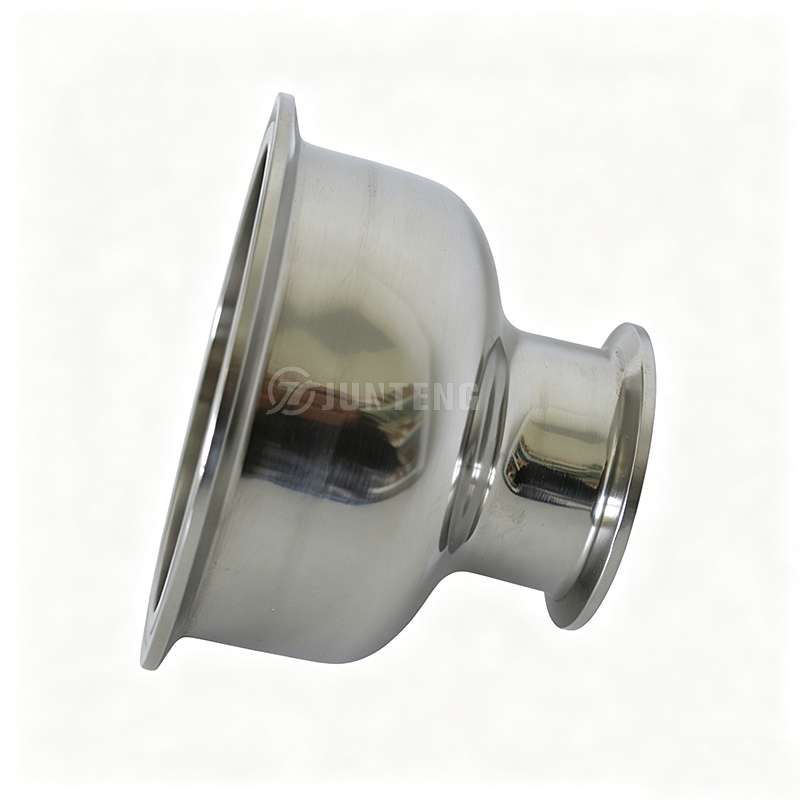

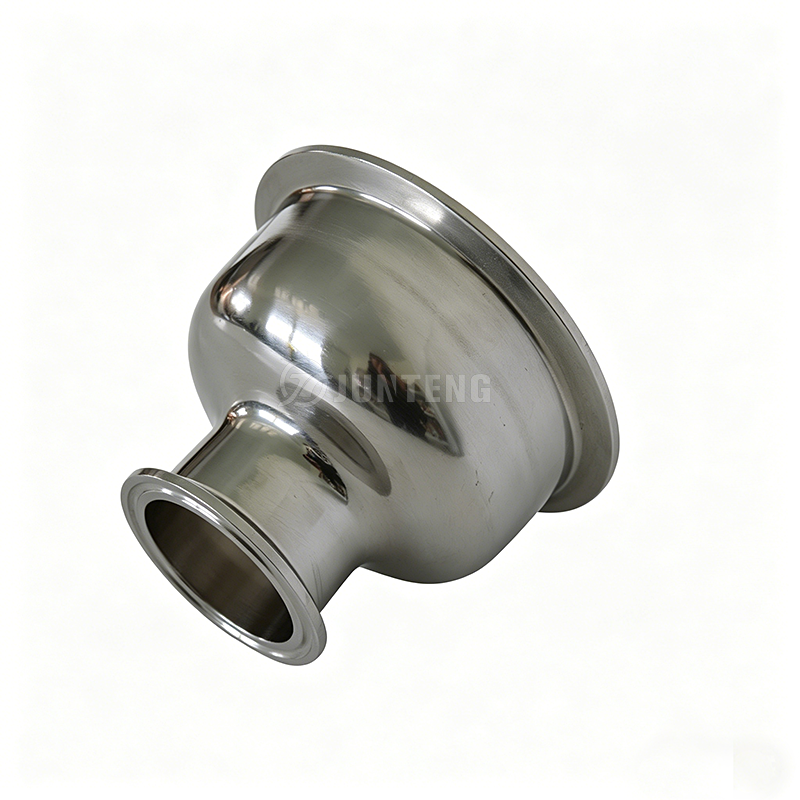

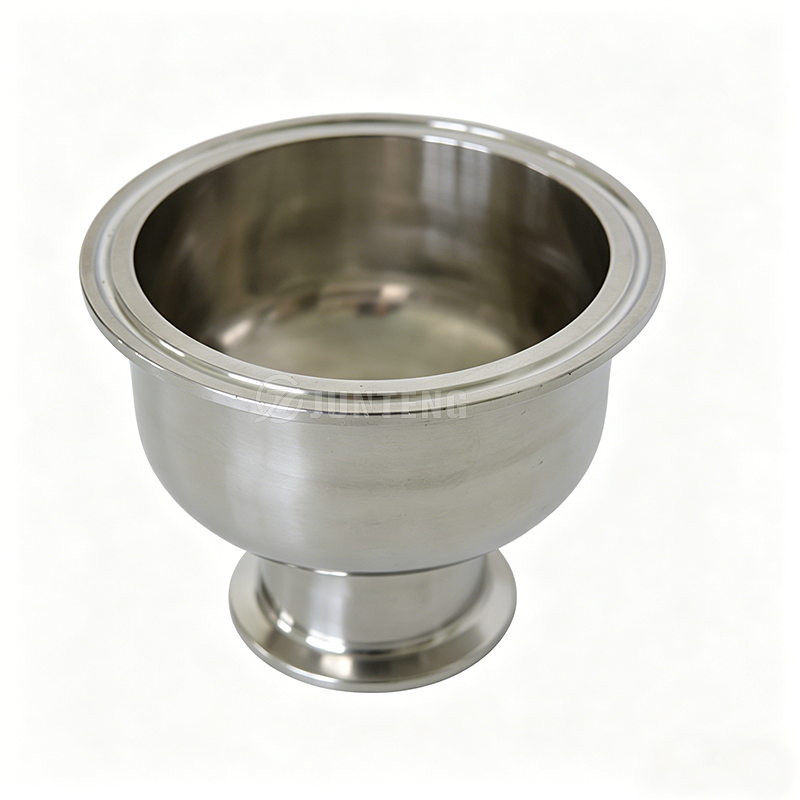

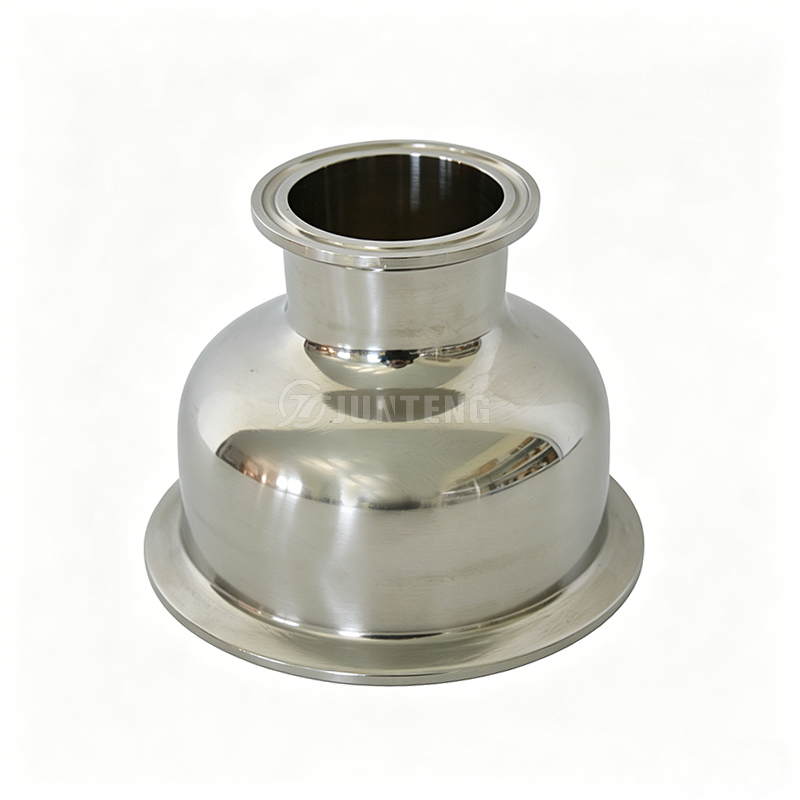

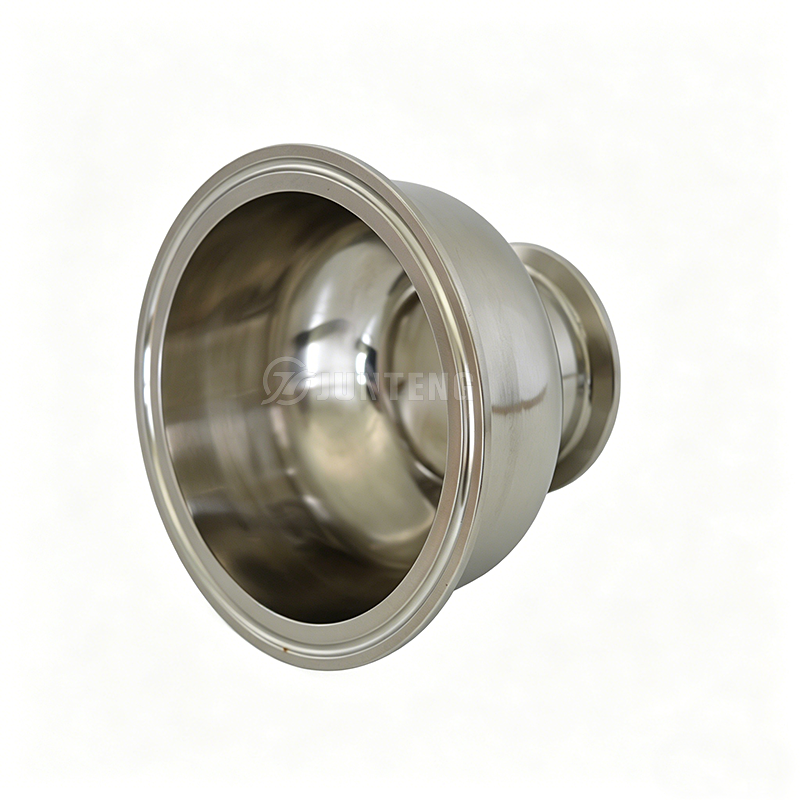

Tri clamp bowl reducers are sanitary fittings designed to connect two different sized pipes or components, typically used when headroom is limited, or a significant reduction in diameter is required. They feature a, often, 304 stainless steel hemispherical design that offers superior sanitary performance in brewing, distilling, and extraction applications.
2. Technical Specification
3A Standard

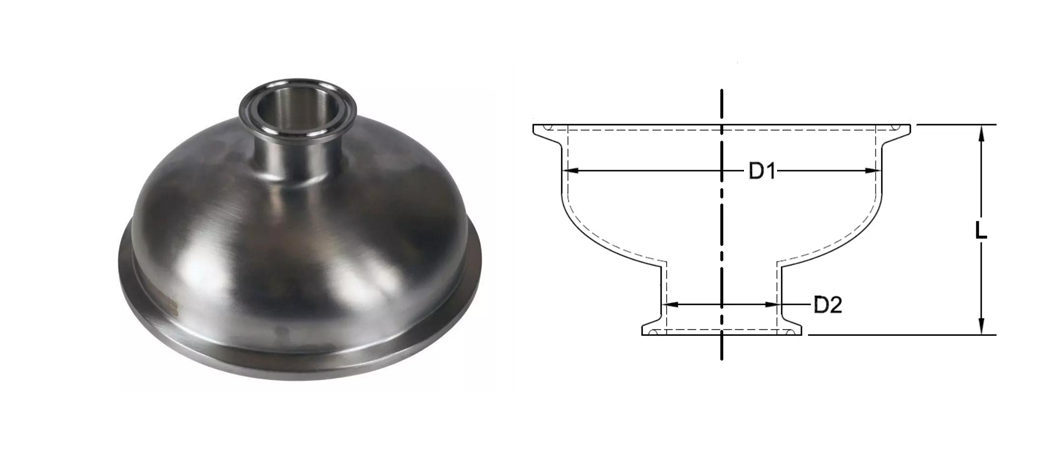

D1 x D2(inches) | L(mm) |
3" × 1½" | 73 |
3" × 2" | 79 |
4" × 1½" | 80 |
4" × 2" | 77 |
6" × 1½" | 93 |
6" × 2" | 93 |
8" × 1½" | 107 |
10" × 1½" | 128 |
12" × 1½" | 141 |
This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!
3. Key Applications of Tri Clamp Bowl Reducers:
l Brewing and Distilling: Ideal for connecting large columns to smaller collection containers in distilling setups, or reducing column size in breweries where space is constrained.
l Botanical Extraction: Used in extraction systems as collection tank bottoms, allowing efficient drainage of extracted oil.
l System Transitions: Connects larger diameter piping to smaller piping while minimizing space requirements, such as moving from 6-inch to 2-inch or 4-inch to 1.5-inch lines.
l Lids or Covers: When flipped, they act as dome-shaped lids or caps for tanks, spools, or pipe ends, often featuring an NPT port for sensors or valves.
