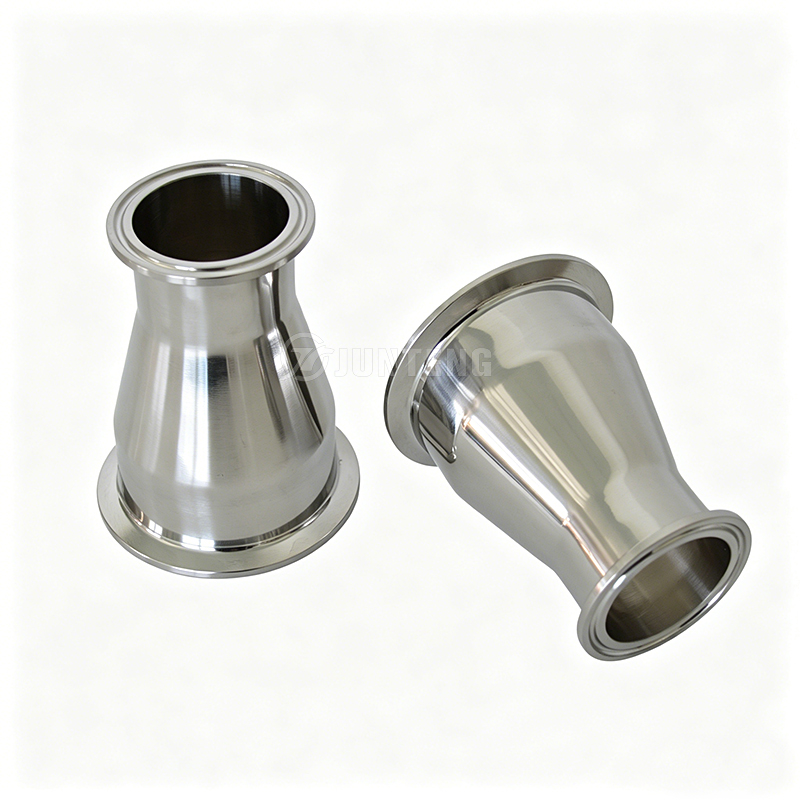

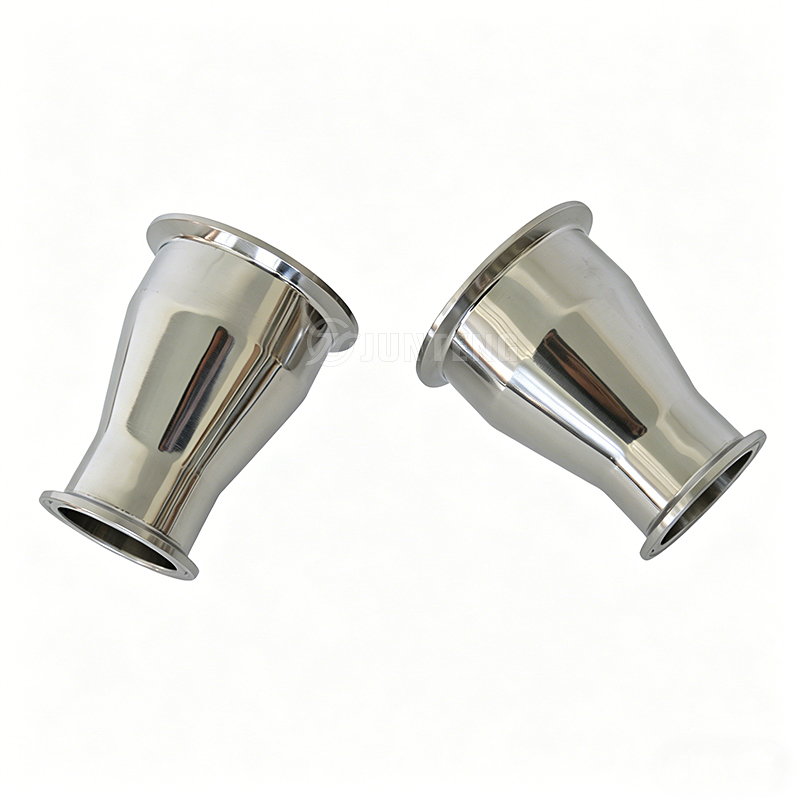

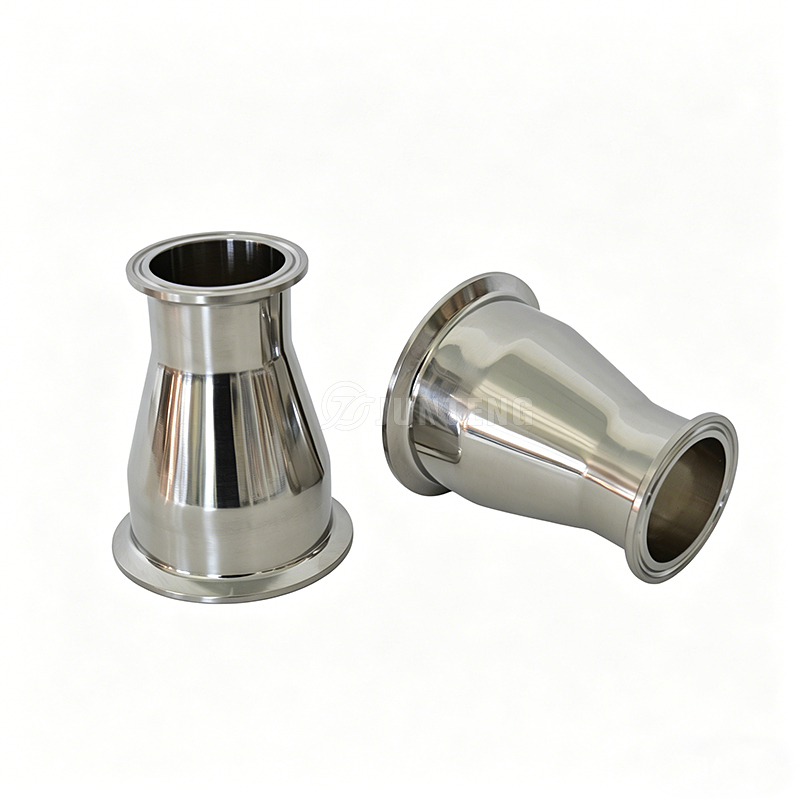

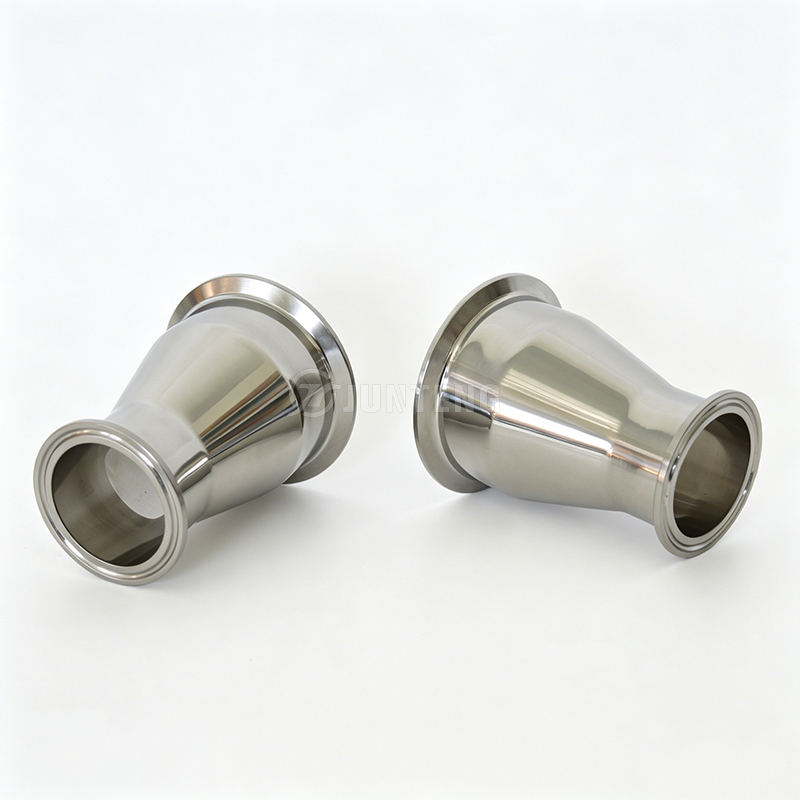

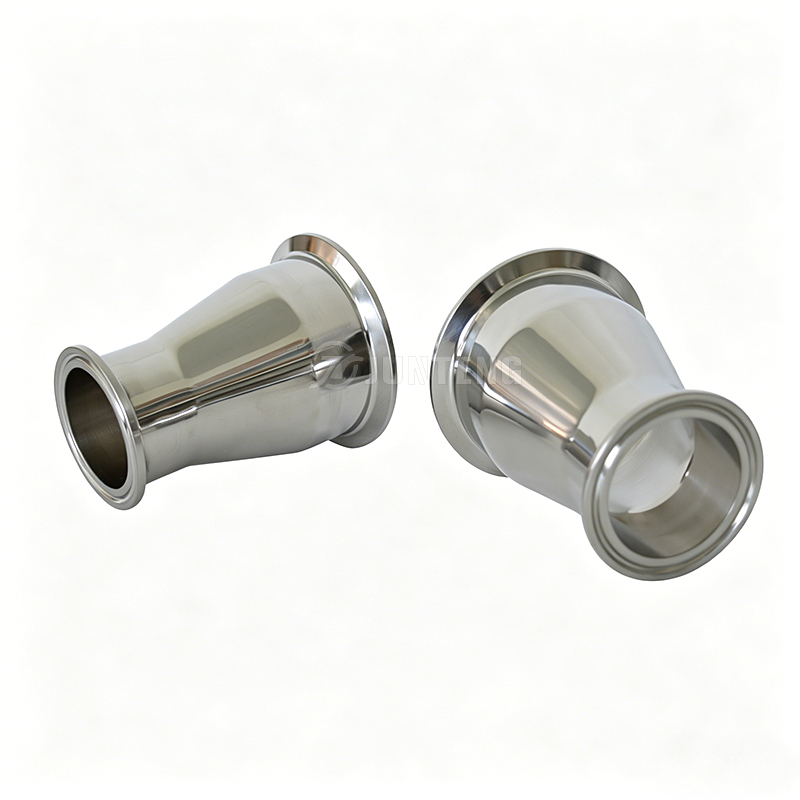

DIN Sanitary SS304 SS316L Concentric Tri Clamp Reducer Stainless Steel Pipe Fitting

1. Brief Introduction of Products:

Tri-clamp concentric reducers are sanitary fittings used to transition between different pipe sizes in food, beverage, and pharmaceutical processes, featuring a conical shape that connects the centerline of both pipes. They are primarily used in vertical piping, pump discharges, and high-purity applications to facilitate smooth flow and reduce agitation. Due to their cone shape, tri-clamp concentric reducers aren't suited for all your production line reduction needs. Tri-clamp concentric reducers are best used in the following positions in your homebrew system:

1. Vertical flow applications for those multi-tiered setups
2. Horizontally as an increaser, going from smaller to larger equipment, as pooling may result if concentric reducers are used to actually reduce in a horizontal position

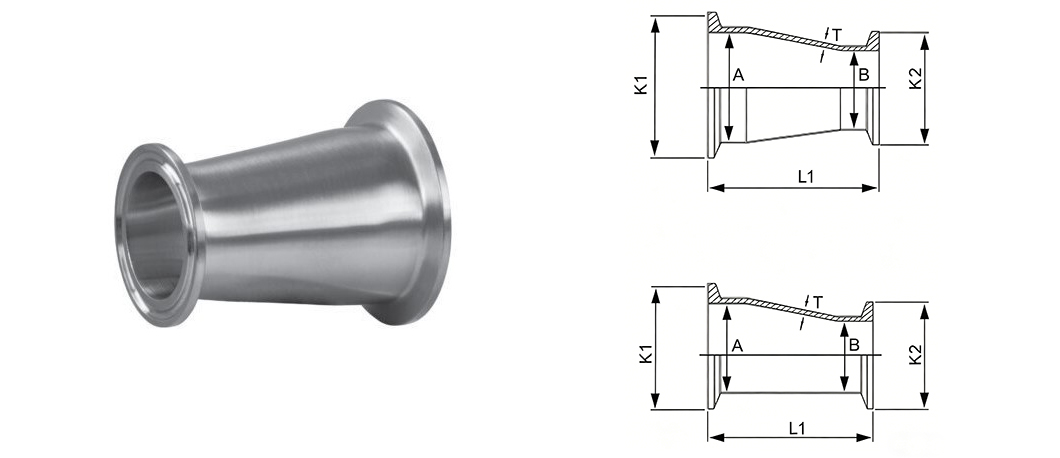

2. Technical Specification:

      3A Standard

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

• Vertical Pipe Systems: Best suited for vertical flow applications, as the conical shape allows for even, consistent reduction.

• Horizontal Increaser: When used horizontally, it is best applied as an increaser (connecting a smaller pipe to a larger one) rather than a reducer, to prevent fluid from pooling in the bottom of the fitting.

• Pump Discharge/Suction: Used in pump systems, including those handling slurries and abrasive liquids, due to its symmetrical, low-turbulence design.

• Sanitary Process Industries: Widely used in dairy production (cheese vats), pharmaceutical setups (connecting columns to tanks), and beverage manufacturing (carbonation lines).

• Equipment Connection: Allows for easy assembly/disassembly (via Tri-Clamp) of different sized pipe fittings in hygienic applications, typically available in 304 or 316L stainless steel.
