1. Brief Introduction of Products:

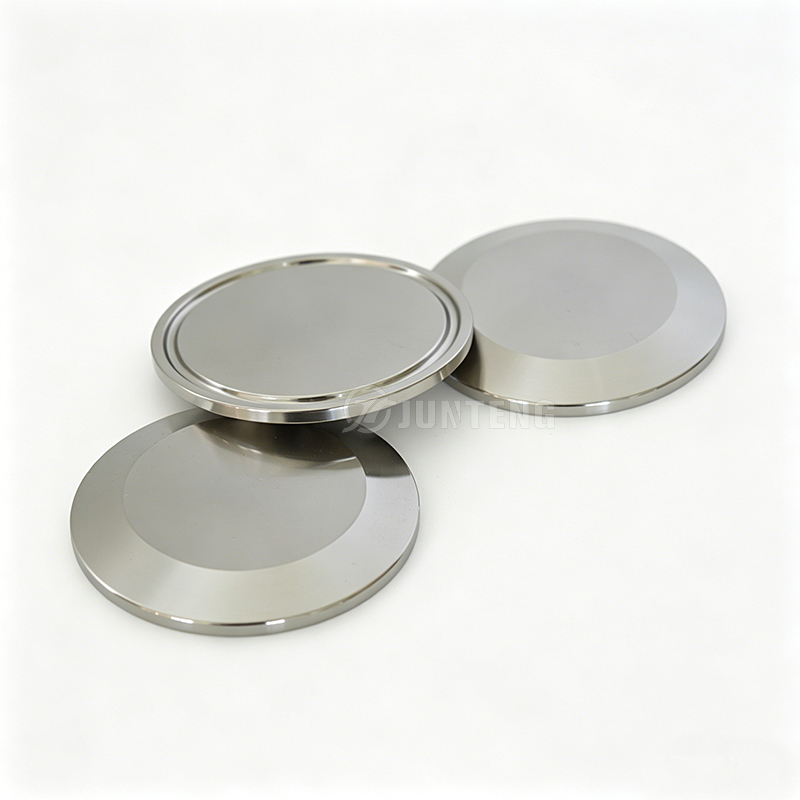

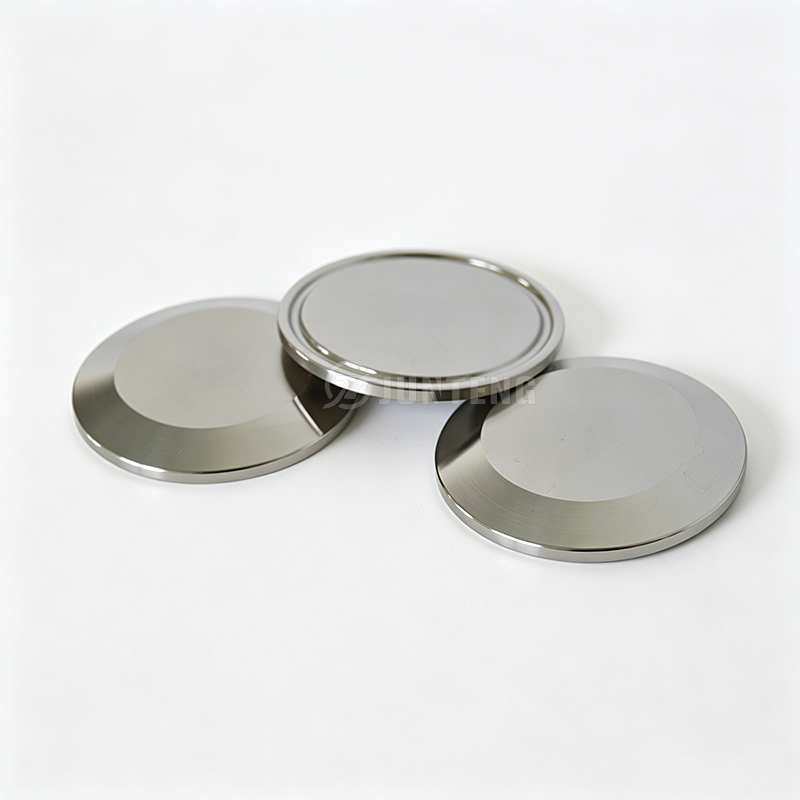

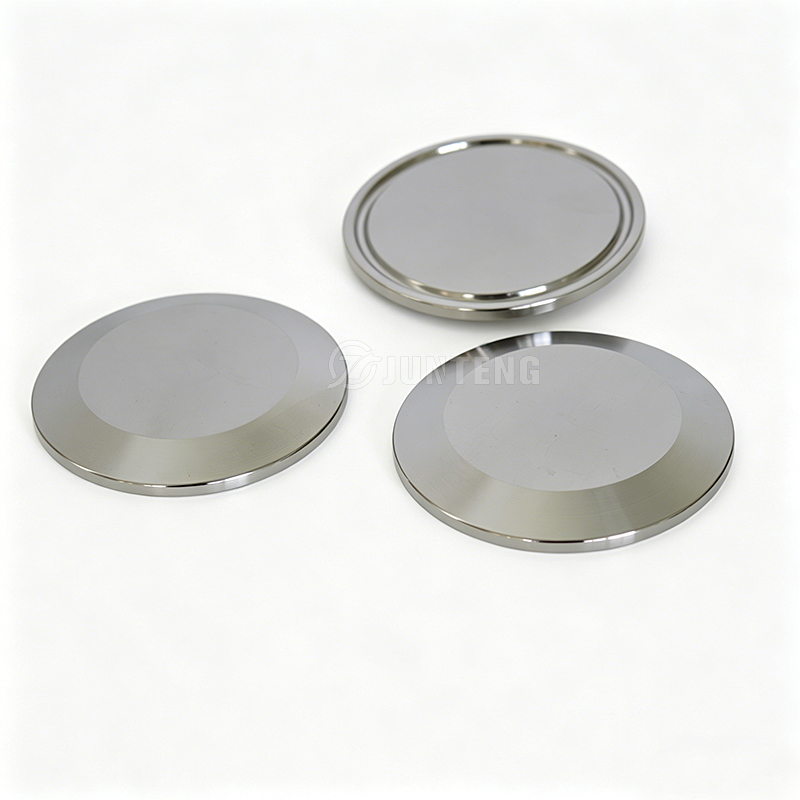

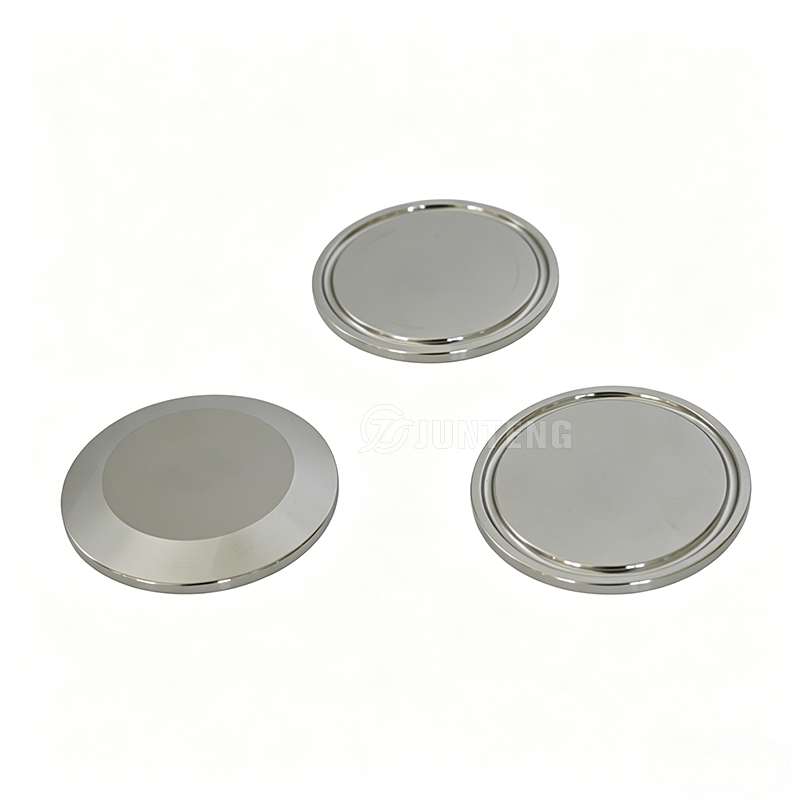

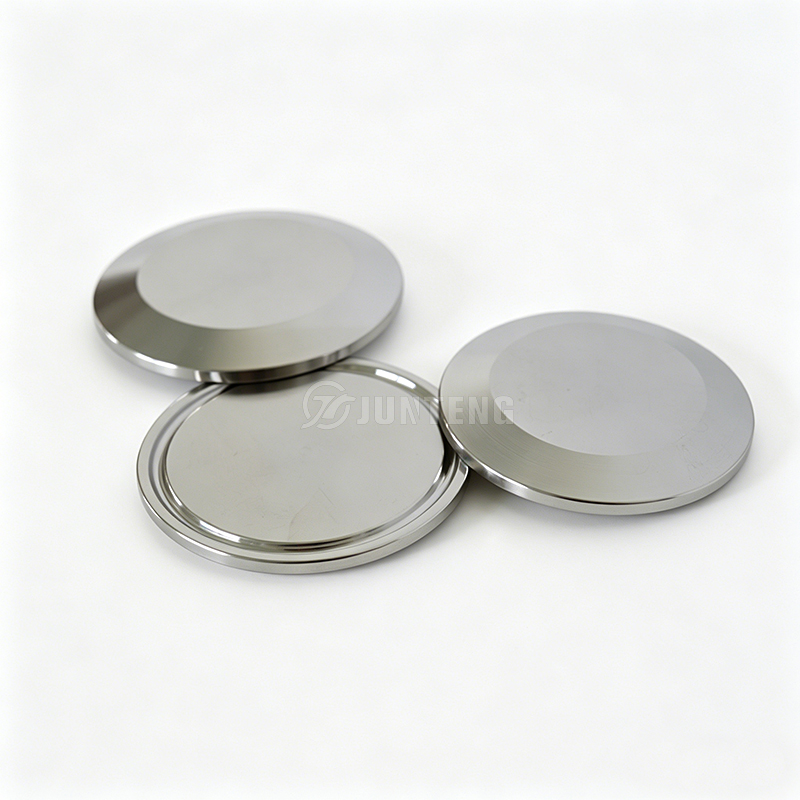

A 16AMP solid end cap is a sanitary, Tri-Clamp compatible fitting made of stainless steel (304 or 316L) used to securely cap off pipe lines, valves, or pumps in hygienic environments. They offer a non-permanent, 3-A certified seal for quick access in food, beverage, pharmaceutical, and dairy processing lines. This product is manufactured in accordance with 3A Standards for sanitary grade line processing in the food, beverage and pharmaceutical industries. This product is typically in stock in various sizes and can be shipped out the same day as your order for popular sizes. What are the advantages of tri clamp end caps?
1. Sanitary Sealing: They maintain hygiene and prevent debris from entering the process line, crucial for food, beverage, and biopharm applications.
2. Quick Assembly & Disassembly: Using a clamp and gasket, they allow for rapid installation, removal, and maintenance without tools.
3. Leak-Proof Performance: Constructed from durable, high-grade stainless steel, they provide a reliable, secure seal on sanitary ports.
4. Versatile Applications: Ideal for capping unused ports, terminating lines, and sealing tanks.
5. Customization Options: Available with options for center ports, such as for gauges or thermometers.
2. Technical Specification:
3A Standards

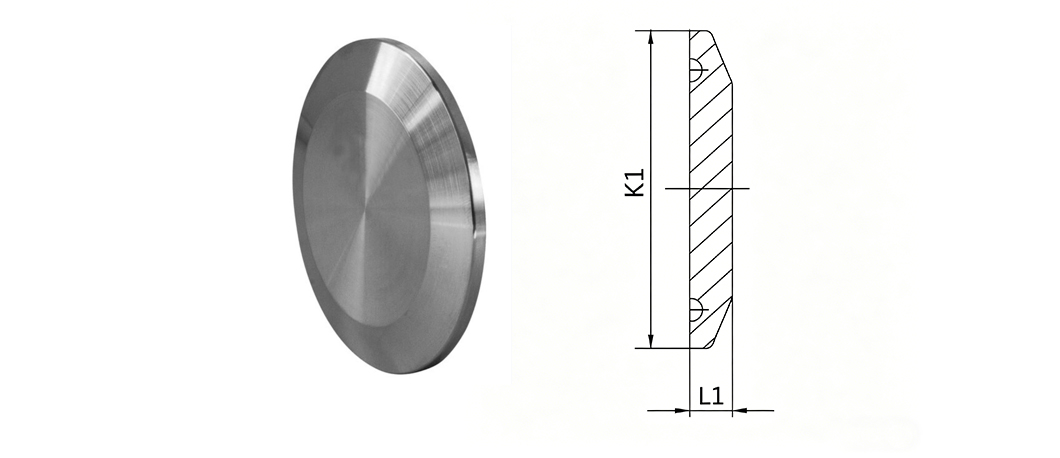

3A | Size DINT | ISO1127 | K1 | L1 |
1/2"-3/4" | DN10-20 | DN17.2-21.3 | 25.2 / 34 | 6.4 |
1"-1 1/2" | DN25-40 | DN26.9-42.4 | 50.5 | 6.4 |
2" | DN50 | 48.3 | 64 | 6.4 |
2 1/2" | — | 60.3 | 77.5 | 6.4 |
3" | DN65 | 76.1 | 91 | 6.4 |
— | DN80 | 88.9 | 106 | 7.9 |
4" | DN100 | — | 119 | 7.9 |
— | DN125 | 114.3 / 139.7 | 130 / 155 | 7.9 / 11.1 |
6" | — | — | 166.8 | 11.1 |
— | DN150 | 168.3 | 183 | 11.1 |
8" | — | — | 217.7 | 11.1 |
— | DN200 | 219.1 | 233.5 | 11.1 |
10" | — | — | 268.5 | 11.1 |
12" | — | — | 319.3 | 11.1 |
This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!
3. Key Applications and Use Cases:
1. Process Line Termination: Capping unused tri-clamp fittings or terminating process lines.
2. Sanitary Sealing: Providing a leak-proof, easy-to-clean, and sanitary seal for pharmaceutical and brewery equipment.
3. Protection (Dust Caps): Using plastic or metal caps to protect sanitary pipe ends from damage or contamination when not in use.
4. Instrumentation Ports: Specialized end caps (thermometer caps) contain ports for installing thermometers, sensors, or other instrumentation into the process line.
5. CIP (Clean In Place): Allowing for easy cleaning of piping systems by closing off ends securely.
6. Vertical Stacking/Drainage: Serving as clean-out or sanitation ports on the top of vertical tri-clamp stacks, or acting as reducers in horizontal flow applications.
