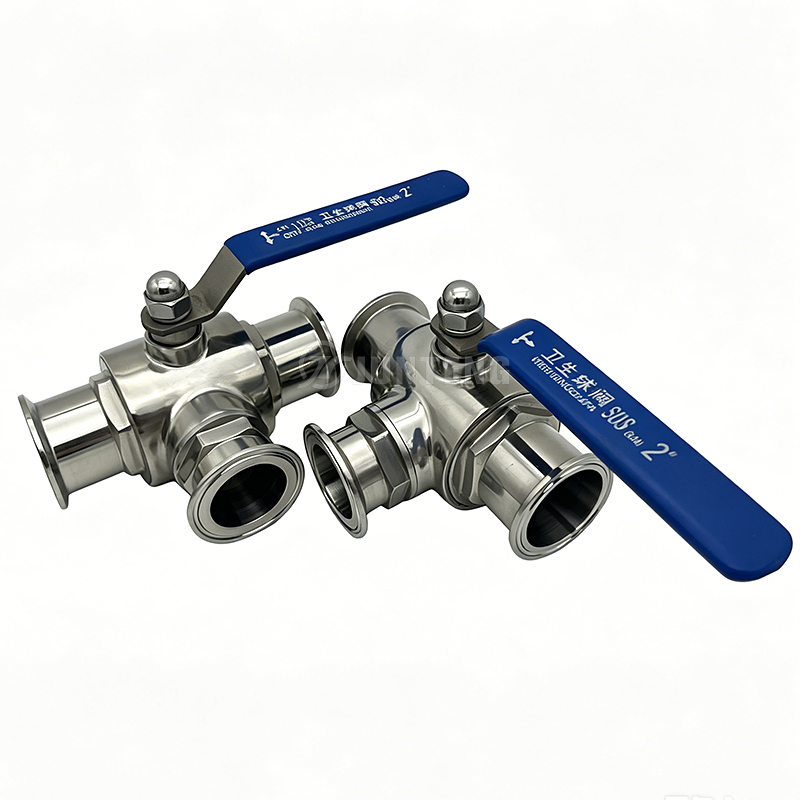

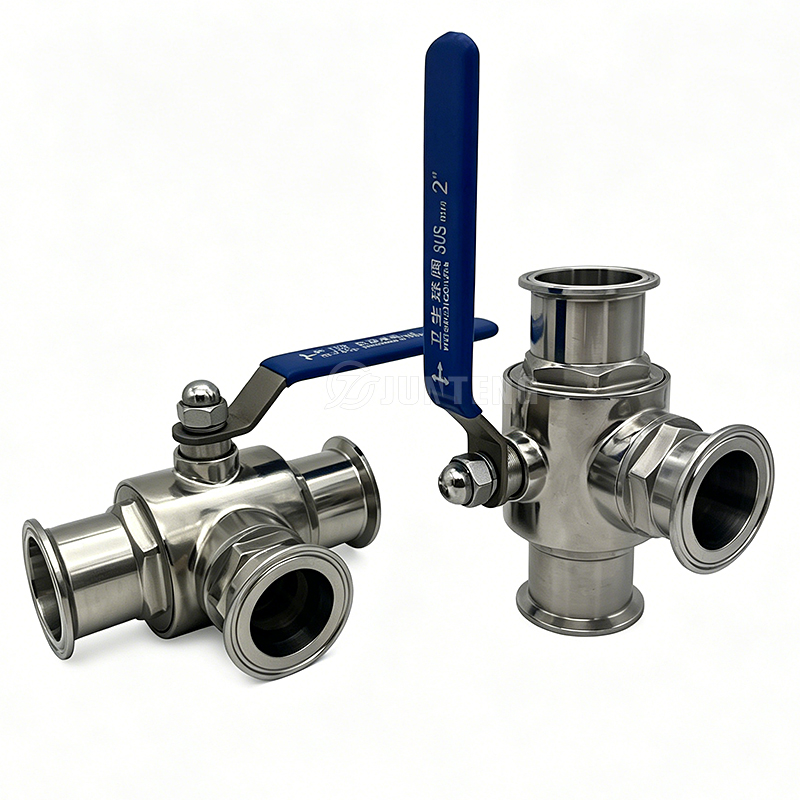

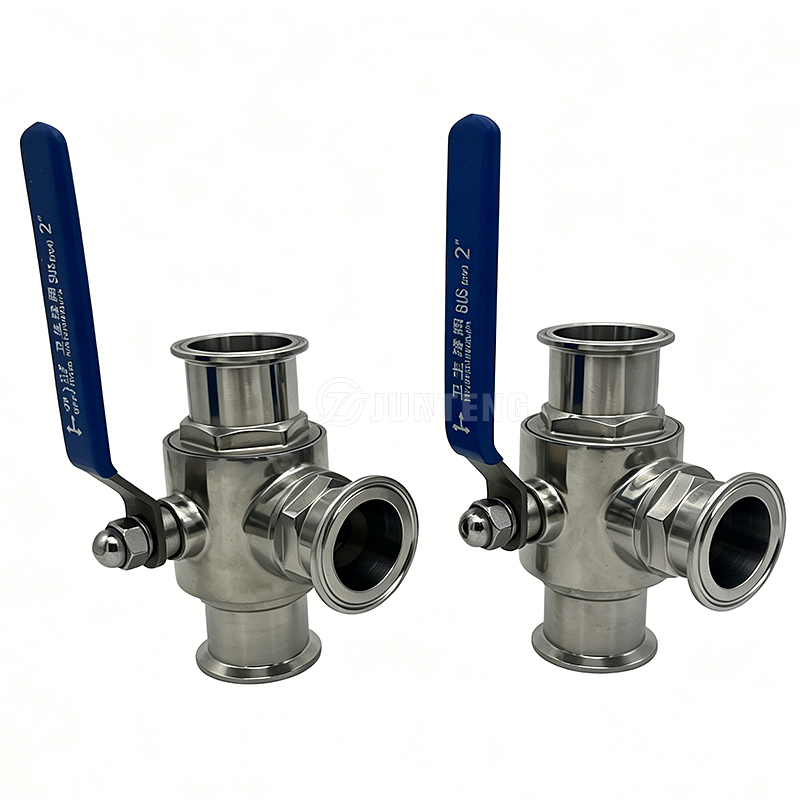

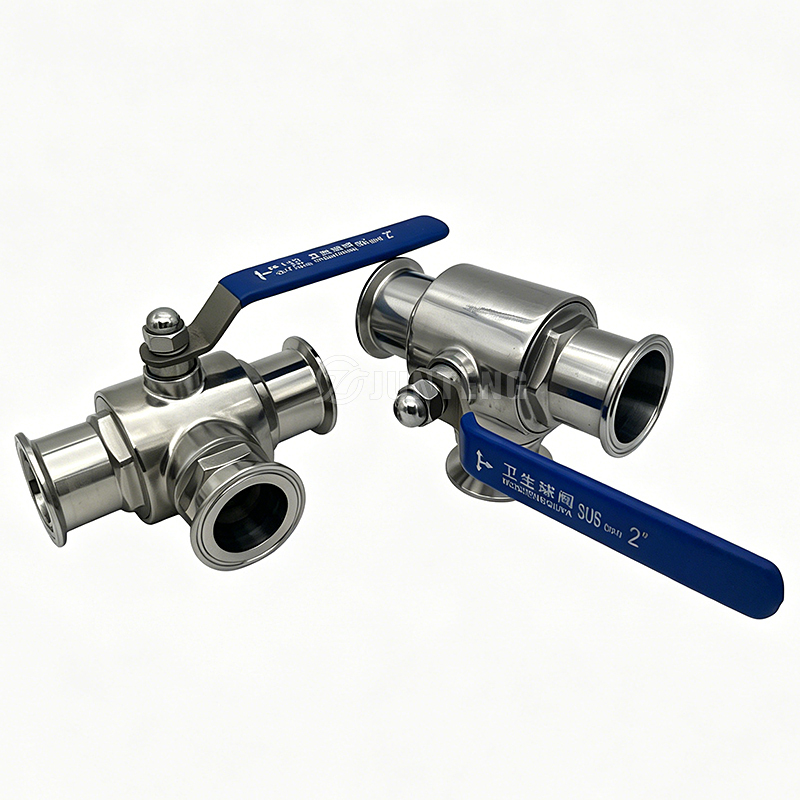

Manual Operated Stainless Steel Tri-Clamp Three-Way 3 Way Ball Valve

1. Brief Introduction of Products:

A tri-clamp 3-way ball valve is a sanitary valve that controls or redirects fluid flow across three different ports.

Key Configurations：

Inside the valve is a rotating ball bored with an internal channel. Depending on the ball's design, it operates in two ways:

• L-Port: Shaped like an "L," this configuration allows you to divert flow from a central port to either the left or right port. It also allows you to shut off flow entirely.

• T-Port: Shaped like a "T," this configuration connects all three ports at once. It is primarily used for mixing fluids from two inlets into one, or for distributing flow from one inlet into two directions.

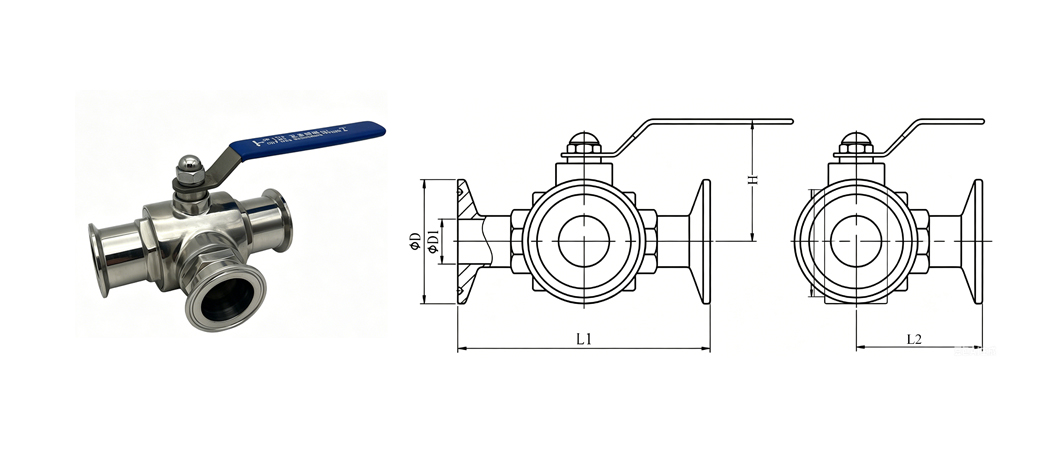

2. Technical Specification:

 3A/ISO/IDF/ASME Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

3. Key Applications and Use Cases:

• Breweries & Distilleries: Used to divert wort, beer, or wash between different fermenters or tanks.

• Extraction & Processing: Allows operators to route solvents or botanical extracts in different directions without installing multiple single valves.

• Pharmaceuticals: Ideal for sterile environments where crevices cannot exist and valves must be frequently sterilized.
