Sanitary Excellent Workmanship 0.5" - 4" SS304 Quick-Install Check Valve

1. Brief Introduction of Products:

A Tri-Clamp (or Tri-Clover) check valve is a sanitary one-way valve used in piping systems to prevent fluids from flowing backward. It features standard Tri-Clamp connection ends, making it easy to install, disassemble, and clean for hygienic applications.

2. How It Works?

• One-Way Flow: Fluid is allowed to flow forward, but as soon as the forward pressure drops or stops, the valve automatically closes.

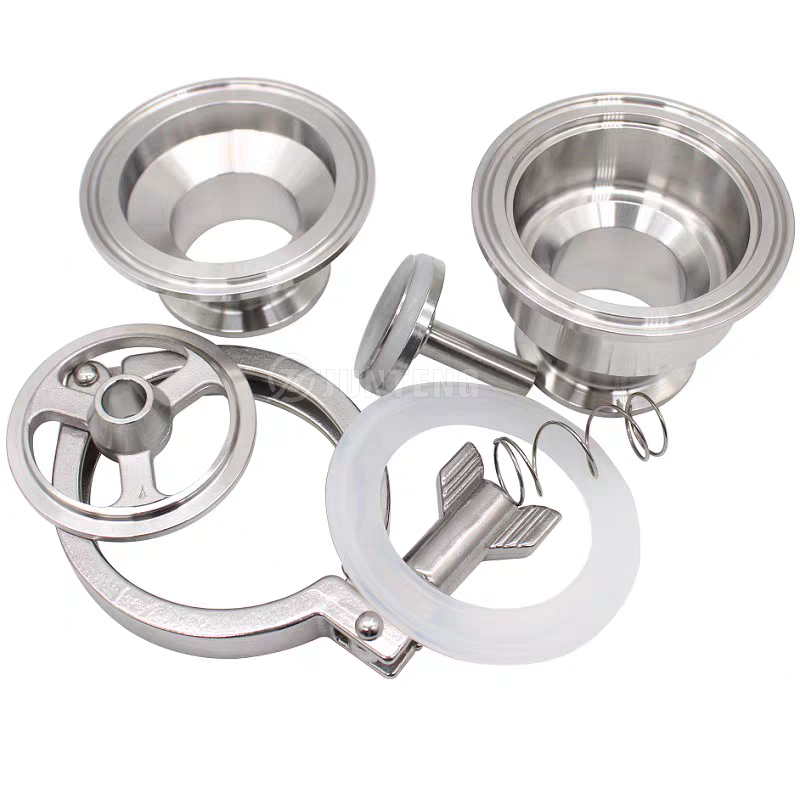

• Mechanisms: They typically use either a spring (which pushes a shutter closed when forward pressure drops) or a ball (which falls into the flow path to seal it when flow stops).

3. Key Specifications:

• Materials: Commonly made of high-grade 304 or 316L stainless steel for rust and chemical resistance.

• Sanitary Finish: The internal surfaces are highly polished (e.g.,32 Ra) to prevent bacteria from clinging to the metal.

• Seals: Features food-grade gaskets such as EPDM, Viton, or PTFE.

• Industry Standards: Often certified to meet 3-A Sanitary Standards for food and pharmaceutical safety.

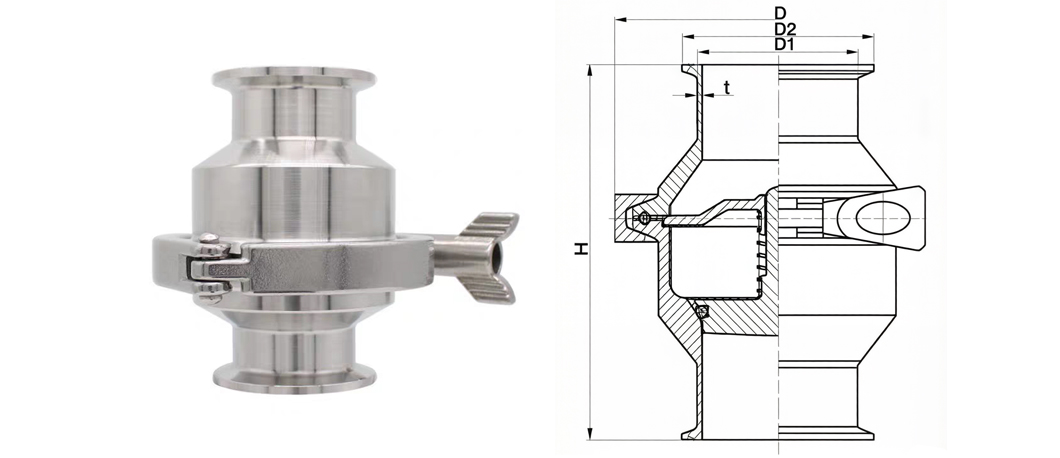

4. Technical Parameters:

    SMS Standards

    DIN Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

5. Key Applications and Use Cases:

These valves are heavily used where sanitation and purity are critical, such as in breweries, dairies, and pharmaceutical plants:

• Pump Protection: Prevents liquids from flowing backward and damaging pumps when they are shut off.

• System Isolation: Stops cross-contamination between different lines or tanks.

• Equipment Safety: Prevents back-pressure from blowing through and damaging delicate equipment like inline filters.
