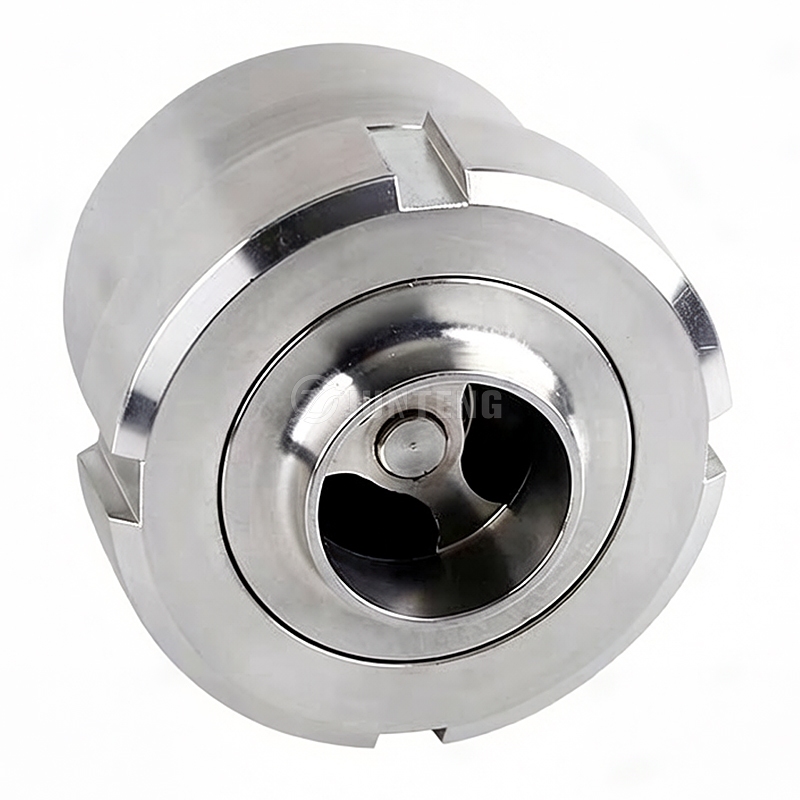

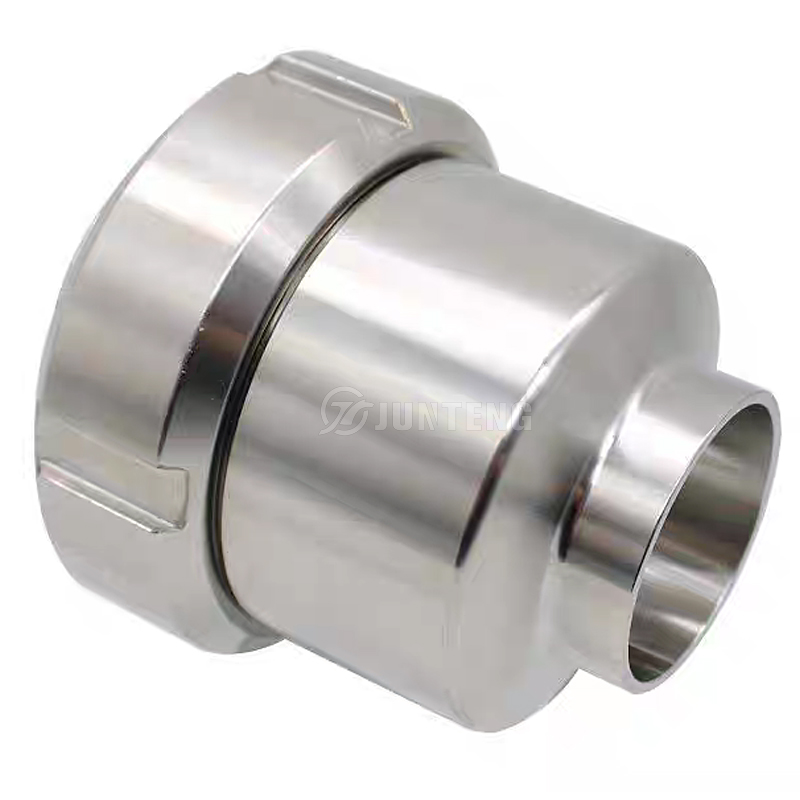

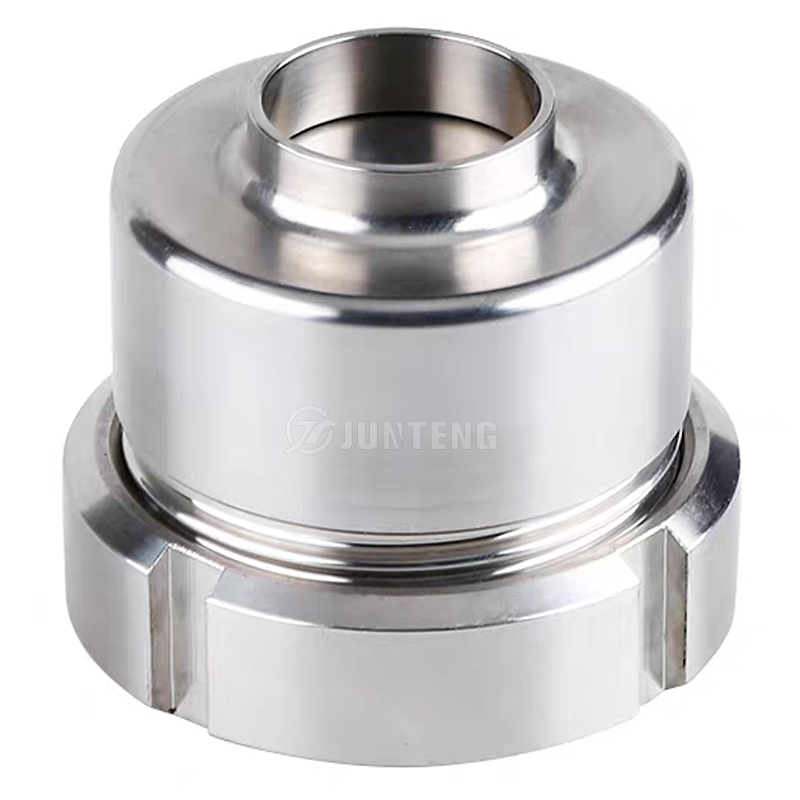

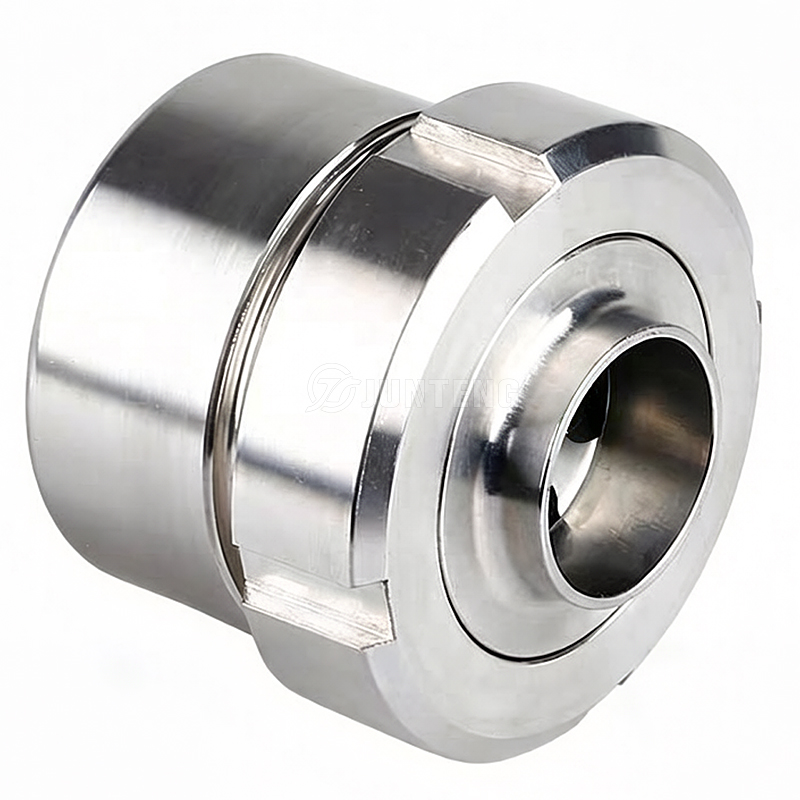

Junteng AISI316L Stainless Steel Gasket Material Selected Sanitary Union Type Check Valve

1. Brief Introduction of Products:

A sanitary union type check valve is a specialized one-way (non-return) valve used in hygienic piping systems. Its built-in union fittings allow the valve to be quickly disconnected and removed for cleaning without having to cut, un-thread, or dismantle the surrounding pipeline.

2. Why the "Union" Design?

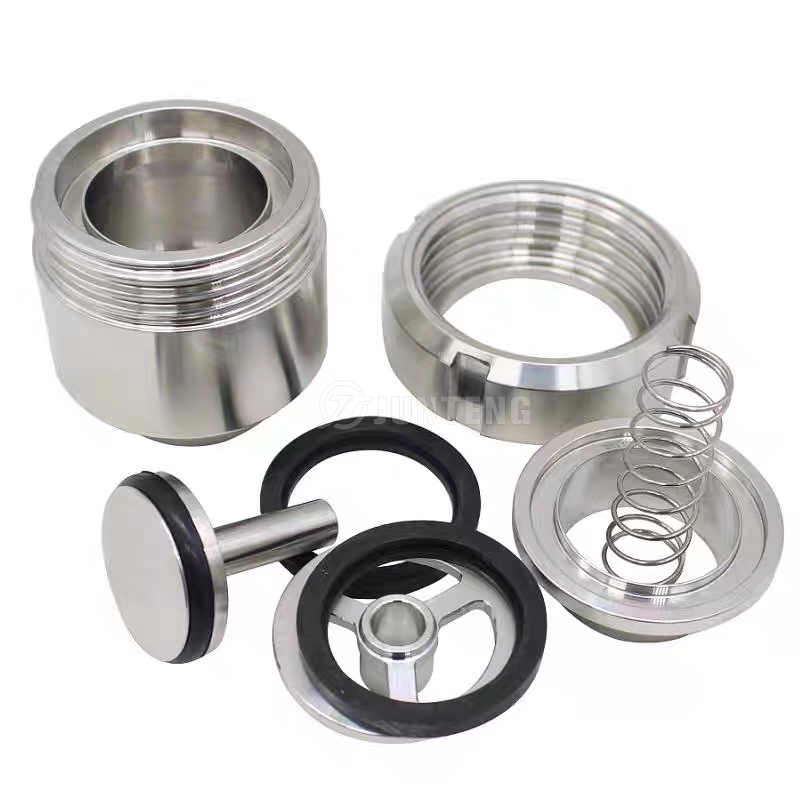

In standard piping, removing a valve often requires dismantling large sections of the pipe. The union design features a multi-piece body connected by heavy-duty threaded nuts. By unfastening these nuts, the center core (the check valve itself) easily drops out for cleaning, gasket replacement, or maintenance.

3. How It Works?

• One-Way Flow: The valve opens automatically when the upstream fluid pressure exceeds the closing force of the valve's internal mechanism. [1, 2]

• Backflow Prevention: When the flow stops or attempts to reverse, gravity and the internal spring (or ball) force the seal closed instantly, blocking backward movement.

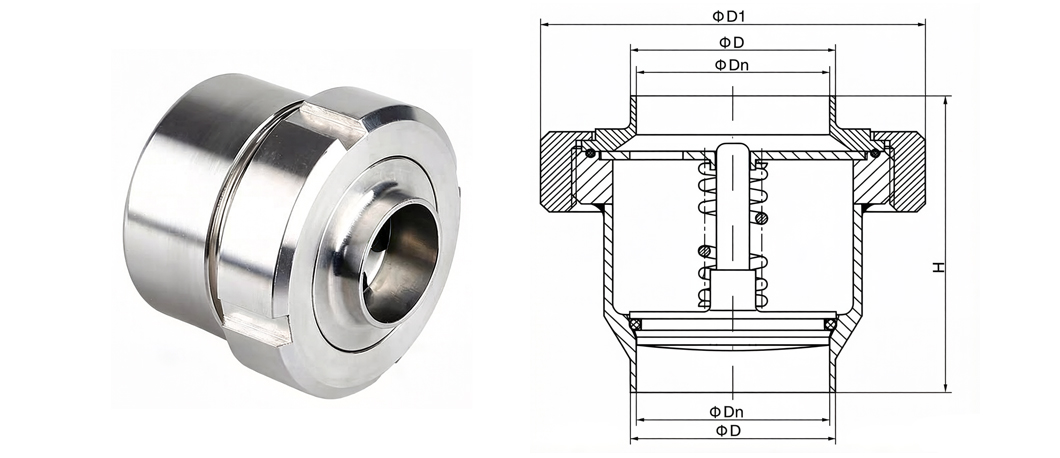

• Internal Mechanism: The internal check component typically consists of either a spring-loaded disk (fast-acting, great for preventing water hammer) or a free-floating ball.

4. Technical Specification:

     SMS Standards

     DIN Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

5. Key Applications and Use Cases:

• Industry Uses: Essential in the food, beverage, dairy, pharmaceutical, and cosmetic industries to prevent cross-contamination caused by backflow.

• Hygienic Design: Typically manufactured from high-grade, polished stainless steel (often 316L) to prevent bacterial buildup and ensure easy Clean-in-Place (CIP) capabilities.

• Connection Type: Features threaded or clamped union ends (often DIN, SMS, or 3A standards) that allow for rapid disassembly for inspection or sterilization.
