A U-type diaphragm valve is a specialized sanitary valve commonly used in pharmaceutical, food, beverage, and dairy indu...
Inquire
1. Brief Introduction of Products:
A pneumatic diaphragm valve is a fluid control device that uses compressed air to regulate the flow of liquids or gases. It features a flexible internal membrane (the diaphragm) that is pressed against a central seat or "weir" by an air-powered actuator to block or control flow.
2. Key Design Features:
• Materials: Product-wetted parts are constructed from high-purity, corrosion-resistant stainless steel (typically 316L). The diaphragm itself is usually made of food/pharmaceutical-grade elastomers like EPDM, Silicone, or PTFE.
• No Dead Legs: They are designed to prevent "dead legs" or crevices where product can pool, which is critical to stopping bacteria and mold growth.
• Cleanability: The smooth internal surfaces are engineered to be easily sterilized and cleaned using Clean-in-Place (CIP) and Steam-in-Place (SIP) methods.

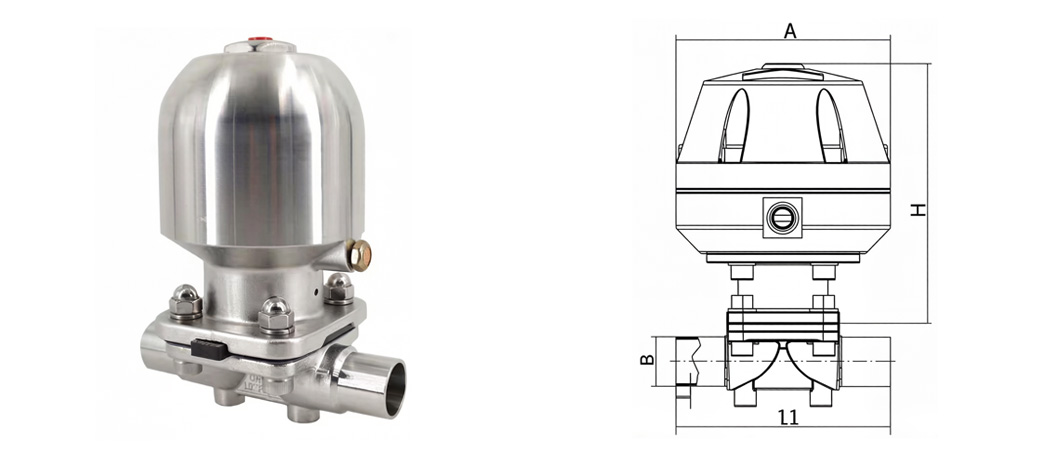

3. Technical Specification:
3A, SMS, ISO Standards
| DIN | Size | A | L1 | H | ||
| 3A | SMS | ISO | ||||
| DN20B×T 22×1.5 | 3/4"B×T 19.1×1.65 | 19B×T 19.1×1.5 | Φ19B×T 19.1×1.5 | 126 | 108 | 146.2 |
| DN25B×T 28×1.5 | 1"B×T 25.4×1.65 | 25B×T 25.4×1.5 | Φ25B×T 25.4×1.5 | 126 | 118 | 146.2 |
| DN32B×T 34×1.5 | 1 1/4"B×T 31.8×1.65 | 32B×T 31.8×1.5 | Φ32B×T 31.8×1.5 | 126 | 127 | 146.2 |
| DN40B×T 40×1.5 | 1 1/2"B×T 38.1×1.65 | 38B×T 38.1×1.5 | Φ38B×T 38.1×1.5 | 126 | 146 | 146.2 |
| DN50B×T 52×1.5 | 2"B×T 50.8×1.65 | 51B×T 50.8×1.5 | Φ51B×T 50.8×1.5 | 126 | 190 | 146.2 |
| DN65B×T 70×2 | 2 1/2"B×T 63.5×1.65 | 63B×T 63.5×2 | Φ63B×T 63.5×2 | 126 | 216 | 146.2 |
This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!
4. Key Applications and Use Cases:
Because they preserve purity, these valves are an industry standard in:
• Pharmaceuticals and Biotech: Used in the production of sterile drugs, injectables, and vaccines.
• Food and Beverage: Utilized in dairy processing, brewing, and winemaking.
• Cosmetics: Found in manufacturing lines for lotions, creams, and soaps.
