Forged Stainless Steel 316 3 Way Pharmaceutical Clamp Manual Diaphragm Valve

1. Brief Introduction of Products:

Tri-clamp three-way diaphragm valve is a sanitary flow-control device used to divert, mix, or isolate fluids. It features three ports connected via quick-release sanitary clamps and utilizes a flexible diaphragm to regulate or redirect flow, ensuring a highly hygienic, crevice-free fluid path.

2. Structure and Operation

A 3 way diaphragm valve is special because of its design. It has three ports, not just two. This lets it control fluid in more ways. The main part of the valve has a weir. The weir helps guide where the fluid goes. A soft diaphragm sits above the weir. The diaphragm keeps the fluid away from moving parts. The compressor pushes the diaphragm down. This blocks or lets fluid flow. The bonnet and handwheel hold the diaphragm in place. They let people change the valve by hand.

3. What Is a 3 Way Diaphragm Valve?

At its core, a 3 way diaphragm valve is like a T junction controlled by a flexible diaphragm. Compared to a standard 2 way (on/off) diaphragm valve, the 3 way variant has three ports arranged in either:

T port (mixing/diverting): Combines two inlets into one outlet, orแบ่ง one inlet into two outlets at various positions.

L port (sampling/diverting/U body): Directs flow from one port to either of two others without mixing.

These configurations are often used in systems requiring fluid mixing (e.g. CIP supply with detergents), diverting, or sampling operations in sanitary loops.

Industries such as pharmaceuticals, food & beverage, and biotech heavily rely on 3 way valves for sterile sampling, manifold switching, and clean-in-place (CIP)/sterilize-in-place (SIP) operations.

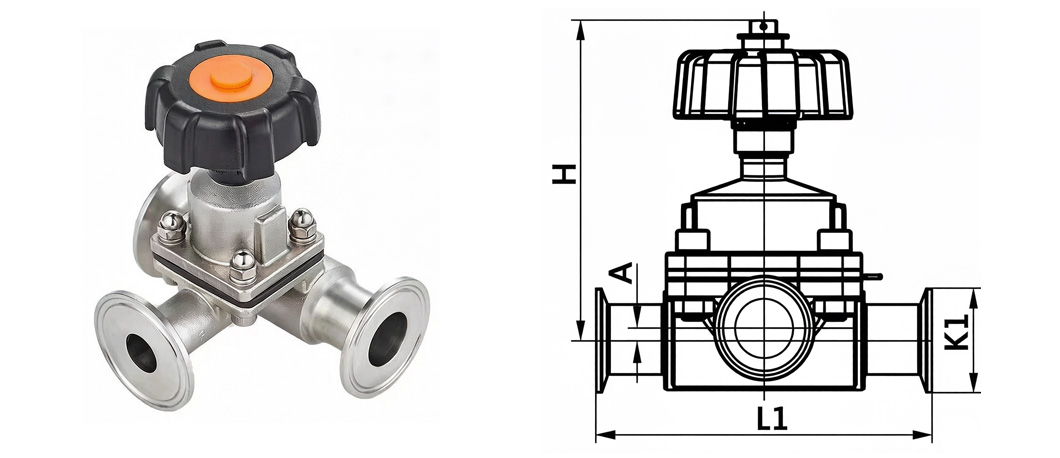

4. Technical Specification:

      DIN Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

5. Key Applications and Use Cases:

• Pharmaceutical & Biopharma: Essential for sterile processing lines, WFI (water for injection) systems, and aseptic fluid transfer where zero contamination is required.

• Food, Dairy & Beverage: Used in processing lines for milk, wine, and brewing where daily clean-in-place (CIP) and sterilize-in-place (SIP) processes are necessary.

• Semiconductor & Electronics: Utilized for ultrapure water (UPW) systems and corrosive chemical delivery lines to prevent particulate buildup and maintain ultra-clean standards.

• Chemical Processing: Deployed to handle highly corrosive acids, bases, and abrasive slurries without damaging the valve's working parts.
