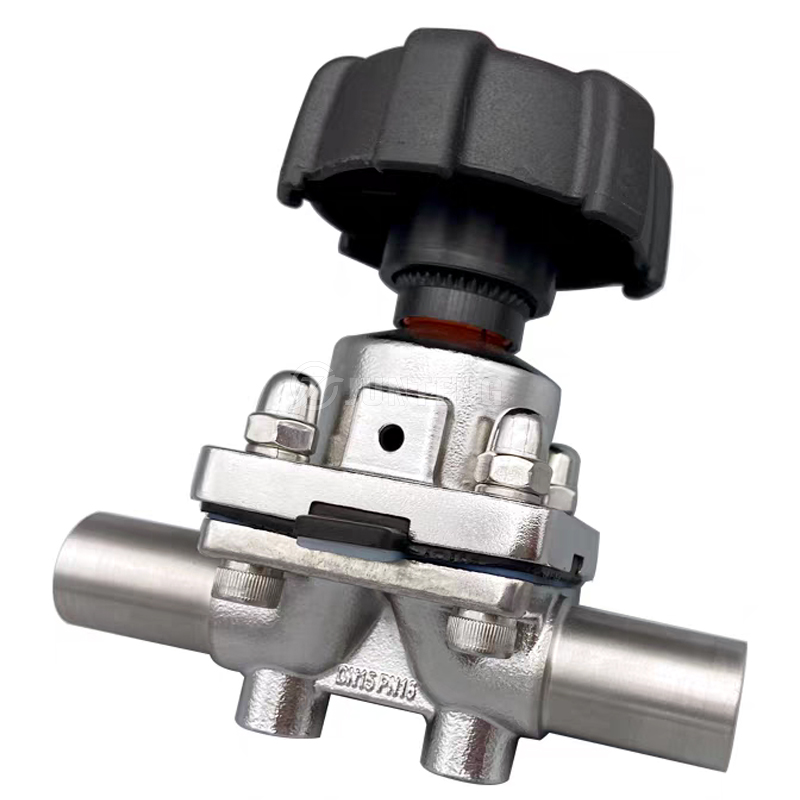

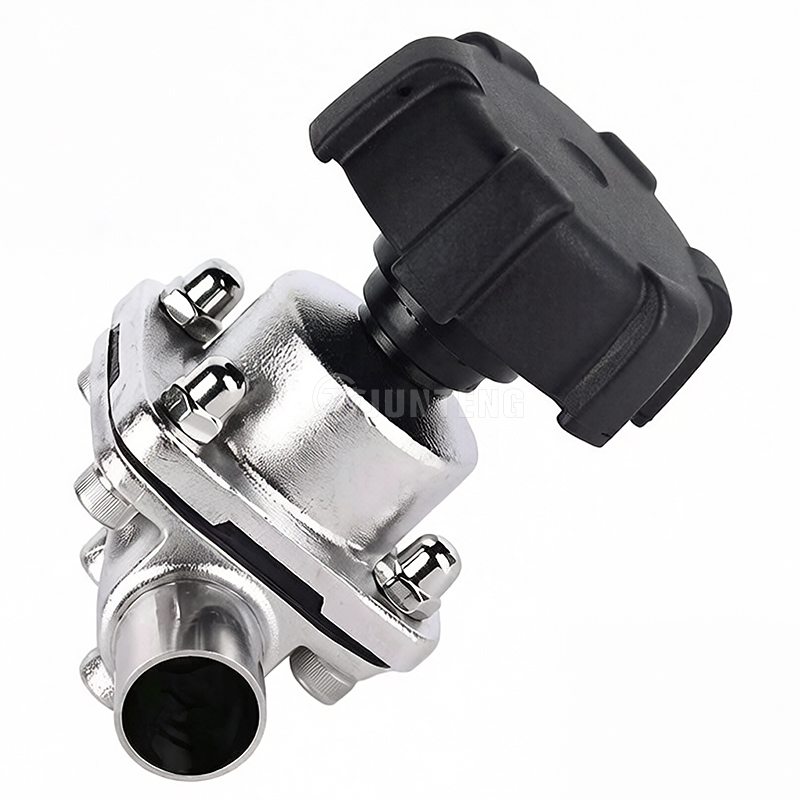

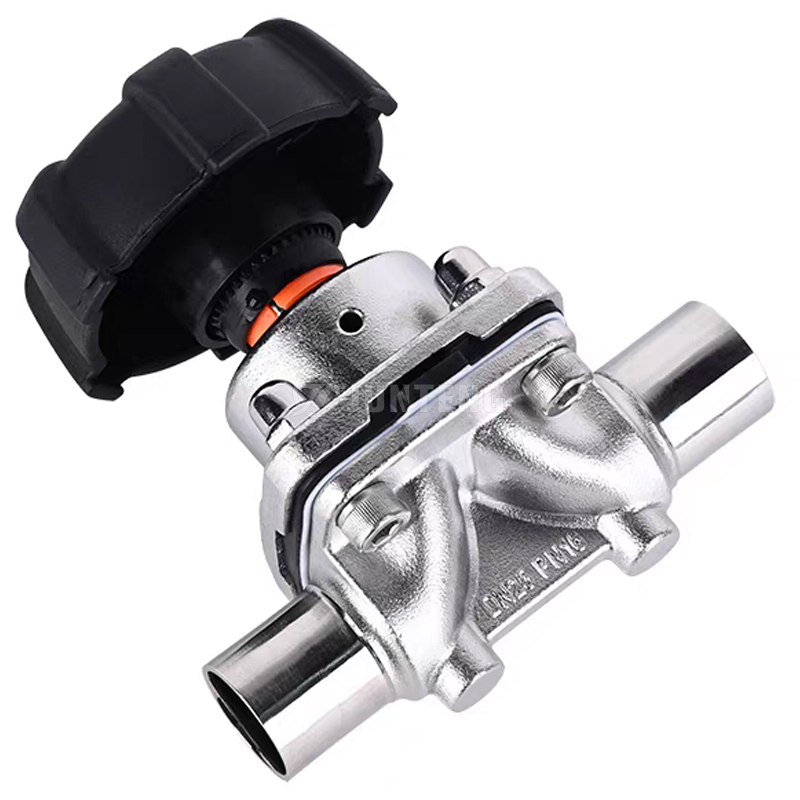

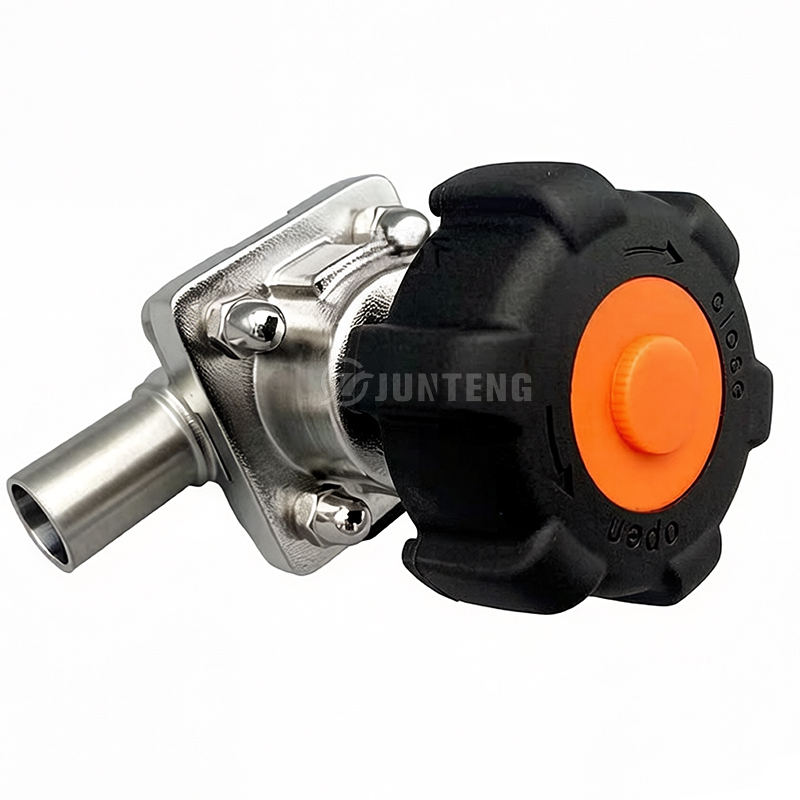

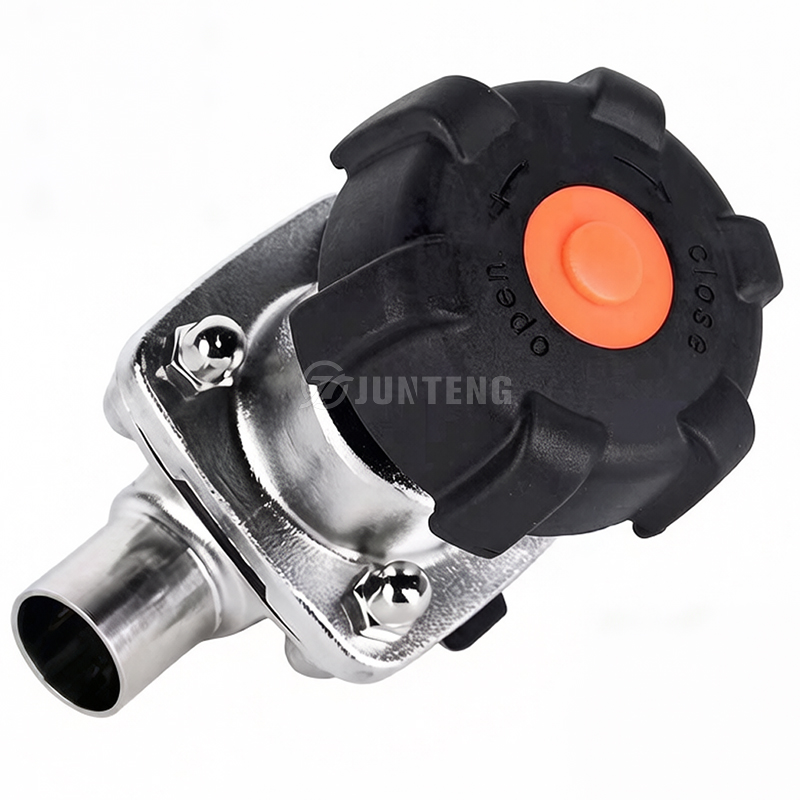

Sanitary Manually Operated 2-Way Diaphragm Valve with Stainless Steel Body and welded end

1. Brief Introduction of Products:

A butt weld straight way diaphragm valve is a fluid control device that uses a flexible diaphragm to start, stop, or regulate flow. It features a straight-through, unobstructed body—meaning it lacks the internal hump or "weir" found in standard diaphragm valves—and has ends that are directly welded onto the piping system.

2. How It Works?

• Sealing Mechanism: When the valve is closed, a compressor pushes the flexible diaphragm down against a central ridge or seat in the valve body.

• Isolation: The diaphragm completely separates the fluid from the valve's stem and actuator. This eliminates the need for traditional stem packing seals, which can trap bacteria and cause leaks.

• Flow Control: Lifting the actuator allows the diaphragm's natural elasticity to flex upward, providing an unobstructed path for fluid with very low pressure drop.

3. Key Design Features:

• Materials: Product-wetted parts are constructed from high-purity, corrosion-resistant stainless steel (typically 316L). The diaphragm itself is usually made of food/pharmaceutical-grade elastomers like EPDM, Silicone, or PTFE.

• No Dead Legs: They are designed to prevent "dead legs" or crevices where product can pool, which is critical to stopping bacteria and mold growth.

• Cleanability: The smooth internal surfaces are engineered to be easily sterilized and cleaned using Clean-in-Place (CIP) and Steam-in-Place (SIP) methods.

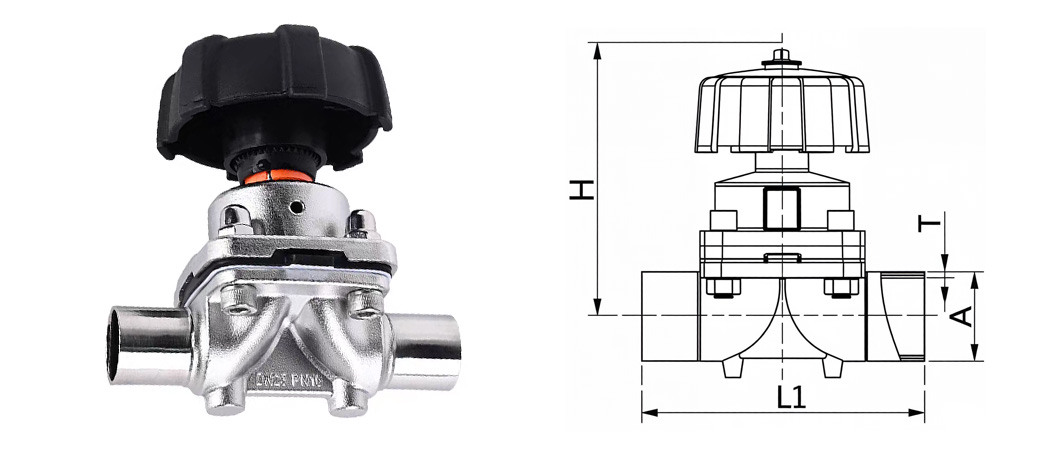

4. Technical Specification:

      3A Standards

This product are also available in DIN, ISO/IDF, SMS, BSP standards. Please feel free to contact us if you need it in other standards!

5. Key Applications and Use Cases:

Because they preserve purity, these valves are an industry standard in:

• Pharmaceuticals and Biotech: Used in the production of sterile drugs, injectables, and vaccines.

• Food and Beverage: Utilized in dairy processing, brewing, and winemaking.

• Cosmetics: Found in manufacturing lines for lotions, creams, and soaps.
